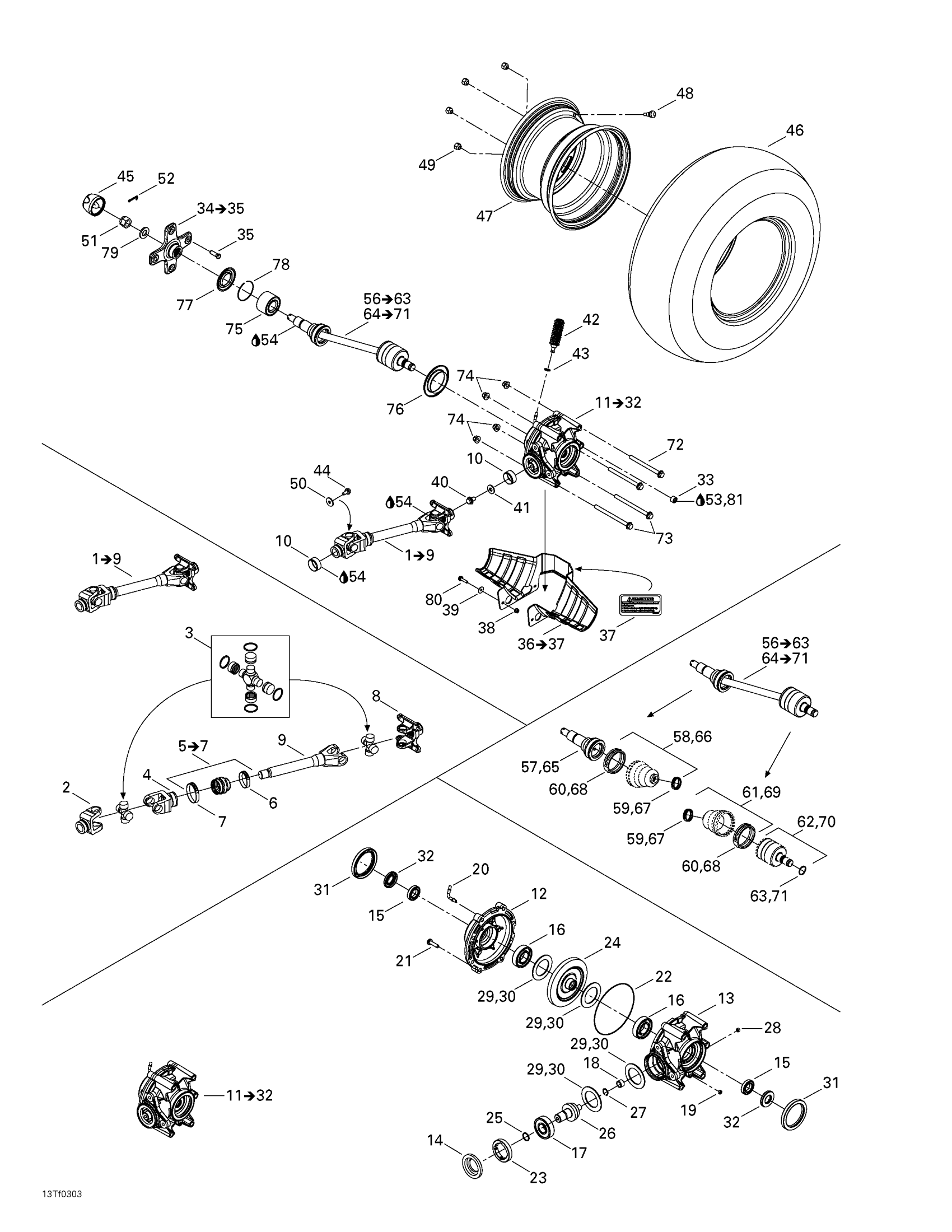

Can-Am Outlander 400, 2003 Drive System, Rear Diagram
#
4
Not Available As Spare Part - Friction Washer
Unavailable
5
Rubber Boot Kit | 4X4 / Includes 3 to 5
703500255
Unavailable
6
Collar | 4X4
705400148
Unavailable
7
Oetiker Gear Clamp 44.0MM | 4X4
293650138
Unavailable
8
DISC JOINT - Call your local BRP dealership
705500351
Unavailable
9
Axle
705500352
Unavailable
10
Wear Ring | 4X4
705400036
Unavailable
11
Differential | Includes 11 - 32.
705500325
Unavailable
12
REAR COVER - Call your local BRP dealership
705500326
Unavailable
13
Differential Carrier
705500324
Unavailable
14
Oil Seal | 4X4
705401481
Unavailable
16
Ball Bearing | 4X4
705401606
Unavailable
17
Ball Bearing | 4X4
705500260
Unavailable
18
Needle Bearing | 4X4
705500261
Unavailable
21
Screw | 4X4
705401601
Unavailable
23
Nut | 4X4
705401603
Unavailable
25
O-Ring | 4X4
705500267
Unavailable
26
GEAR, 10 TEETH - Call your local BRP dealership | 4X4
705500268
Unavailable
28
Protector Plug
705500246
Unavailable
29
Pinion Gear Shim .022"
705500075
Unavailable
30
Shim | 4X4
705401604
Unavailable
31
OIL SEAL - Call your local BRP dealership
715500368
Unavailable
32
Gasket | 4X4
705401618
Unavailable
33
Fill level plug
705500228
Unavailable
34
Wheel Hub Ass'y | Includes 57 - 58.
705500361
Unavailable
35
Wheel Stud M10 X 1.25 | 2X4
250300055
Unavailable
37
WARNING DECAL-ENGLISH-TRAILER - Call your local BRP dealership
704900766
Unavailable
38
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
39
Flat Washer
224060201
Unavailable
40
Flange Screw M10 X 16, Scotch Grip | 4X4
250000060
Unavailable
42
Rubber Bellow | 4X4
705400552
Unavailable
44
Hex. Flange Screw M8 X 16, Scotch Grip
207581646
Unavailable
45
WHEEL CAP - Call your local BRP dealership
705400012
Unavailable
46
Rear Tire | STD
705500441
Unavailable
48
Rim Valve With Cap
705400193
Unavailable
49
Steel Wheel Nut
250100042
Unavailable
50
Washer
211200041
Unavailable
51
Hex. Flange Castellated Nut M18
232291413
Unavailable
53
JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4
779221
Unavailable
54
SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership
293550033
Unavailable
55
Synthetic grease, 400 g
293500010
Unavailable
56
LH Drive Axle | Includes 56 - 63.
705500446
Unavailable
57
CV JOINT - Call your local BRP dealership
705500468
Unavailable
58
BOOT WHEEL KIT - Call your local BRP dealership | Includes 60 to 62
705500469
Unavailable
59
CLAMP - Call your local BRP dealership | 4X4
705400064
Unavailable
60
Clamp | 4X4
705400180
Unavailable
62
PLUNGING JOINT - Call your local BRP dealership
705500427
Unavailable
63
CIRCLIP - Call your local BRP dealership | 4X4
705400042
Unavailable
64
RH Drive Axle | Includes 64 - 71.
705500447
Unavailable
65
CV JOINT - Call your local BRP dealership
705500468
Unavailable
66
BOOT WHEEL KIT - Call your local BRP dealership | Includes 60 to 62
705500469
Unavailable
67
CLAMP - Call your local BRP dealership | 4X4
705400064
Unavailable
68
Clamp | 4X4
705400180
Unavailable
70
PLUNGING JOINT - Call your local BRP dealership
705500427
Unavailable
71
CIRCLIP - Call your local BRP dealership | 4X4
705400042
Unavailable
72
Hex. Flange Screw M10 X 125
230602546
Unavailable
73
HEX. FLANGED SCREW M10 X 140 - Call your local BRP dealership
230604046
Unavailable
74
Hex. Flange Elastic Nut M10
233201436
Unavailable
77
EXTERNAL WEAR SLEEVE - Call your local BRP dealership | 2X4
705501122
Unavailable
80
Hex. Flange Screw M6 X 25
207662544
Unavailable
81
Was 293800013 Loctite 56765
219704454
Unavailable
