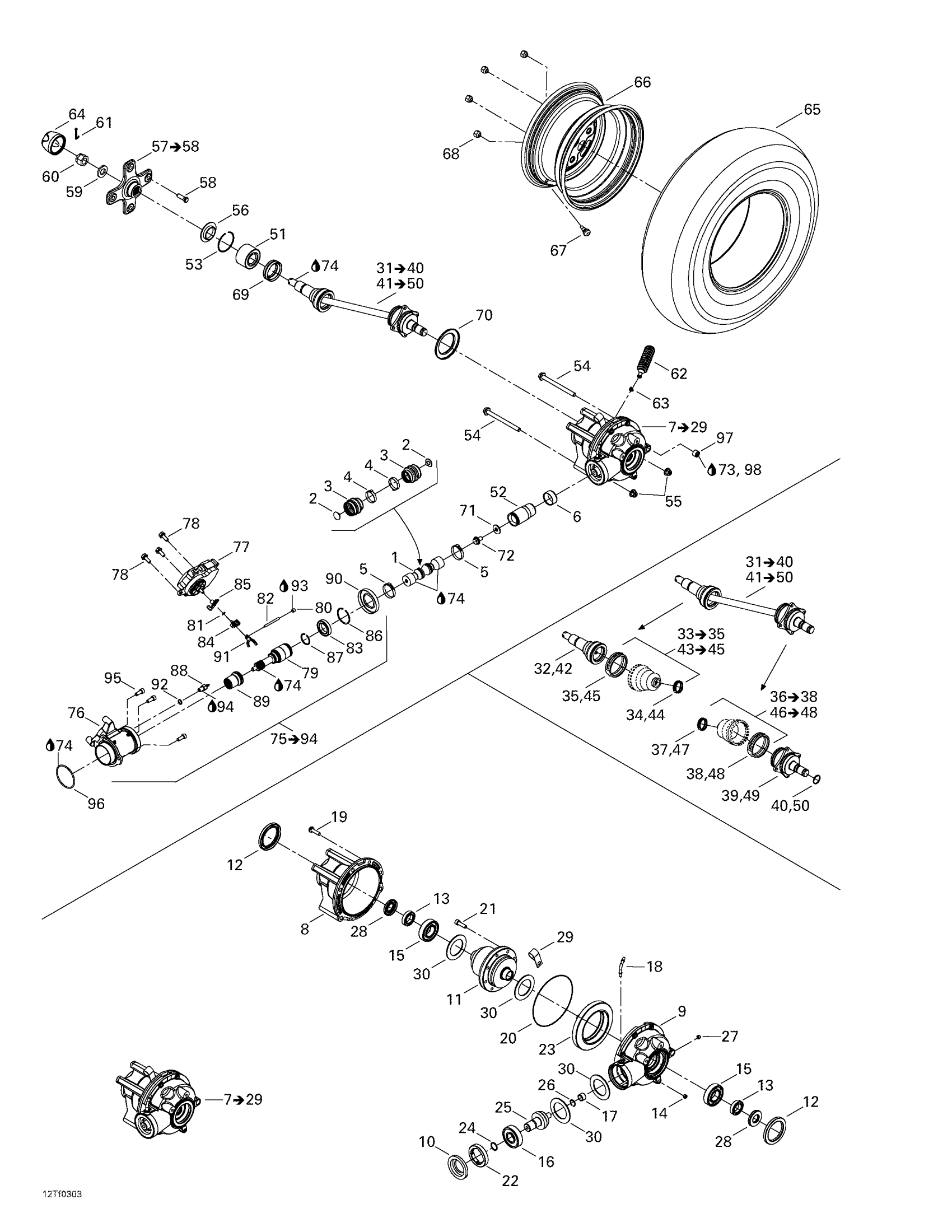

Can-Am Outlander 400, 2003 Drive System, Front Diagram

#

Description
Price

1

Drive axle

705400166

Unavailable

2

Stopper

705400146

Unavailable

3

Rubber Boot Kit | 4X4 / Includes 3 to 5

703500255

Unavailable

4

Collar | 4X4

705400148

Unavailable

5

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.57

6

Wear Ring | 4X4

705400036

$25.35

7

Front differential ass'y | Includes 7 - 30.

705400150

Unavailable

8

Front Cover | 4X4

705400133

Unavailable

9

Differential Carrier

705400131

Unavailable

10

Oil Seal | 4X4

705401481

$18.43

11

Ens Differentiel*Differential Kit | 4X4

703500871

$710.74

12

Oil Seal | 4X4

293250137

Unavailable

13

Ball Bearing | 4X4

293350044

$30.39

14

Drain Plug | 4X4

705500894

$11.06

15

Ball Bearing | 4X4

705401606

$49.20

16

Ball Bearing | 4X4

705500260

$30.39

17

Needle Bearing | 4X4

705500261

Unavailable

18

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

19

Screw | 4X4

705401601

$9.29

20

Seal | 4X4

705500265

$16.12

21

RING GEAR SCREW - Call your local BRP dealership | 4X4

705400101

Unavailable

22

Nut | 4X4

705401603

$36.89

23

GEAR, 36 TEETH - Call your local BRP dealership | 4X4

705400192

Unavailable

24

O-Ring | 4X4

705500267

$6.25

25

GEAR, 10 TEETH - Call your local BRP dealership | 4X4

705500268

Unavailable

26

RETAINING RING - Call your local BRP dealership | 4X4

705500269

Unavailable

27

Protector Plug

705500246

Unavailable

28

Gasket | 4X4

705401618

$17.66

29

CLAMP - Call your local BRP dealership

705600311

Unavailable

30

Shim | 4X4

705401604

$55.35

31

RH CV Joint | Includes 31 - 40.

705400097

Unavailable

32

CV JOINT - Call your local BRP dealership | 4X4

705400154

Unavailable

33

Boot Wheel Kit | 4X4 / Includes 36 to 38

705400127

$41.51

34

CLAMP - Call your local BRP dealership | 4X4

705400064

Unavailable

35

Clamp | 4X4

705400180

Unavailable

36

Boot Differential Kit | 4X4 / Includes 39 to 41

705400126

$41.51

37

CLAMP - Call your local BRP dealership | 4X4

705400064

Unavailable

38

Clamp | 4X4

705400181

Unavailable

39

RH PLUNGING JOINT - Call your local BRP dealership | 4X4

705400156

Unavailable

40

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

41

LH CV Joint | Includes 41 - 50.

705400096

Unavailable

42

CV JOINT - Call your local BRP dealership | 4X4

705400154

Unavailable

43

Boot Wheel Kit | 4X4 / Includes 36 to 38

705400127

$41.51

44

CLAMP - Call your local BRP dealership | 4X4

705400064

Unavailable

45

Clamp | 4X4

705400180

Unavailable

46

Boot Differential Kit | 4X4 / Includes 39 to 41

705400126

$41.51

47

CLAMP - Call your local BRP dealership | 4X4

705400064

Unavailable

48

Clamp | 4X4

705400181

Unavailable

49

PLUNGING JOINT - Call your local BRP dealership | 4X4

705400155

Unavailable

50

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

51

Ball Bearing

293350150

$51.93

52

Front Bushing Shaft Kit | 4X4

703500678

$104.58

53

Circlip

293370019

$4.98

54

Hex. Flange Screw M10 X 125

230602546

$6.08

55

Hex. Flange Elastic Nut M10

233201436

$1.74

56

EXTERNAL WEAR SLEEVE - Call your local BRP dealership | 2X4

705501122

Unavailable

57

Wheel Hub Ass'y | Includes 57 - 58.

705500361

Unavailable

70

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

71

WASHER - Call your local BRP dealership

250200019

Unavailable

72

Hex. Flange Castellated Nut M18

232291413

$2.82

73

Cotter Pin

250400036

$1.74

62

Rubber Bellow | 4X4

705400552

$6.02

63

Tie Wrap 94 mm | 4X4

293750001

$0.83

64

WHEEL CAP - Call your local BRP dealership

705400012

Unavailable

65

Front Tire | Outlander XT

705400213

Unavailable

66

Front Rim

705400160

Unavailable

67

Rim Valve With Cap

705400193

$6.69

68

Steel Wheel Nut

250100042

$2.48

69

Oil Seal | 4X4

293250090

$23.05

70

WEAR SLEEVE - Call your local BRP dealership | 4X4

705400179

Unavailable

71

Flat Washer M10 | 4X4

250200014

$1.17

72

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.60

73

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$13.62

74

Synthetic Grease, 400 G

293550010

Unavailable

75

Not Available As Spare Part - Friction Washer

Unavailable

76

HOUSING - Call your local BRP dealership | 4X4

705400169

Unavailable

77

Actuator Kit | 4X4 / Includes 85 to 88

703500506

$406.12

78

Hex. Flange Screw M8 X 20, Scotch Grip | 4X4

250000137

$3.23

79

UNION SHAFT - Call your local BRP dealership | 4X4

705400917

Unavailable

80

Pressure Screw M8 X 8 | 4X4

206580890

$1.65

81

Circlip

293370031

Unavailable

82

Dowell Pin | 4X4

250400025

$7.37

83

Ball Bearing | 4X4

705400249

$24.58

84

Slider | 4X4

705402139

$46.12

85

Fork

705400176

Unavailable

86

Circlip | 4X4

293370029

$5.52

87

Circlip | 4X4

293370030

$2.75

88

SWITCH - Call your local BRP dealership | 4X4

710000324

Unavailable

89

Coupling Sleeve | 4X4

705400389

$32.28

90

Oil Seal | 4X4

293250138

$23.05

91

Shifter Lever Plate | 4X4

705401553

$16.89

92

Copper Washer

705601628

$4.34

93

Loctite 243, 10 ml

293800060

$20.77

94

Engine oil 5W/30

293600037

Unavailable

95

Socket Head Screw M8 X 20, Scotch Grip

250000136

$3.06

96

O-Ring

293300091

$7.37

97

Fill level plug

705500228

Unavailable

98

Was 293800013 Loctite 56765

219704454

$65.35
