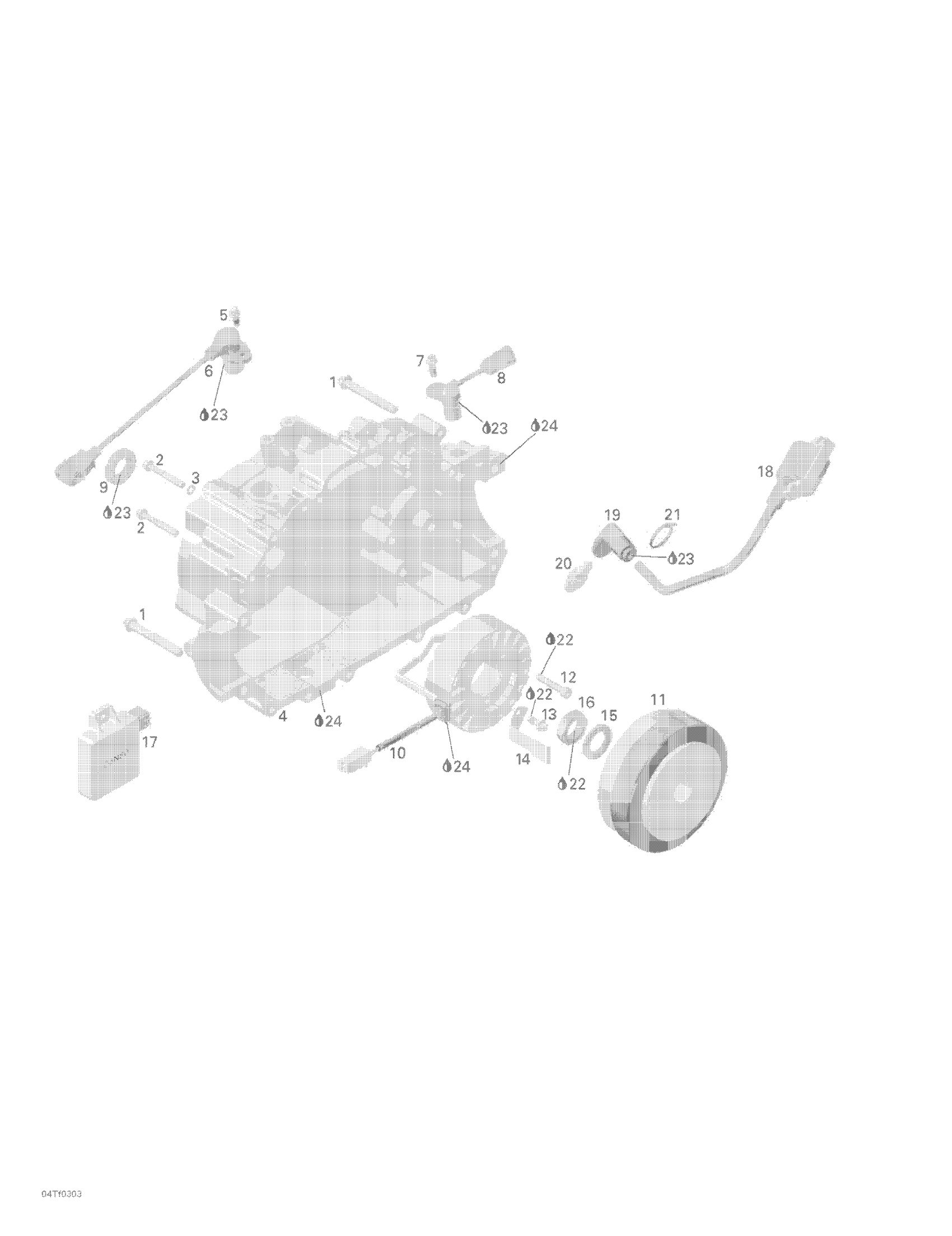

Can-Am Outlander 400, 2003 Magneto Diagram

#

Description
Price

1

Torx Flange Screw M8 x 65

420640333

$4.39

2

SOCKET HEAD SCREW M6 X 45 - Call your local BRP dealership

420241822

Unavailable

3

Seal Washer

420230415

$1.77

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Torx Flange Screw M6 x 16

420641043

Unavailable

6

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$92.92

7

Torx Flange Screw M6 x 16

420641043

Unavailable

8

Camshft Position Sensor Ass'y

420265727

$104.49

9

Oil Seal

420930392

$11.77

10

STATOR ASS'Y - Call your local BRP dealership

420684850

Unavailable

11

MAGNETO FLYWHEEL - Call your local BRP dealership

420684045

Unavailable

12

Socket Head Screw M6 X 35 | Formula Deluxe 583. This part replaces 420241811.

420241814

$1.74

13

Torx Flange Screw M6 x 16

420641043

Unavailable

14

Inner Cable Cover

420251270

$10.98

15

Lock Washer, 22 mm

420945759

$1.55

16

Hex. Nut, M22 X 1.5

420842239

$14.27

17

Amplifier box

420664280

Unavailable

18

IGNITION COIL ASS'Y - Call your local BRP dealership | Includes 57 to 58

420265358

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Spark Plug Connector

420265248

$31.34

20

Spark Plug, NGK DCP-R8E

715900637

$5.66

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Loctite 243, 10 ml

293800060

$20.77

23

Grease, Super Lube

293550030

$24.67

24

Loctite 5910, 300 ml

293800081

$57.99
