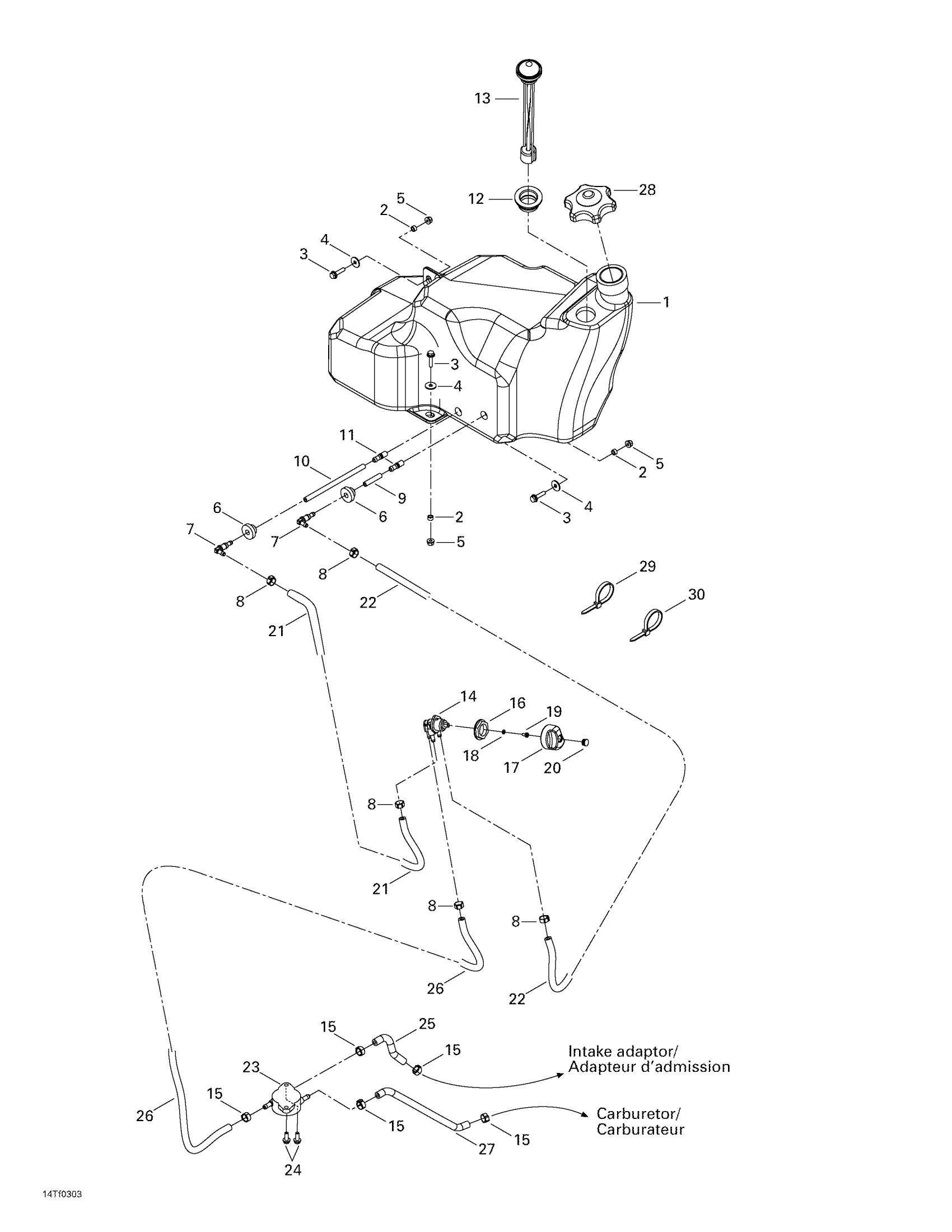

Can-Am Outlander 400, 2003 Fuel Tank Diagram

#

Description
Price

1

FUEL TANK - Call your local BRP dealership

709000062

Unavailable

2

Bushing | DS 650 X

293900104

$5.50

3

Hex. Flange Screw M6 X 25

207662544

$1.49

4

Flat Washer

224061201

$1.49

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

6

Grommet

570045500

$6.79

7

Elbow Male Connector

414580600

$4.29

8

Oetiker Clamp

293650042

$3.19

9

Polyurethane Hose 10000Mm Long

219704410

$57.99

10

Polyurethane Hose 10000Mm Long

219704410

$57.99

11

Fuel Filter

414865700

$10.99

12

Grommet

293720058

$12.49

13

FUEL GAUGE - Call your local BRP dealership

709000083

Unavailable

14

Fuel Valve

275500098

$43.99

15

Spring Clamp

414415200

$1.49

16

HEX. PLASTIC NUT - Call your local BRP dealership

212100009

Unavailable

17

FUEL VALVE KNOB, BLACK - Call your local BRP dealership

275500263

Unavailable

18

Flat Washer 4 mm

234040600

$1.49

19

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

20

Black, Cap

275500241

$3.59

21

Hose

219704549

$51.99

22

Hose

219704549

$51.99

23

Fuel Pump

707200183

$84.99

24

Hex. Flange Screw M6 X 16

210261650

$1.69

25

PULSATION HOSE - Call your local BRP dealership

709000063

Unavailable

26

Hose

219704549

$51.99

27

Hose

219704549

$51.99

28

FUEL CAP - Call your local BRP dealership

709000059

Unavailable

29

Tie-Rap 180 mm

414115200

$1.49

30

Tie Wrap 142 mm

293750002

$1.49
