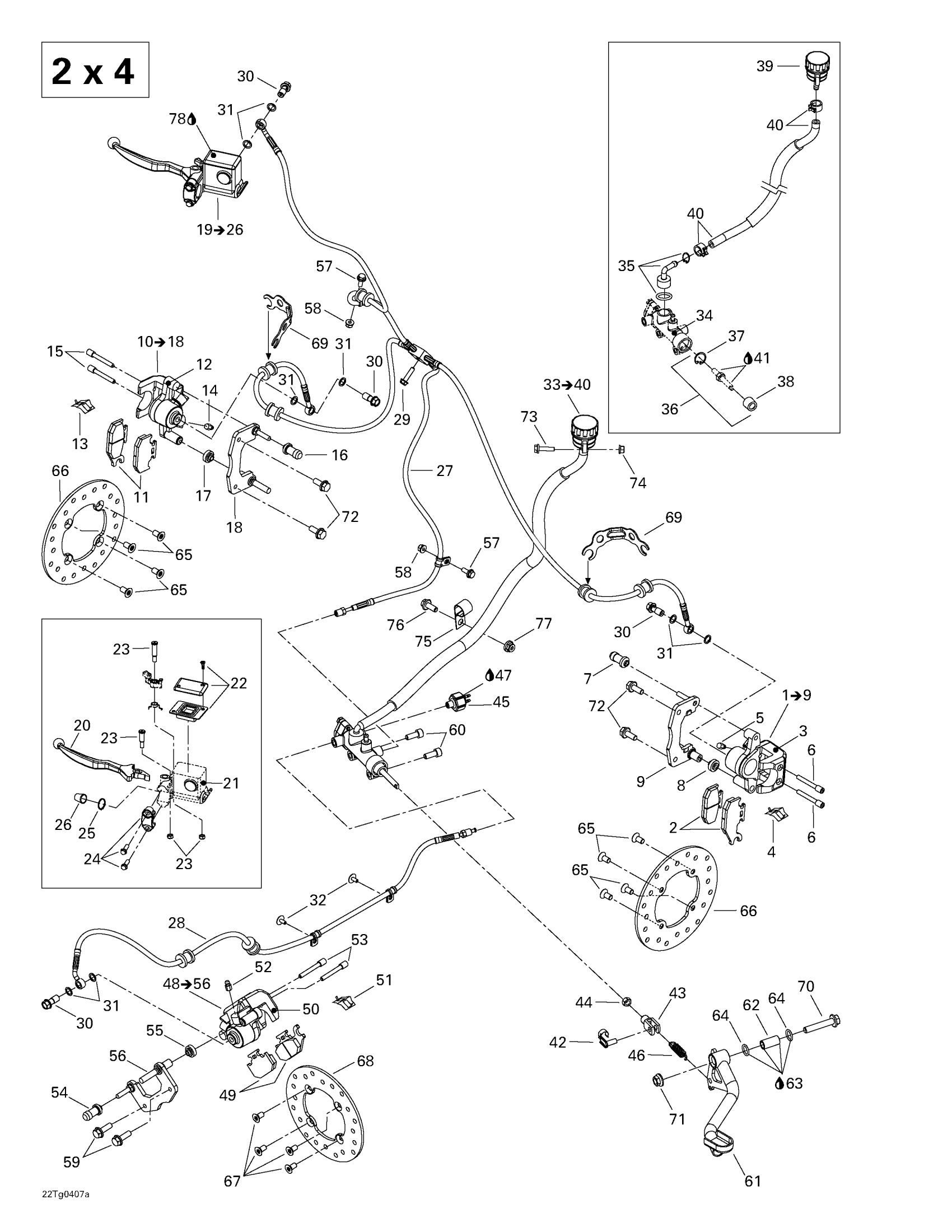

Can-Am Outlander 330/400 STD 2 X 4, 2004 Hydraulic Brake (2 X 4) Diagram

#

Description
Price

1

LH CALIPER - Call your local BRP dealership | Includes 10 to 18

705600307

Unavailable

2

Brake Pad Kit

705600014

$49.39

3

Piston Set

705600078

$36.89

4

Spring

705600079

$14.37

5

Bleeding Screw

705600080

$15.22

6

Pin Set (2)

705600081

$19.20

7

Compression Boot

705600082

$10.14

8

Compression Boot

705600083

$10.14

9

LH CALIPER SUPPORT - Call your local BRP dealership

705600298

Unavailable

10

RH CALIPER - Call your local BRP dealership | Includes 1 to 9

705600306

Unavailable

11

Brake Pad Kit

705600004

$49.97

12

Piston Set

705600078

$36.89

13

Spring

705600079

$14.37

14

Bleeding Screw

705600080

$15.22

15

Pin Set (2)

705600081

$19.20

16

Compression Boot

705600082

$10.14

17

Compression Boot

705600083

$10.14

18

RH Caliper Support

705600299

Unavailable

19

Front Master Cylinder | Includes 19 to 26

705600844

$212.28

20

Lever Arm

705600243

$50.74

21

PISTON KIT - Call your local BRP dealership

705600244

Unavailable

22

Cap Set

705600084

$23.05

23

Brake Lever Bolt Kit

705600246

$14.75

24

BRACKET KIT - Call your local BRP dealership

705600087

Unavailable

25

CIRCLIP - Call your local BRP dealership

705600088

Unavailable

26

COMPRESSION BOOT - Call your local BRP dealership

705600089

Unavailable

27

Front Hose

705600352

Unavailable

28

Rear Hose

705600373

Unavailable

29

Hex. Flange Forming Screw M6 X 25

210262550

$1.64

30

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.91

31

Copper Washer

705601628

$4.34

32

Pop Rivet 3/16"

390406500

$0.70

33

Rear Master Cylinder | Includes 33 to 40

705600254

$212.28

34

Piston Set

705600255

Unavailable

35

PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership

705600064

Unavailable

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Circlip

705600068

Unavailable

38

Compression Boot

705600090

Unavailable

39

Oil Tank, Brake Fluid Reservoir

705600182

$36.89

40

OIL HOUSING HOSE - Call your local BRP dealership

705600262

Unavailable

41

Not Available As Spare Part - Friction Washer

Unavailable

42

Pin Kit

219702305

$26.62

43

Yoke

705600100

Unavailable

44

Hex. Nut M8

232081414

$0.60

45

Interrupteur *Brake Switch

710001345

Unavailable

46

BREAK PEDAL SPRING - Call your local BRP dealership

705600098

Unavailable

47

Was 293800013 Loctite 56765

219704454

$65.35

48

REAR CALIPER - Call your local BRP dealership | Includes 54 - 62.

705600263

Unavailable

49

Brake Pad Kit

705600014

$49.39

50

Piston Set

705600295

Unavailable

51

Spring

705600079

$14.37

52

Bleeding Screw

705600080

$15.22

53

Pin Set (2)

705600081

$19.20

54

Compression Boot

705600082

$10.14

55

Compression Boot

705600083

$10.14

56

LH CALIPER SUPPORT - Call your local BRP dealership

705600298

Unavailable

57

Hex. Flange Screw M6 X 16

207661644

$0.61

58

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

59

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.68

60

Socket Head Screw M8 X 20, Scotch Grip

250000136

$3.06

61

BRAKE PEDAL - Call your local BRP dealership

705600265

Unavailable

62

SPACER - Call your local BRP dealership

705600283

Unavailable

63

Synthetic Grease, 400 G

293550010

Unavailable

64

O-RING - Call your local BRP dealership

293300053

Unavailable

65

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

66

Disk Brake

705600604

$56.89

67

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

68

Disk Brake

705600604

$56.89

69

Hose Support

705600284

Unavailable

70

Hex. Flange Screw M10 X 55

207605544

$2.78

71

Hex. Flange Elastic Nut M10

233201414

$1.26

72

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

73

Hex. Flange Screw M6 X 25

207662544

$0.53

74

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

75

CLAMP - Call your local BRP dealership

705600311

Unavailable

76

Hex. Flange Screw M8 X 20

207682044

$0.92

77

Hex. Flange Elastic Nut M8

233281414

$1.14

78

BRAKE FLUID, SRF, DOT 4 - Call your local BRP dealership

293600063

Unavailable

HYDRAULIC OIL - Call your local BRP dealership

293600131

Unavailable
