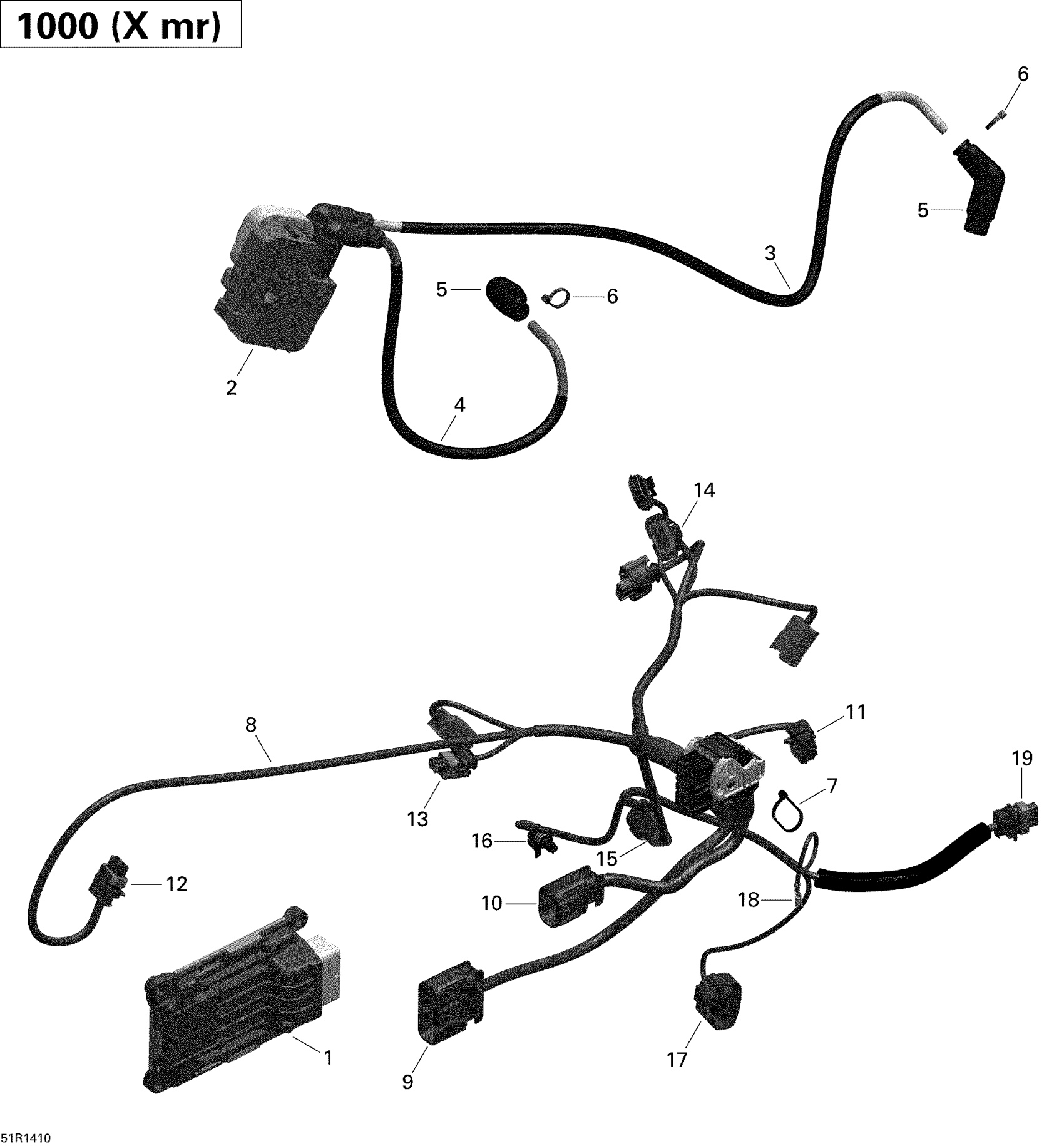

Can-Am Outlander 1000EFI XMR, 2014 Engine Harness And Electronic Module Diagram

#

Description

Price

1

ECM CONNECTOR - Call your local BRP dealership

420266966

Unavailable

2

Ignition Coil

278001546

$158.99

3

Spark Plug Cable, 790 mm, Rear

420665333

$60.99

4

Spark Plug Cable, 790 mm, Rear

420665333

$60.99

5

Spark Plug Connector

420265248

$31.99

6

Tie Rap

420866710

$5.49

7

Tie Wrap 94 mm | 4X4

293750001

$1.03

8

Wiring Harness | Includes 8 to 19

420666503

$439.99

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Male Housing, 2 Circuits

278001005

$19.49

12

Male Housing, 3 Circuits

278000997

$19.49

13

Male Housing, 2 Circuits

278001005

$19.49

14

Housing Connector, 3 Circuits

278001829

$21.99

15

Male Housing

278002378

$13.99

16

Male Housing, 1 Circuit

278001012

$16.86

17

Male Housing, 4 Circuits

710000329

$15.36

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Male Housing, 3 Circuits

278000997

$19.49
