Description

Price

1

Hex. Flange Screw M10 X 25

207602546

Unavailable

2

Hex. Flange Screw M6 X 16

207661644

Unavailable

3

Hex. Flange Screw M8 X 20

207682046

Unavailable

4

Carriage Bolt, M8 X 20

207782044

Unavailable

5

Hex. Flange Elastic Nut M10

233201436

Unavailable

6

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

7

Hex. Flange Elastic Nut M8

233281414

Unavailable

8

Hex. Elastic Flange Nut M8

233281416

Unavailable

9

Threaded Insert M6 X 1.0

250100242

Unavailable

10

Insert Half Hex Body M8 x 1.25

293450307

Unavailable

12

Rear Pillar

705210818

Unavailable

13

SUPPORT KIT - Call your local BRP dealership

703500852

Unavailable

14

FRAME TAIL, BLACK - Call your local BRP dealership

705202295

Unavailable

15

Master Cylinder Bracket

705203874

Unavailable

16

Rear Support

705203301

Unavailable

17

Flat Washer 10 mm

234001410

Unavailable

18

Footrest Support

705210817

Unavailable

19

Trailer Hitch

715005186

Unavailable

20

Frame, Black

705203601

Unavailable

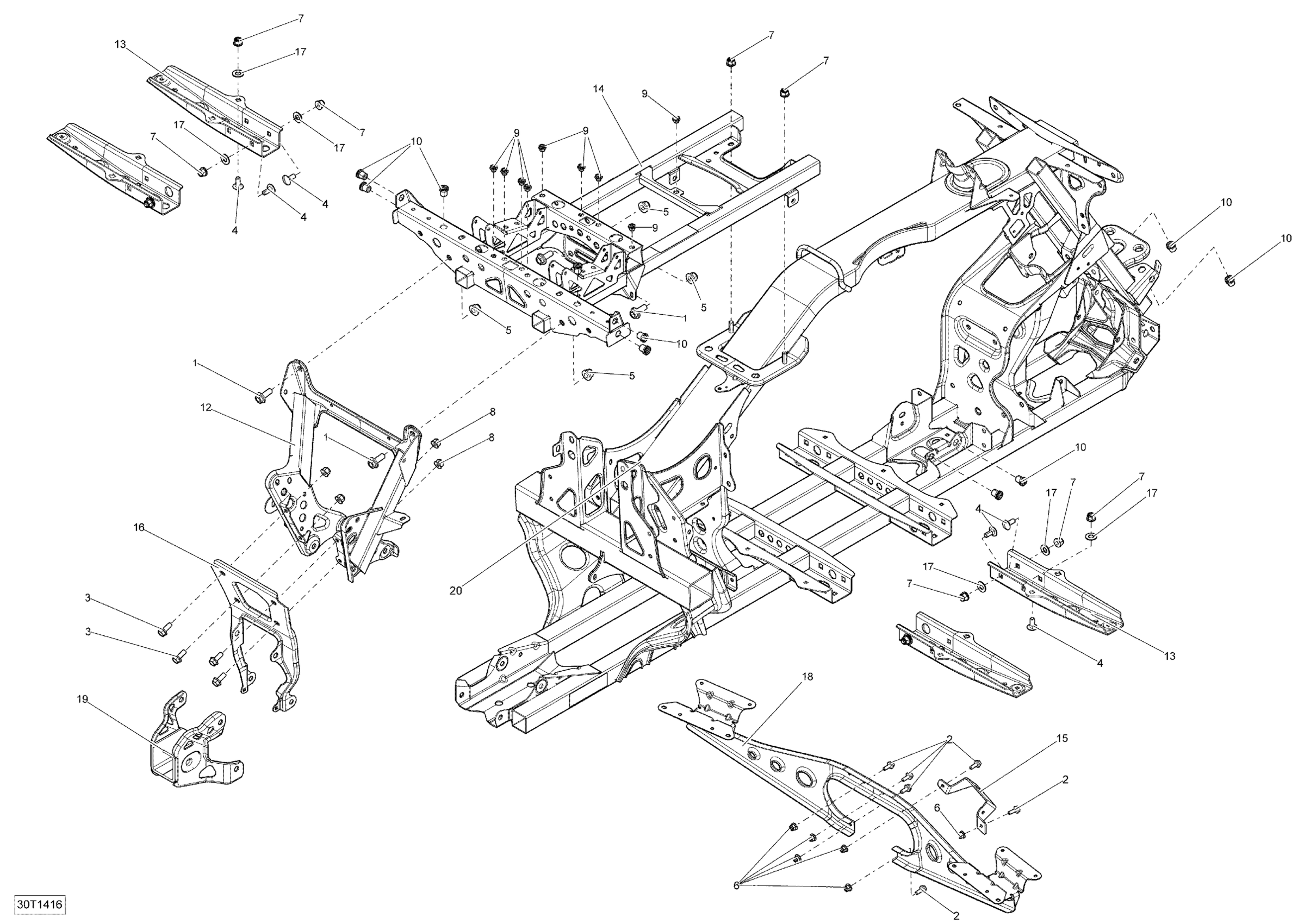

Can-Am Outlander 1000EFI XMR, 2014 09- Frame Diagram

Hex. Flange Screw M10 X 25

Hex. Flange Screw M6 X 16

Hex. Flange Screw M8 X 20

Carriage Bolt, M8 X 20

Hex. Flange Elastic Nut M10

Hex. Flange Elastic Nut M6 x 1.0

Hex. Flange Elastic Nut M8

Hex. Elastic Flange Nut M8

Threaded Insert M6 X 1.0

Insert Half Hex Body M8 x 1.25

Rear Pillar

SUPPORT KIT - Call your local BRP dealership

FRAME TAIL, BLACK - Call your local BRP dealership

Master Cylinder Bracket

Rear Support

Flat Washer 10 mm

Footrest Support

Trailer Hitch

Frame, Black
