- Outlander 1000EFI XMR, 2013
10- Electrical System

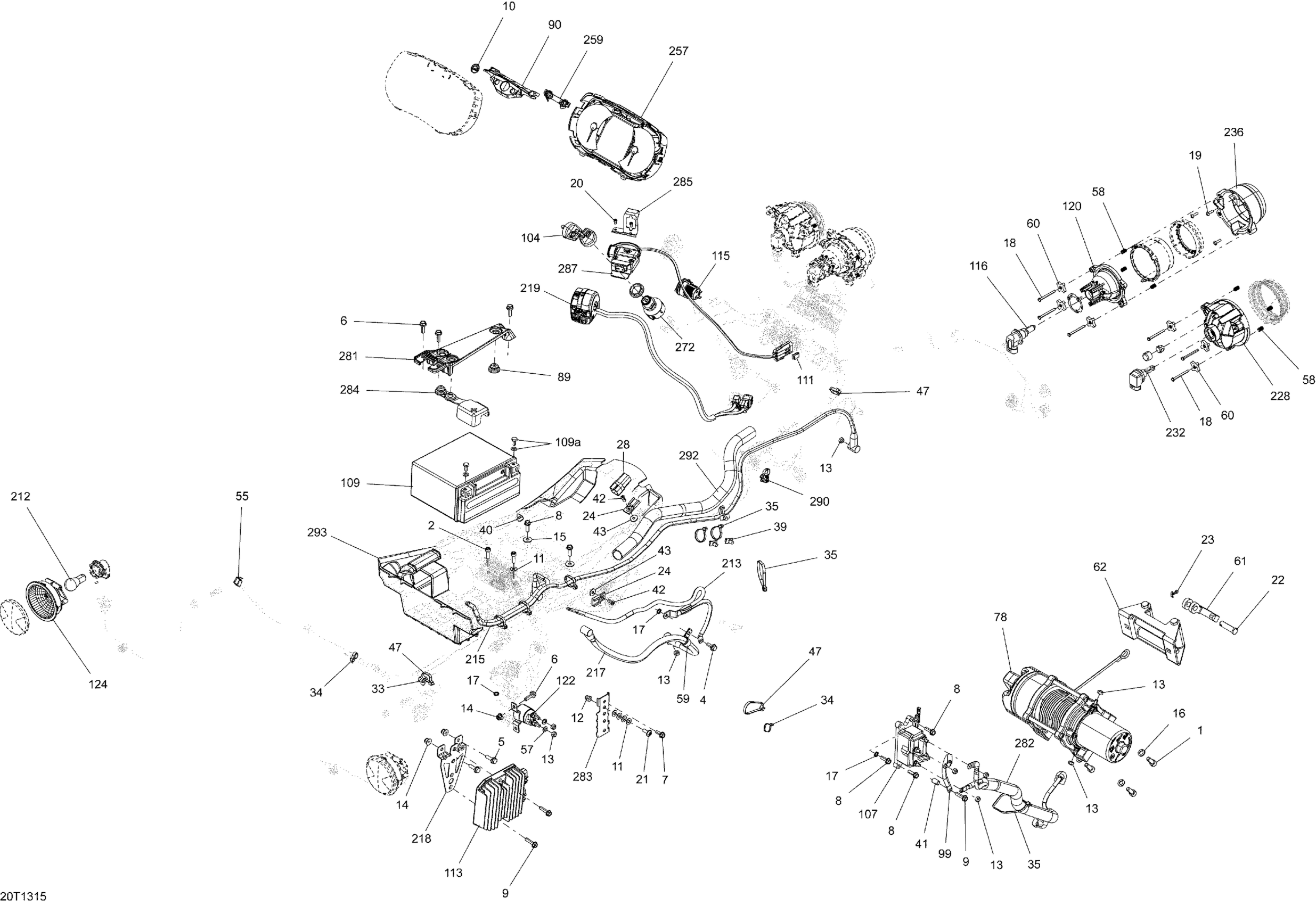

Can-Am Outlander 1000EFI XMR, 2013 10- Electrical System Diagram
#
1
Socket Head Screw M8 X 20
205082044
Unavailable
2
Socket Head Screw M6 X 20, Scotch Grip
205562044
Unavailable
4
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
5
Hex. Flange Screw M6 X 20
207662044
Unavailable
6
Hex. Flange Screw M6 X 20
207662084
Unavailable
7
Hex. Flange Screw M6 X 16
210261650
Unavailable
8
Hexagonal Head Screw
210262050
Unavailable
9
SCREW-FORMING HEX.HD.FL.GM6174M - Call your local BRP dealership
210263580
Unavailable
10
BRP Logo 20MM x 2MM | XTP
516006224
Unavailable
11
Flat Washer
224061121
Unavailable
12
Domed Nut M6
232361493
Unavailable
13
Elastic Stop Nut M6
232561414
Unavailable
14
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
15
Stainless Steel Flat Washer
234062670
Unavailable
16
Lock Washer 8 mm
234181401
Unavailable
17
External Serrated Lock Washer 6 mm
234461608
Unavailable
18
Hex. Screw K40 X 45
250000718
Unavailable
19
Phillips Screw K40 X 16
250000723
Unavailable
20
Hex. Cap Screw 6-32 X 1/4" | XT Models
250000153
Unavailable
21
Torx Screw M6 X 16
250000223
Unavailable
22
Clevis Pin
250400021
Unavailable
23
Cotter Pin
250400022
Unavailable
24
Clip
270000141
Unavailable
28
Housing
710003006
Unavailable
33
Mount Dart
293730040
Unavailable
34
Tie Wrap 94 mm | 4X4
293750001
Unavailable
35
Tie Wrap 368 mm
293750008
Unavailable
39
Tie-Rap 173 mm
293750009
Unavailable
40
Rubber Bumper
293830005
Unavailable
41
Sleeve
293900078
Unavailable
42
Pop Rivet 3/16"
390402300
Unavailable
43
Washer | DS 650 X
391301600
Unavailable
47
Tie-Rap 180 mm
414115200
Unavailable
55
Clip
414227300
Unavailable
57
Lock Washer Helical M6
234161601
Unavailable
58
Spring
517168600
Unavailable
59
Open Clamp
518321570
Unavailable
60
Handle
572106600
Unavailable
61
Winch Hook Kit
705014949
Unavailable
62
Fairlead_Roller Kit
715007699
Unavailable
78
WINCH - Call your local BRP dealership | Europe
705008546
Unavailable
89
Stopper Rubber
705014429
Unavailable
90
Cap Support | XTP
705004366
Unavailable
99
CABLE_NEGATIVE - Call your local BRP dealership
710003003
Unavailable
104
Black, Electronic Key
710000817
Unavailable
107
Winch Solenoid | XT Models
710001000
Unavailable
109
Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73
410301203
Unavailable
109a
Battery Bolt Kit
250000282
Unavailable
111
Clip
710000992
Unavailable
113
Voltage Regulator | XT, XTP, LTD
710001191
Unavailable
115
DC Outlet
710001248
Unavailable
120
High Beam Ass'y | Includes 11 to 12
710002525
Unavailable
116
Halogen Bulb
415129249
Unavailable
122
Starter Relay
710007777
Unavailable
124
Tail Light Ass'y | Includes 32 to 33
710001645
Unavailable
212
Bulb
520000758
Unavailable
213
Ground Cable
710004382
Unavailable
215
Connector Ass'y
710004375
Unavailable
217
POSITIVE CABLE - Call your local BRP dealership
710001750
Unavailable
218
Rectifier Support
710001752
Unavailable
219
Switch Kit | XT, XTP, XMR, LTD
703500920
Unavailable
228
Low Beam | Includes 54 to 55
710006177
Unavailable
232
Bulb 12V 55W
715900141
Unavailable
236
RH High Front Housing
710002291
Unavailable
236
LH High Front Housing
710002292
Unavailable
257
Speedometer Ass'y
710004545
Unavailable
259
Speedometer Button | XTP
415129355
Unavailable
272
Ignition Switch
710008400
Unavailable
281
Fixation Plate
710002404
Unavailable
282
Winch Cables
710004378
Unavailable
283
BRACKET - Call your local BRP dealership
710002567
Unavailable
284
Battery Cable Cap
710006729
Unavailable
285
Winch Switch Support | XT, XTP, XMR, LTD,
710002631
Unavailable
287
Winch Switch | XT, XTP, XMR, LTD,
710002724
Unavailable
290
Tie-Rap Clip
710002896
Unavailable
292
Protective Tubing
710003260
Unavailable
293
Battery Support
710006561
Unavailable
