- Outlander 1000EFI XMR, 2013
09- Body And Accessories

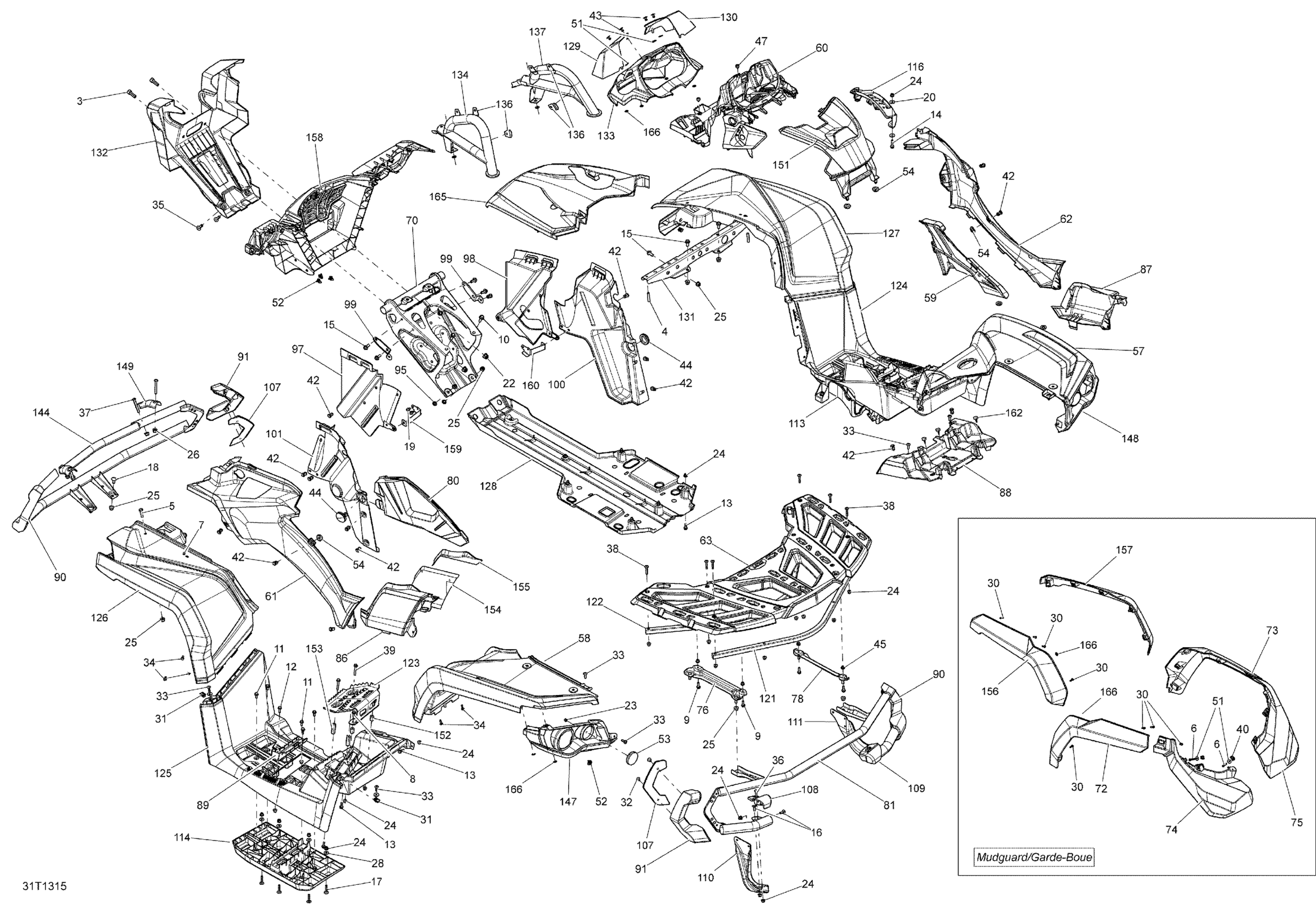

Can-Am Outlander 1000EFI XMR, 2013 09- Body And Accessories Diagram
#
3
Socket Screw M10 x 30 | XT
205003044
Unavailable
4
Hex. Flange Screw M8 X 16, Scotch Grip
207581644
Unavailable
5
Hex. Cap Screw M8 X 30
207183054
Unavailable
6
Hex. Cap Screw M4 X 25
207342544
Unavailable
7
Hex. Flange Screw, Scotch Grip
207551634
Unavailable
8
Hex. Flange Screw M6 X 20, Scotch Grip
207562034
Unavailable
9
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
10
Hex. Flange Screw M8 X 25, Scotch Grip
207582544
Unavailable
11
Hex. Flange Screw M6 X 16
207661654
Unavailable
12
Hex. Flange Screw M6 X 20
207662034
Unavailable
13
Hex. Flange Screw M6 X 20
207662084
Unavailable
14
Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X
207563034
Unavailable
15
Hex. Flange Screw M8 X 20
207682044
Unavailable
16
Carriage Bolt M6 X 20 | DS 650 X
207762044
Unavailable
17
Carriage Bolt M6 X 35
207763554
Unavailable
18
Carriage Bolt, M8 X 20
207782044
Unavailable
19
Hex. Flange Screw M6 X 10
210261040
Unavailable
20
Flat Washer
224061201
Unavailable
22
Hex. Flange Elastic Nut M10
233201434
Unavailable
23
Flange Elastic Nut M5
233251434
Unavailable
24
Flange Elastic Nut M6
233261434
Unavailable
25
Hex. Flange Elastic Nut M8
233281434
Unavailable
26
Elastic Flange Nut M8
233281464
Unavailable
28
Flat Washer 6 mm
234062410
Unavailable
30
Hex. Screw K40 X 13
241141340
Unavailable
31
Panel Nut M6 X 1.0
250100198
Unavailable
32
Torx Screw K50 X 16
250000720
Unavailable
33
Torx Screw M6 X 20
250000722
Unavailable
34
Torx Screw K50 X 16
250000720
Unavailable
35
Hex Torx Truss M8 X30
250000745
Unavailable
36
Stainless, Torx Screw M6 X 30
250000842
Unavailable
37
Torx Screw M8 X 55
250000535
Unavailable
38
Torx Screw M6 X 35
250000541
Unavailable
39
Hex. Flange Screw M6 X 45
207664536
Unavailable
40
Extruded Panel Nut M4 X 0.7
250100143
Unavailable
42
Tuflok Plastic Rivet
293150230
Unavailable
43
Pop Rivet 3/16" | DS 650 X
293150104
Unavailable
44
Rubber Cover
293250242
Unavailable
45
Threaded Insert M6 X 1.0
250100242
Unavailable
47
Rubber Bumper
293830005
Unavailable
51
Washer
517124300
Unavailable
52
Edge Clip
517302785
Unavailable
53
Red Reflector
705011221
Unavailable
54
Grommet
705003264
Unavailable
57
Black RH Rear Fender Kit | Includes 7 to 7a, Black North America
705005221
Unavailable
57
RH Rear Fender Kit, Black | Includes 7 to 7a, Black
715001818
Unavailable
57
CAMO RH REAR FENDER KIT - Call your local BRP dealership | Includes 7 to 7a, Camo
705005227
Unavailable
57
RH REAR FENDER KIT, CAMO - Call your local BRP dealership | Int'l
715001835
Unavailable
58
Black LH Rear Fender Kit | Includes 6 to 6c, Black
715001798
Unavailable
58
CAMO LH REAR FENDER KIT - Call your local BRP dealership
715001800
Unavailable
59
Engine Cover
705003444
Unavailable
60
Dash Support Kit
715001552
Unavailable
61
Yellow, LH Lateral Panel | Yellow
705003446
Unavailable
61
PANEL_BODY LH B-005 - Call your local BRP dealership | Camo
705005238
Unavailable
62
Yellow, RH Lateral Panel | Yellow
705009019
Unavailable
62
PANEL_BODY RH B-005 - Call your local BRP dealership | Camo
705009118
Unavailable
63
Luggage Rack Kit
715001852
Unavailable
70
Front Bumper Support
705016893
Unavailable
72
LH Rear Mudguard
705003918
Unavailable
73
RH Rear Mudguard
705003920
Unavailable
74
LH Rear Mudguard, Part 2
705003921
Unavailable
75
RH Rear Mudguard, Part 2
705003922
Unavailable
76
LH Support
705007277
Unavailable
78
RH Support
705007278
Unavailable
80
Deflector_Body Panel Kit
715007008
Unavailable
81
Black Bumper | XT
705005019
Unavailable
86
LH Extension Panel
715001897
Unavailable
87
RH Extension Panel
705004348
Unavailable
88
REAR CENTER PANEL KIT - Call your local BRP dealership
715001854
Unavailable
89
LH Footrest
705004352
Unavailable
89
RH Footrest
705005395
Unavailable
90
Cap (Front LH) (Rear RH) | XT
705004409
Unavailable
91
Cap (Front RH) (Rear LH) | XT
705004410
Unavailable
95
Ring
705004497
Unavailable
97
LH Front Inner Fender
705011465
Unavailable
98
RH Front Inner Fender
705011463
Unavailable
99
Lower Fender Support
705004565
Unavailable
100
RH Rear Inner Fender
705011462
Unavailable
101
LH Rear Inner Fender
705013111
Unavailable
107
Bracket Cover | XT
705004987
Unavailable
108
LH Bracket | XT
705005094
Unavailable
109
RH Bracket | XT
705005095
Unavailable
110
LH Rear Bracket | XT
705008164
Unavailable
111
RH Rear Bracket | XT
705008165
Unavailable
113
RH Structural Footboard
705011542
Unavailable
114
LH Structural Footboard
705011540
Unavailable
116
Shifter Gate | 1000 North America, 1000 International
705011544
Unavailable
121
Sectional Bent Tube
705016640
Unavailable
122
Bent Sectional Tube
705016092
Unavailable
123
Footrest
705005890
Unavailable
124
RH Footboard
705005977
Unavailable
125
LH Footboard
705005978
Unavailable
126
Black LH Front Fender Kit
715002302
Unavailable
126
CAMO LH FRONT FENDER KIT - Call your local BRP dealership
715002305
Unavailable
127
Black RH Front Fender Kit
715001826
Unavailable
127
CAMO RH FRONT FENDER KIT - Call your local BRP dealership
715001830
Unavailable
128
Protective Plate Kit
715002374
Unavailable
129
LH Air Deflector
705006134
Unavailable
130
RH Air Deflector
705006135
Unavailable
131
Front Bumper Center Support
705006220
Unavailable
132
Front Guard Plate | North America, International
705006299
Unavailable
133
Gage Support
705006373
Unavailable
134
LH RADIATOR SUPPORT - Call your local BRP dealership
705007878
Unavailable
136
Not Available As Spare Part - Friction Washer
Unavailable
137
RH Radiator Support
705007879
Unavailable
144
Deep Black, Front Bumper
705014128
Unavailable
147
LH Rear Facia | North America, International
705006643
Unavailable
148
RH Rear Facia | North America, International
705006650
Unavailable
149
Black Upper Bracket
705006691
Unavailable
151
Dash Kit
715006098
Unavailable
152
Coupling Nut, Short
705006818
Unavailable
153
Coupling Nut, Large
705006819
Unavailable
154
Heat Shield
705006870
Unavailable
155
Heat Shield
705006871
Unavailable
156
LH Mud Guard
705006988
Unavailable
157
RH Mud Guard
705006989
Unavailable
158
Fascia
705012822
Unavailable
159
LH Inner Fender Bracket
705007140
Unavailable
160
RH Inner Fender Bracket
705007141
Unavailable
162
Rubber Stopper
708000759
Unavailable
165
Yellow Hood Kit
708301154
Unavailable
165
CAMO HOOD KIT - Call your local BRP dealership
708301155
Unavailable
166
Push Nut
732610072
Unavailable
