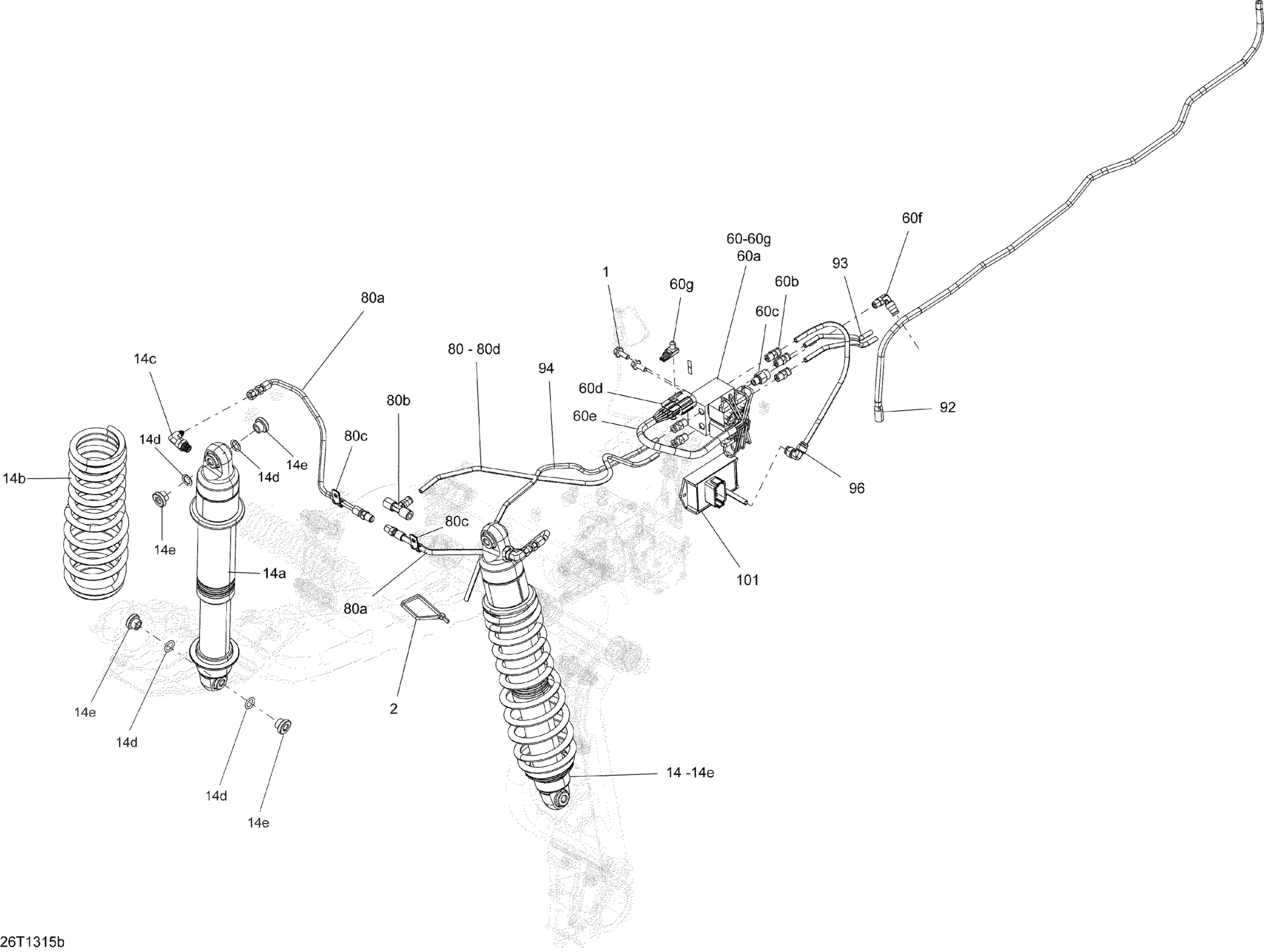

Can-Am Outlander 1000EFI XMR, 2013 Rear Suspension XMR Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 16

207661644

$0.61

2

Tie Wrap 368 mm

293750008

$0.85

14

Not Available As Spare Part - Friction Washer

Unavailable

14a

REAR SHOCK ASS'Y - Call your local BRP dealership | XMR Black

706001202

Unavailable

14b

SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership

706001056

Unavailable

14c

Elbow 90° | XMR

706001200

$46.12

14d

O-Ring Bushing

715900209

$13.52

14e

Interior Bushing | XTP

715900210

$14.75

14

Not Available As Spare Part - Friction Washer

Unavailable

14a

REAR SHOCK ASS'Y - Call your local BRP dealership | XMR Black

706001202

Unavailable

14b

Black Rear Spring

706002785

Unavailable

14c

Elbow 90° | XMR

706001200

$46.12

14d

O-Ring Bushing

715900209

$13.52

14e

Interior Bushing | XTP

715900210

$14.75

60

PRESSURE COLLECTOR ASS'Y - Call your local BRP dealership | XMR

706001368

Unavailable

60a

Not Available As Spare Part - Friction Washer

Unavailable

60b

Connector

706000869

$33.05

60c

Check Valve

706000860

$39.97

60d

Housing

710001927

$8.57

60e

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

60f

Elbow 90°

706000928

$26.12

60g

Holder | XMR

710002006

$3.68

80

REAR SHOCK DISTRIBUTOR ASS'Y - Call your local BRP dealership

706001341

Unavailable

80a

Not Available As Spare Part - Friction Washer

Unavailable

80b

T Fitting

706000946

$36.89

80c

Clamp

293650256

$4.36

80d

Not Available As Spare Part - Friction Washer

Unavailable

92

Polyurethane Hose 10000Mm Long

219704410

$46.12

93

Hose 4.32Mm 3000Mm Long

219704415

$44.17

94

Hose 4.32Mm 3000Mm Long

219704415

$44.17

96

Hose Ass'y

706001216

$36.89

101

Module *Module | XMR

710004402

$406.12
