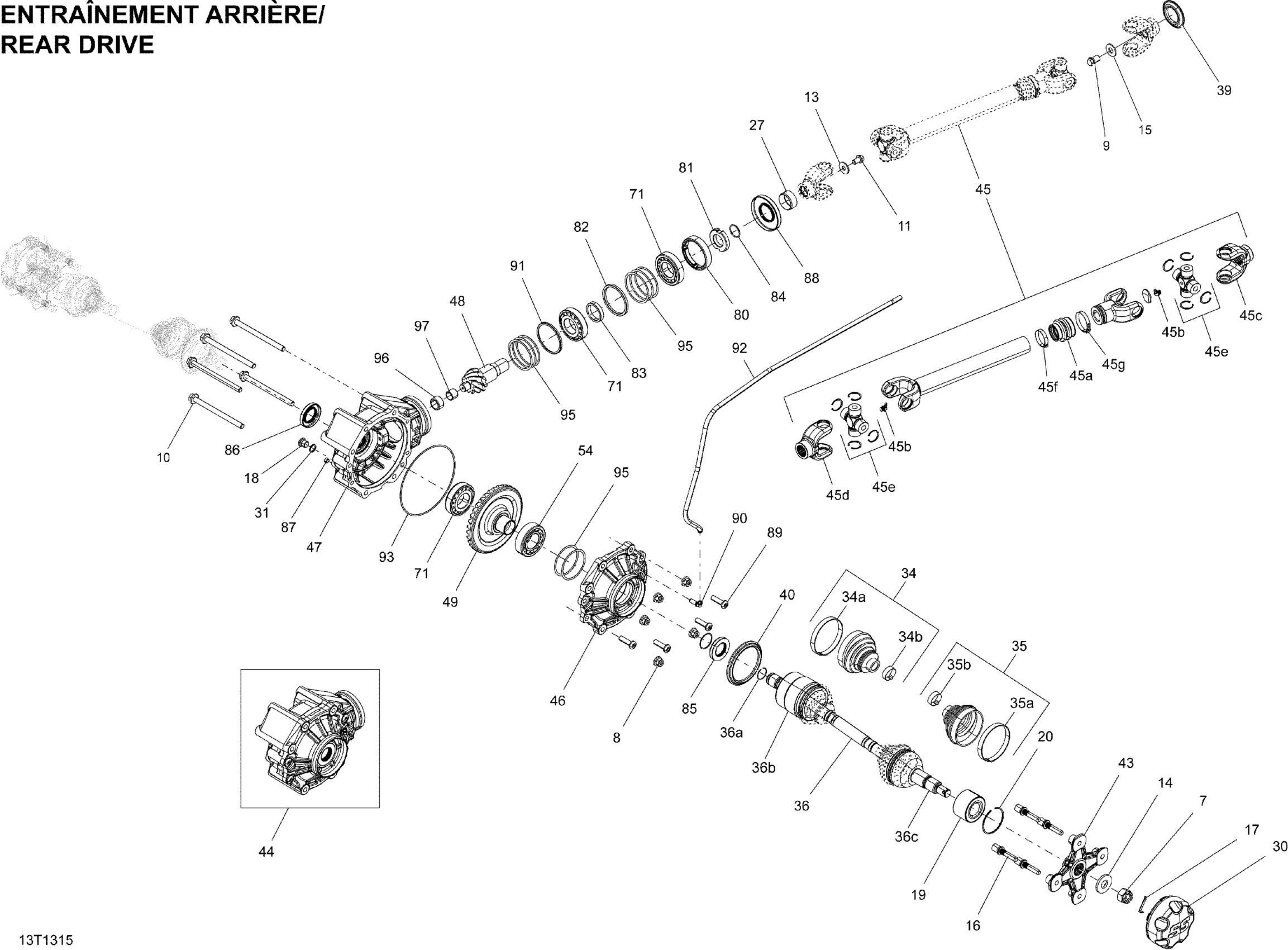

Can-Am Outlander 1000EFI XMR, 2013 08- Drive System, Rear Diagram
#
7
Hex. Flange Castellated Nut M18
232291413
Unavailable
8
Hex. Flange Elastic Nut M10
233201436
Unavailable
9
Hex Flange Screw M12 X 16
250001039
Unavailable
10
Hex. Flange Screw M10 X 135
250001041
Unavailable
11
Hex. Flange Screw M10 X 16 S.GRIP
250001044
Unavailable
13
Flat Washer M10 | 4X4
250200014
Unavailable
14
Conical Spring Washer M18
250200171
Unavailable
15
Flat Washer M12
250200102
Unavailable
16
Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4
250300643
Unavailable
17
Cotter Pin
250400036
Unavailable
18
Fill Level Plug | 4X4
705500504
Unavailable
19
Ball Bearing
293350150
Unavailable
20
Circlip
293370019
Unavailable
27
Wear Ring | 4X4
705400036
Unavailable
30
Wheel Cap
705401318
Unavailable
31
Copper Washer | 4X4
705500506
Unavailable
34
Boot Kit
705501864
Unavailable
34a
Oetiker Clamp, 82.1 mm
715900241
Unavailable
34b
Oetiker Clamp, 27.3 mm
715900242
Unavailable
35
Boot Kit
705501864
Unavailable
35a
Oetiker Clamp, 82.1 mm
715900241
Unavailable
35b
Oetiker Clamp, 27.3 mm
715900242
Unavailable
36
LH Rear - Premium CV Axle | Includes 58a to 63a
705501485
Unavailable
36
RH Rear - Premium CV Axle | Includes 64a to 69a
705501486
Unavailable
36a
Circlip
705501781
Unavailable
36b
PLUNGING JOINT - Call your local BRP dealership
705501780
Unavailable
36c
CV Joint
705501776
Unavailable
39
Protector
705501123
Unavailable
40
Wear Ring
705501124
Unavailable
43
Wheel Hub Ass'y
705501716
Unavailable
44
Final Drive Unit
705502546
Unavailable
45
Shaft Ass'y Kit
703500989
Unavailable
45a
Rubber Boot
715900118
Unavailable
45b
Grease Fitting
715900184
Unavailable
45c
Fixed Joint
715900129
Unavailable
45d
FIXED YOKE - Call your local BRP dealership
715900233
Unavailable
45e
Universal Joint
715900326
Unavailable
45f
Oetiker Gear Clamp 36.1MM
509000045
Unavailable
45g
Oetiker Gear Clamp 44.0MM | 4X4
293650138
Unavailable
46
Rear Cover
705502547
Unavailable
47
Rear Pinion Cover
705502180
Unavailable
48
Pinion 10 Tooth Kit
703500834
Unavailable
49
Not Available As Spare Part - Friction Washer
Unavailable
54
Not Available As Spare Part - Friction Washer
Unavailable
71
Not Available As Spare Part - Friction Washer
Unavailable
80
Nut
705501549
Unavailable
81
Nut
705501550
Unavailable
82
Differential Shim Kit
703500797
Unavailable
83
Differential Shim Kit
703500797
Unavailable
84
O-Ring
705501554
Unavailable
85
Oil Seal
705501556
Unavailable
86
Oil Seal
705501557
Unavailable
87
Plug Drain
705501724
Unavailable
88
Oil Seal
705501557
Unavailable
89
Bolt
705501562
Unavailable
90
Breather Tube
705501584
Unavailable
92
Polyurethane Hose 10000Mm Long
219704410
Unavailable
93
O-Ring
705501711
Unavailable
95
Differential Shim Kit
703500835
Unavailable
96
Needle Bearing Ass'y
703500836
Unavailable
97
INNER RING - Call your local BRP dealership
705501761
Unavailable
