- Outlander 1000EFI XMR, 2013
07- Steering

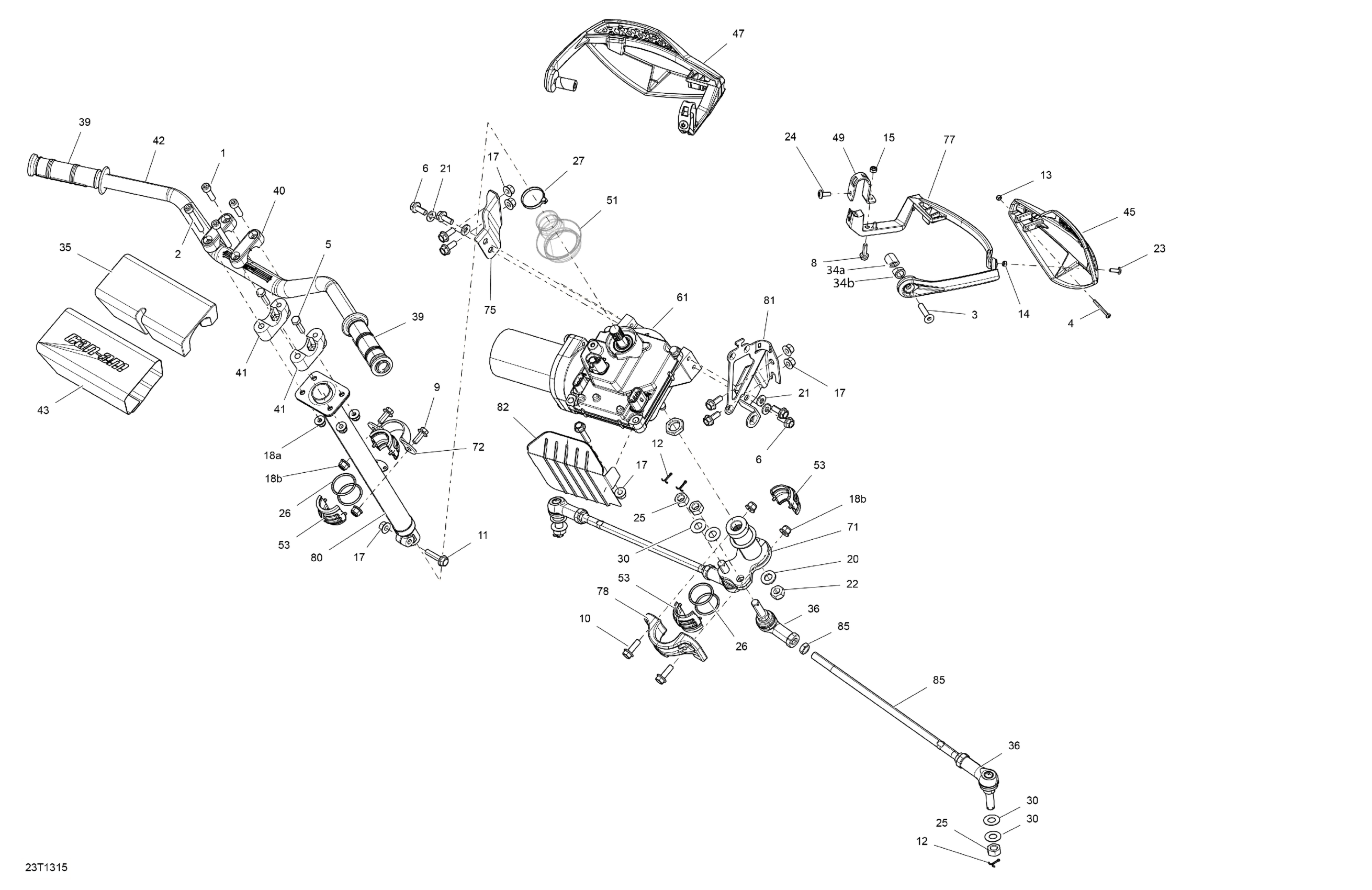

Can-Am Outlander 1000EFI XMR, 2013 07- Steering Diagram
#
1
Socket Screw M8 X 30
205083060
Unavailable
2
Socket Head Screw M8 X 60
205086060
Unavailable
3
Socket Head Screw | X
205384034
Unavailable
4
Socket Head Screw M4 X 40 | X
205444086
Unavailable
5
Hex. Screw M8 X 30
207183060
Unavailable
6
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
Unavailable
8
Hex. Flange Screw M6 X 20
207662044
Unavailable
9
Hex. Flange Screw M8 X 20
207682044
Unavailable
10
Hex. Flange Screw M8 X 25
207682544
Unavailable
11
Hex. Flange Screw M8 X 35
207683544
Unavailable
12
Cotter Pin
211400013
Unavailable
13
Elastic Stop Nut M4
232541414
Unavailable
14
Hex. Elastic Nut M5 | X
232551600
Unavailable
15
Hex. Elastic Stop Nut M6
232561600
Unavailable
17
Hex. Flange Elastic Nut M8
233281414
Unavailable
18a
Hex. Elastic Flange Nut M8
233281416
Unavailable
18b
Hex. Flange Elastic Nut M8
233281414
Unavailable
20
Hardened Washer
706200281
Unavailable
21
Conical Spring Washer M8
234281474
Unavailable
22
Hex. Flange Elastic Nut M12
250000047
Unavailable
23
Torx Screw M5 X 14
250000742
Unavailable
24
Torx Screw M6 X 16
250000223
Unavailable
25
Nut M12
250100099
Unavailable
26
O-Ring
293300068
Unavailable
27
Tie-Rap 180 mm
414115200
Unavailable
30
Hardened Washer
706200281
Unavailable
34a
Large Bracket | DS 650 X
709400162
Unavailable
34b
Small Bracket | DS 650 X
709400161
Unavailable
35
Foam
709400422
Unavailable
36
RH Ball Joint
709402302
Unavailable
36
LH Ball Joint
709402303
Unavailable
39
Handle Grip
709400493
Unavailable
40
Support
709400496
Unavailable
41
Lower Mounting Clamp
709402750
Unavailable
42
Aluminum Handle Bar
709400513
Unavailable
43
Cover B-190
709402414
Unavailable
45
RH AIR DEFLECTOR - Call your local BRP dealership
709400530
Unavailable
45
Deep Black RH Air Deflector | Camo Model
709401303
Unavailable
47
LH AIR DEFLECTOR - Call your local BRP dealership
709400531
Unavailable
47
Deep Black LH Air Deflector | Camo Model
709401304
Unavailable
49
Air Deflector Support Kit | X
715001378
Unavailable
51
Bellows
709400674
Unavailable
53
Spherical Half Bushing
709400783
Unavailable
61
Power Steering
709401608
Unavailable
71
Pitman Kit | Includes 3 to 5
703500785
Unavailable
72
Upper Column Attachment
709400827
Unavailable
75
Power Steering Module Bracket
709400848
Unavailable
77
Air Deflector Support Kit | X
715001378
Unavailable
78
Column Attachment
709401428
Unavailable
80
Kit Tube-Main.
703501137
Unavailable
81
RH STEERING BRACKET - Call your local BRP dealership
709400994
Unavailable
82
HEAT DEFLECTOR - Call your local BRP dealership
709401005
Unavailable
85
Rod-Tie Ass'y | Incl 36
703501037
Unavailable
