07- Front Suspension

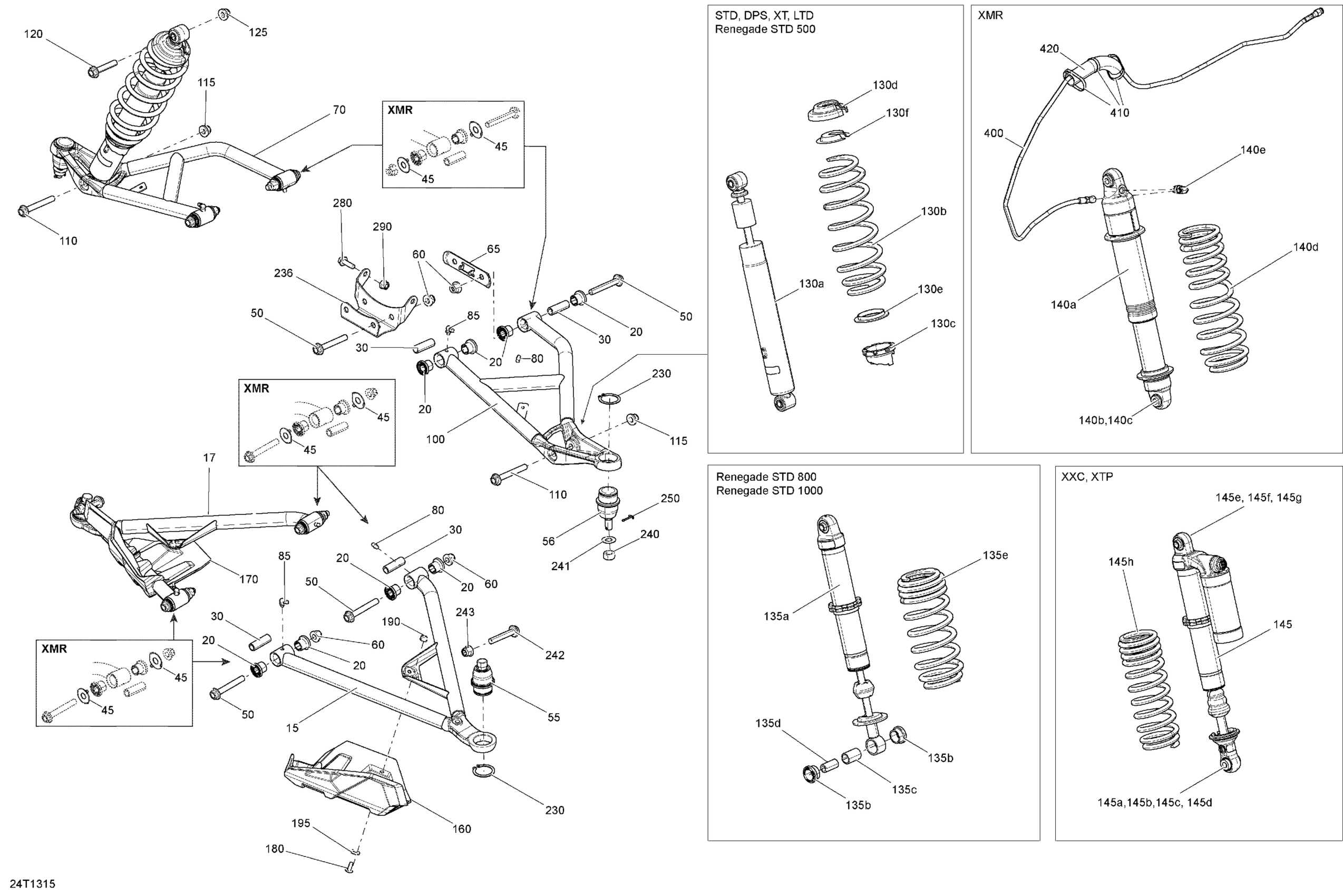

Can-Am Outlander 1000EFI XMR, 2013 07- Front Suspension Diagram
#
15
LH Lower Suspension Arm
706204639
Unavailable
17
Black, RH Lower Arm
706202870
Unavailable
20
Suspension Arm Bushing Kit | Includes 4
703500875
Unavailable
30
Suspension Arm Bushing Kit | Includes 4
703500875
Unavailable
45
Wear Plate
706201063
Unavailable
50
Hex. Flange Screw M10 X 70
207607046
Unavailable
55
Ball Joint
706202045
Unavailable
56
Ball Joint
706202044
Unavailable
60
Hex. Flange Elastic Nut M10
233201436
Unavailable
65
Front Suspension Cross Plate
706200998
Unavailable
70
Black RH Upper Arm
706201797
Unavailable
80
Grease Fitting
408200700
Unavailable
85
Grease Fitting 90°
293550056
Unavailable
100
Black LH Upper Arm
706201796
Unavailable
110
Hex. Flange Screw M10 X 75
250001038
Unavailable
115
Hex. Flange Elastic Nut M10
233201436
Unavailable
120
Hex. Flange Screw M10 X 55
207605546
Unavailable
125
Hex. Flange Elastic Nut M10
233201436
Unavailable
130a
Not Available As Spare Parts
XXX
Unavailable
130b
Not Available As Spare Parts
XXX
Unavailable
130c
Not Available As Spare Parts
XXX
Unavailable
130d
Not Available As Spare Parts
XXX
Unavailable
130e
Not Available As Spare Parts
XXX
Unavailable
130f
Not Available As Spare Parts
XXX
Unavailable
135a
Not Available As Spare Parts
XXX
Unavailable
135b
Not Available As Spare Parts
XXX
Unavailable
135c
Not Available As Spare Parts
XXX
Unavailable
135d
Not Available As Spare Parts
XXX
Unavailable
135e
Not Available As Spare Parts
XXX
Unavailable
140a
SHOCK ABSORBER - Call your local BRP dealership | XMR, Includes 140a to 140c
706201509
Unavailable
140b
O-RING BUSHING - Call your local BRP dealership | OUT XTP
715500360
Unavailable
140c
Interior Bushing | OUT XTP
715500361
Unavailable
140d
SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership | XMR Black
706201510
Unavailable
140d
SPRING_COMPRESSION B-160 PAINTED - Call your local BRP dealership | XMR Camo
706201541
Unavailable
140e
Elbow 90° | XMR
706001200
Unavailable
145
Not Available As Spare Parts
XXX
Unavailable
145a
Not Available As Spare Parts
XXX
Unavailable
145b
Not Available As Spare Parts
XXX
Unavailable
145c
Not Available As Spare Parts
XXX
Unavailable
145d
Not Available As Spare Parts
XXX
Unavailable
145e
Not Available As Spare Parts
XXX
Unavailable
145f
Not Available As Spare Parts
XXX
Unavailable
145g
Not Available As Spare Parts
XXX
Unavailable
145h
Not Available As Spare Parts
XXX
Unavailable
160
LH Joint Protector
706202808
Unavailable
170
RH Joint Protector
706202809
Unavailable
180
Torx Truss Screw M6 X 16
250000721
Unavailable
190
Hex. Flange Elastic Nut M6
233261494
Unavailable
195
Stainless Steel Flat Washer
234062670
Unavailable
230
Circlip
293370035
Unavailable
236
Upper Front Holder
705203247
Unavailable
240
Nut M12
250100099
Unavailable
241
Hardened Washer
706200281
Unavailable
242
Hex. Flange Screw M10 X 60
207606044
Unavailable
243
Hex. Flange Elastic Nut M10
233201434
Unavailable
250
Cotter Pin
211400017
Unavailable
280
Hex. Flange Screw M8 X 25
207682544
Unavailable
290
Hex. Flange Elastic Nut M8
233281414
Unavailable
400
HOSE - Call your local BRP dealership | XMR
706201520
Unavailable
410
Tie Wrap 368 mm
293750008
Unavailable
420
Not Available As Spare Part - Friction Washer
Unavailable
