01- Cooling System

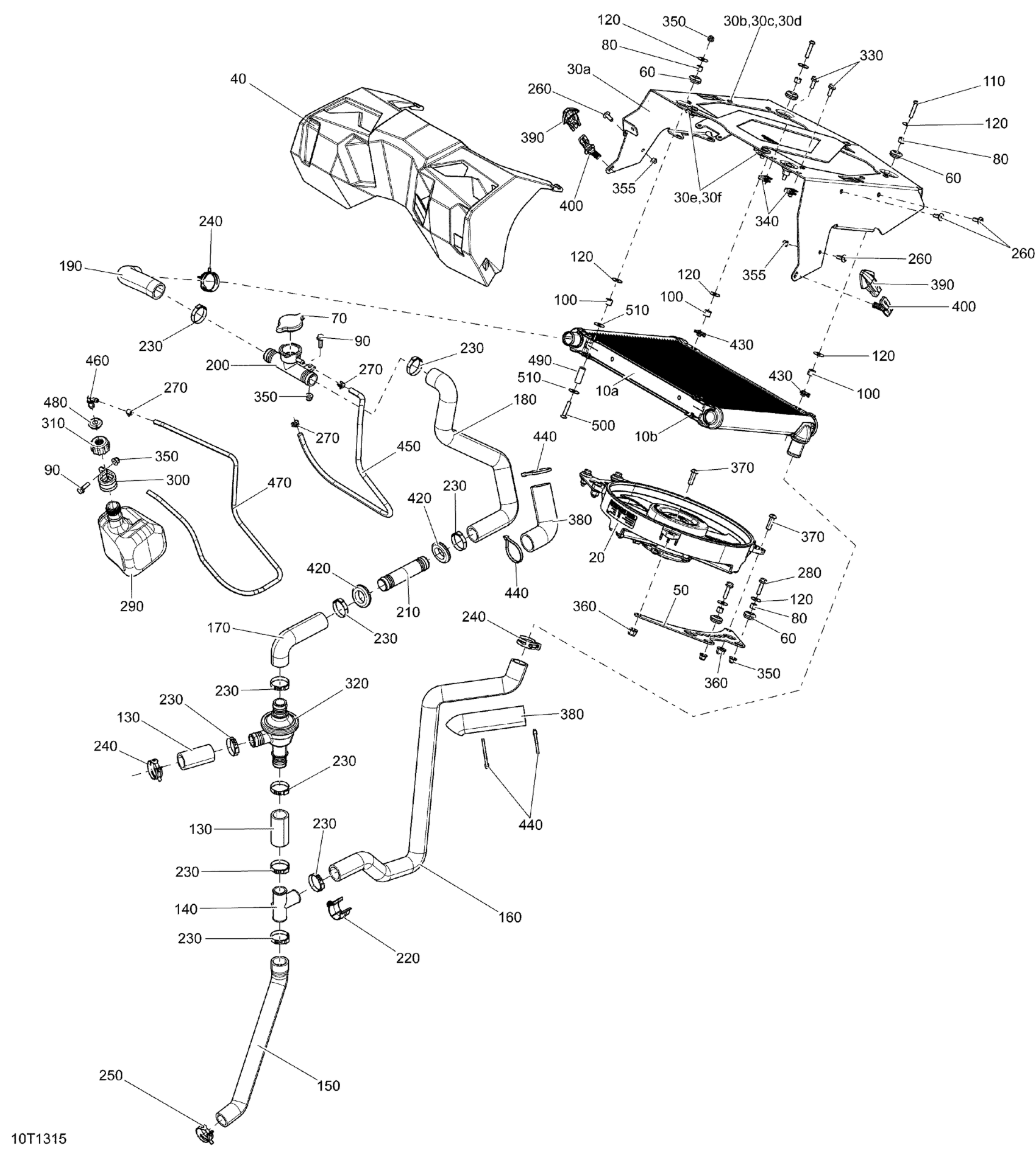

Can-Am Outlander 1000EFI XMR, 2013 01- Cooling System Diagram
#
10a
Radiator
709200286
Unavailable
10b
CLIP NUT M6 X 1 - Call your local BRP dealership
715900148
Unavailable
20
Fan Ass'y
709200565
Unavailable
30a
ASS. SUPPORT - Call your local BRP dealership | Includes 30a to 30f
715002316
Unavailable
30b
Rivet 3/16"
293150102
Unavailable
30c
Washer
517124300
Unavailable
30d
Rubber Washer 5 mm
250200024
Unavailable
30e
Panel Nut M6 X 1.0
250100198
Unavailable
30f
Torx Screw M6 X 16
250000223
Unavailable
40
Protection Cover Kit
703100399
Unavailable
50
FAN SUPPORT - Call your local BRP dealership
709200459
Unavailable
60
Grommet
293720062
Unavailable
70
Radiator Pressure Cap
709200207
Unavailable
80
Spacer
707000058
Unavailable
90
Hex. Flange Screw M6 X 20
207662034
Unavailable
100
Bushing
708001129
Unavailable
110
Torx Screw M6 X 30
235563054
Unavailable
120
Flat Washer
250200040
Unavailable
130
Hose
709200299
Unavailable
140
T-Fitting
509000219
Unavailable
150
Hose
709200392
Unavailable
160
Outlet Hose
709200899
Unavailable
170
Outlet Hose
709200900
Unavailable
180
Outlet Hose
709200429
Unavailable
190
Hose
709200891
Unavailable
200
Filler Neck
709200422
Unavailable
210
Nipple Tube 1"
709200448
Unavailable
220
Retainer
275500590
Unavailable
230
Gear Clamp
509000162
Unavailable
240
Norma Spring Clamp
293650166
Unavailable
250
Norma Spring Clamp
293650108
Unavailable
260
Torx Screw M6 X 16
250000223
Unavailable
270
Spring Clamp
414554800
Unavailable
280
Hex. Flange Screw M6 X 25
207662544
Unavailable
290
Coolant Tank Ass'y
709200624
Unavailable
300
Hose Anchor
709200036
Unavailable
310
Cap
709200586
Unavailable
320
Thermostat
709200406
Unavailable
330
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
340
Panel Nut M6 X 1.0
250100198
Unavailable
350
Flange Elastic Nut M6
233261434
Unavailable
355
Elastic Stop Nut M6
232561414
Unavailable
360
Hex. Flange Elastic Nut M8
233281414
Unavailable
370
Torx Screw M8 X 25, Scotch Grip
250000283
Unavailable
380
Tubing 35 MM 1000MM Long
219704428
Unavailable
390
Black Latch Kit | Includes 390 to 400
860200239
Unavailable
400
Panel Latch
517303981
Unavailable
420
Grommet
293720096
Unavailable
430
CLIP NUT M6 X 1 - Call your local BRP dealership
715900148
Unavailable
440
Tie-Rap 180 mm
414115200
Unavailable
450
Was 415110000 Polyurethane Hose 5.2 mm
219704414
Unavailable
460
Male Connector
414580700
Unavailable
470
Polyurethane Hose 10000Mm Long
219704410
Unavailable
480
Grommet
705003264
Unavailable
490
Bushing
705202499
Unavailable
500
Hex. Flange Screw M6 X 70
207667044
Unavailable
510
Flat Washer M6, Stainless
234062600
Unavailable
