- Outlander 1000EFI, DPS, XT & XT-P, 2013
07- Steering

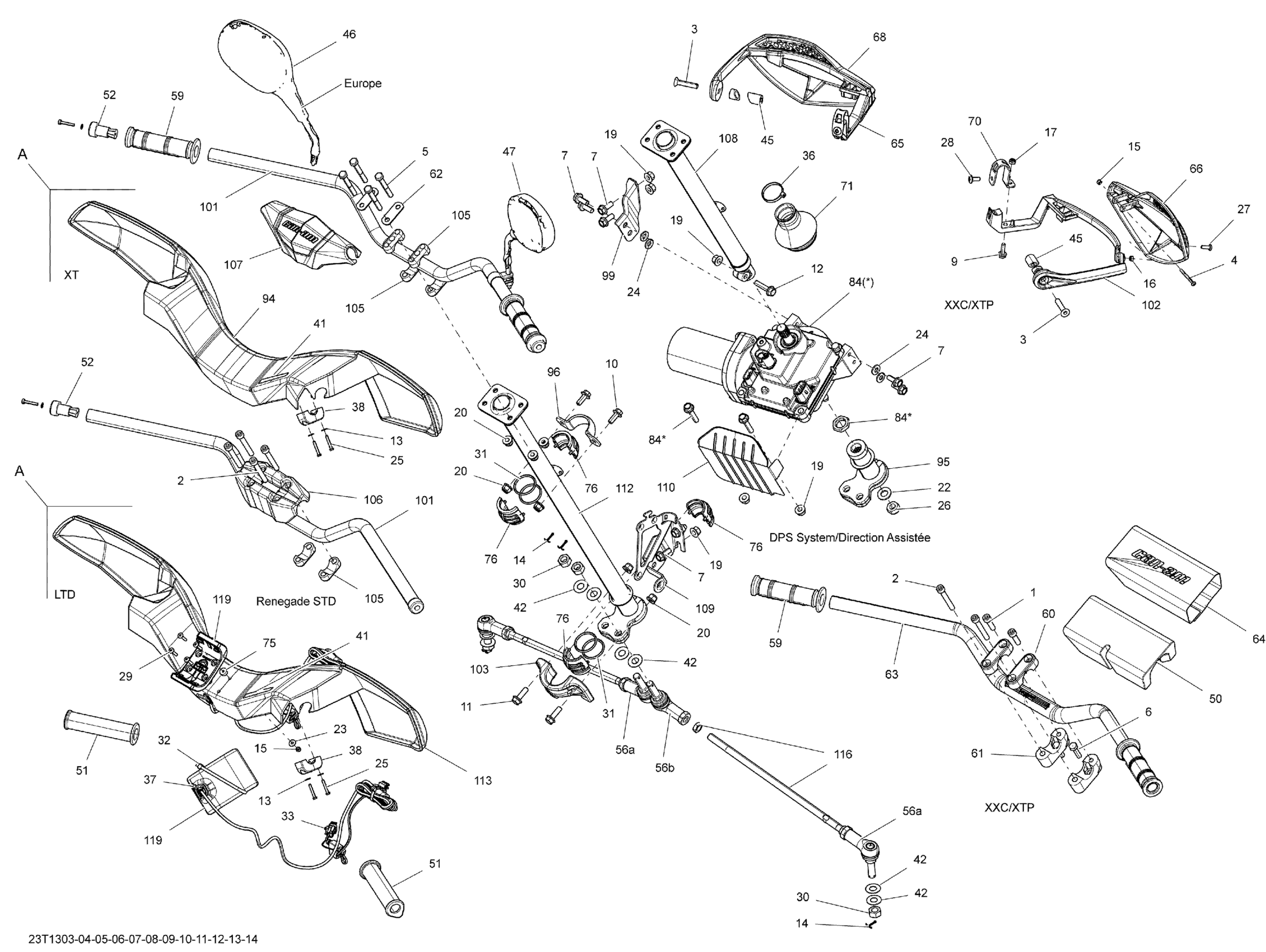

Can-Am Outlander 1000EFI, DPS, XT & XT-P, 2013 07- Steering Diagram
#
1
Socket Screw M8 X 30
205083060
Unavailable
2
Socket Head Screw M8 X 60
205086060
Unavailable
3
Socket Head Screw | X
205384034
Unavailable
4
Socket Head Screw M4 X 40 | X
205444086
Unavailable
5
Hex. Screw M8 X 60
207086046
Unavailable
6
Hex. Screw M8 X 30
207183060
Unavailable
7
Hex. Flange Screw M8 X 20, Scotch Grip
207582044
Unavailable
9
Hex. Flange Screw M6 X 20
207662044
Unavailable
10
Hex. Flange Screw M8 X 20
207682044
Unavailable
11
Hex. Flange Screw M8 X 25
207682544
Unavailable
12
Hex. Flange Screw M8 X 35
207683544
Unavailable
13
Flat Washer | XT
211200035
Unavailable
14
Cotter Pin
211400013
Unavailable
15
Elastic Stop Nut M4
232541414
Unavailable
16
Hex. Elastic Nut M5 | X
232551600
Unavailable
17
Hex. Elastic Stop Nut M6
232561600
Unavailable
19
Hex. Flange Nut M8
233081416
Unavailable
20
Hex. Flange Elastic Nut M8
233281414
Unavailable
22
Hardened Washer
706200281
Unavailable
23
Flat Washer 4 mm, Stainless
234042600
Unavailable
24
Conical Spring Washer M8
234281474
Unavailable
25
Hex. Flange Screw K40 X 25
241142560
Unavailable
26
Hex. Flange Elastic Nut M12
250000047
Unavailable
27
Torx Screw M5 X 14
250000742
Unavailable
28
Torx Screw M6 X 16
250000223
Unavailable
29
TORX SCREW M4 X 20 - Call your local BRP dealership
250000405
Unavailable
30
Nut M12
250100099
Unavailable
31
O-Ring
293300068
Unavailable
32
Tie Wrap 368 mm
293750008
Unavailable
33
Tie-Rap 173 mm
293750009
Unavailable
36
Tie-Rap 180 mm
414115200
Unavailable
37
Tie-Rap 180 mm
414115200
Unavailable
38
U-Clamp | XT
517303264
Unavailable
41
DPS Decal
704902966
Unavailable
42
Hardened Washer
706200281
Unavailable
45
Large Bracket | DS 650 X
709400162
Unavailable
46
LH Mirror | Europe
709400406
Unavailable
47
RH Mirror | Europe
709400407
Unavailable
50
Foam
709400422
Unavailable
51
Not Available As Spare Parts
XXX
Unavailable
52
End Piece
709400449
Unavailable
59
Handle Grip
709400493
Unavailable
60
Support
709400496
Unavailable
61
Lower Mounting Clamp
709402750
Unavailable
62
Stiffner
709400509
Unavailable
63
Aluminum Handle Bar
709400513
Unavailable
64
Cover B-190
709402414
Unavailable
65
Air Deflector Support Kit | X
715001378
Unavailable
66
RH AIR DEFLECTOR - Call your local BRP dealership
709400530
Unavailable
68
LH AIR DEFLECTOR - Call your local BRP dealership
709400531
Unavailable
70
Air Deflector Support Kit | X
715001378
Unavailable
71
Bellows
709400674
Unavailable
75
Not Available As Spare Parts
XXX
Unavailable
76
Spherical Half Bushing
709400783
Unavailable
84
Power Steering
709401608
Unavailable
94
Handle Bar Protector | XT
709400822
Unavailable
95
Pitman Kit | Includes 3 to 5
703500785
Unavailable
96
Upper Column Attachment
709400827
Unavailable
99
Power Steering Module Bracket
709400848
Unavailable
101
Black, Handle Bar
709401240
Unavailable
102
Air Deflector Support Kit | X
715001378
Unavailable
103
Column Attachment
709401428
Unavailable
105
Steering Support
709400919
Unavailable
106
Not Available As Spare Parts
XXX
Unavailable
107
Cover
709400939
Unavailable
108
Kit Tube-Main.
703501137
Unavailable
109
RH STEERING BRACKET - Call your local BRP dealership
709400994
Unavailable
110
HEAT DEFLECTOR - Call your local BRP dealership
709401005
Unavailable
112
Main Tube
709401008
Unavailable
113
Not Available As Spare Parts
XXX
Unavailable
116
Tie Rod Ass`y | Includes 15 to 17
703501038
Unavailable
119
Not Available As Spare Parts
XXX
Unavailable
56a
RH Ball Joint
709402302
Unavailable
56b
LH Ball Joint
709402303
Unavailable
A
Handle Guard Ass'y, XT
703100352
Unavailable
