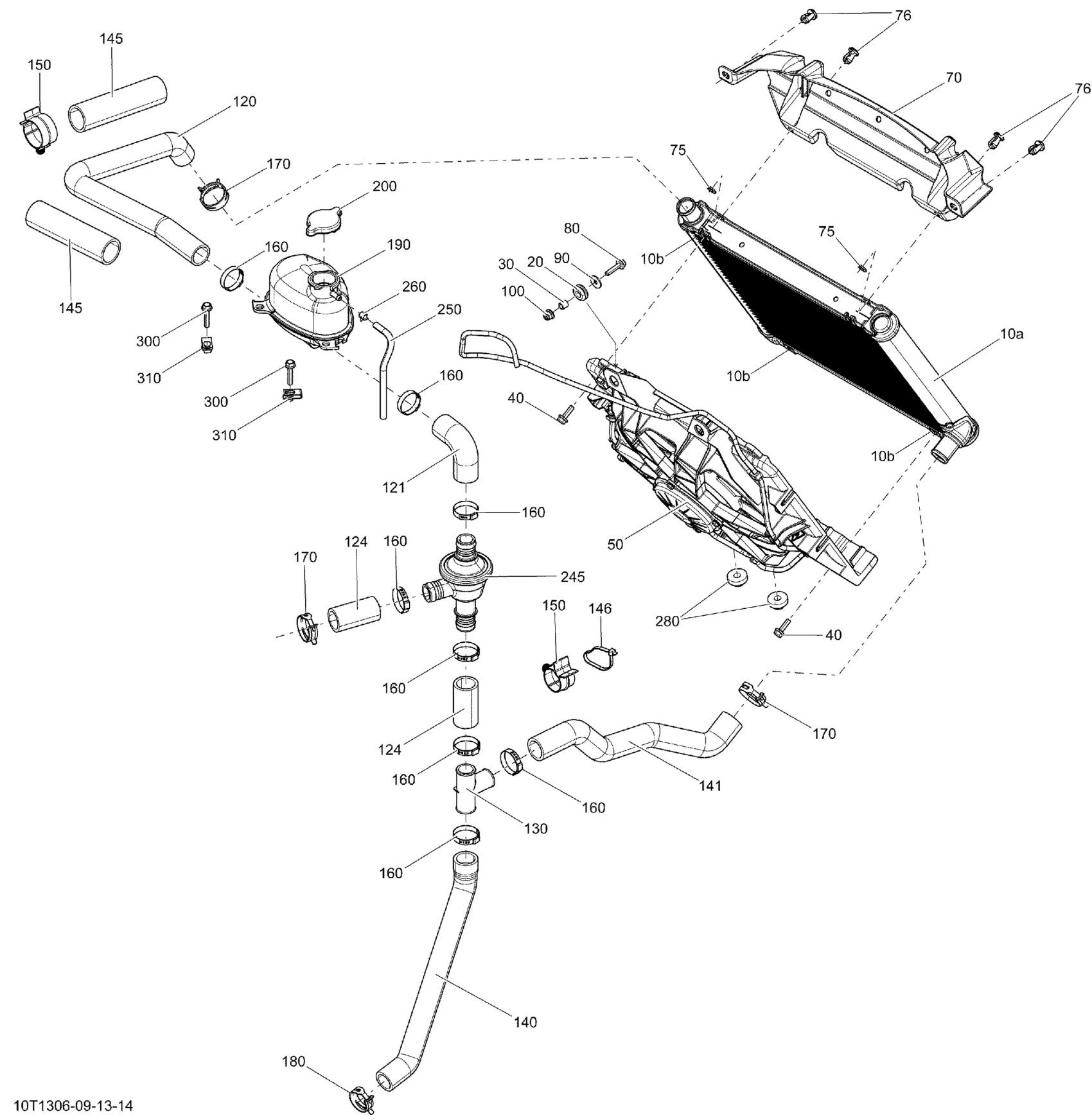

Can-Am Outlander 1000EFI, DPS, XT & XT-P, 2013 Cooling System Diagram

#

Description
Price

10a

Radiator

709200286

$476.99

10b

CLIP NUT M6 X 1 - Call your local BRP dealership

715900148

Unavailable

20

Grommet

709000582

$4.69

30

Bushing

293900105

$7.65

40

Hex. Flange Screw M6 X 20

207662034

$2.11

50

Fan Ass'y

709200564

$244.99

70

Air Deflector | Outlander

709200393

$15.87

75

Flat Washer 8 mm

234081410

$0.83

76

Tuflok Plastic Rivet

293150230

$1.47

80

Hex. Flange Screw M6 X 25

207662534

$2.11

90

Flat Washer

250200082

$0.42

100

Flange Elastic Nut M6

233261434

$4.44

120

Radiator Inlet Hose

709200278

$34.99

121

THERMOSTAT INLET HOSE - Call your local BRP dealership

709200280

Unavailable

124

Hose

709200299

$8.60

130

T-Fitting

509000219

$15.89

140

Hose

709200392

$17.57

141

Radiator Outlet Hose

709200390

$15.36

145

Tubing 35 MM 1000MM Long

219704428

$10.99

146

Not Available As Spare Parts

XXX

Unavailable

150

Retainer

275500590

$9.69

160

Gear Clamp

509000162

$7.29

170

Norma Spring Clamp

293650166

$4.44

180

Norma Spring Clamp

293650108

$4.12

190

Coolant Tank

709200297

$55.99

200

Radiator Pressure Cap

709200207

$25.49

245

Thermostat

709200406

$98.99

250

Polyurethane Hose 10000Mm Long

219704410

$56.99

260

Spring Clamp

414554800

$0.88

280

Grommet

709200285

$9.69

300

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

310

Panel Nut M6 X 1.0

250100198

$2.11
