08- Drive System, Rear _13T1519

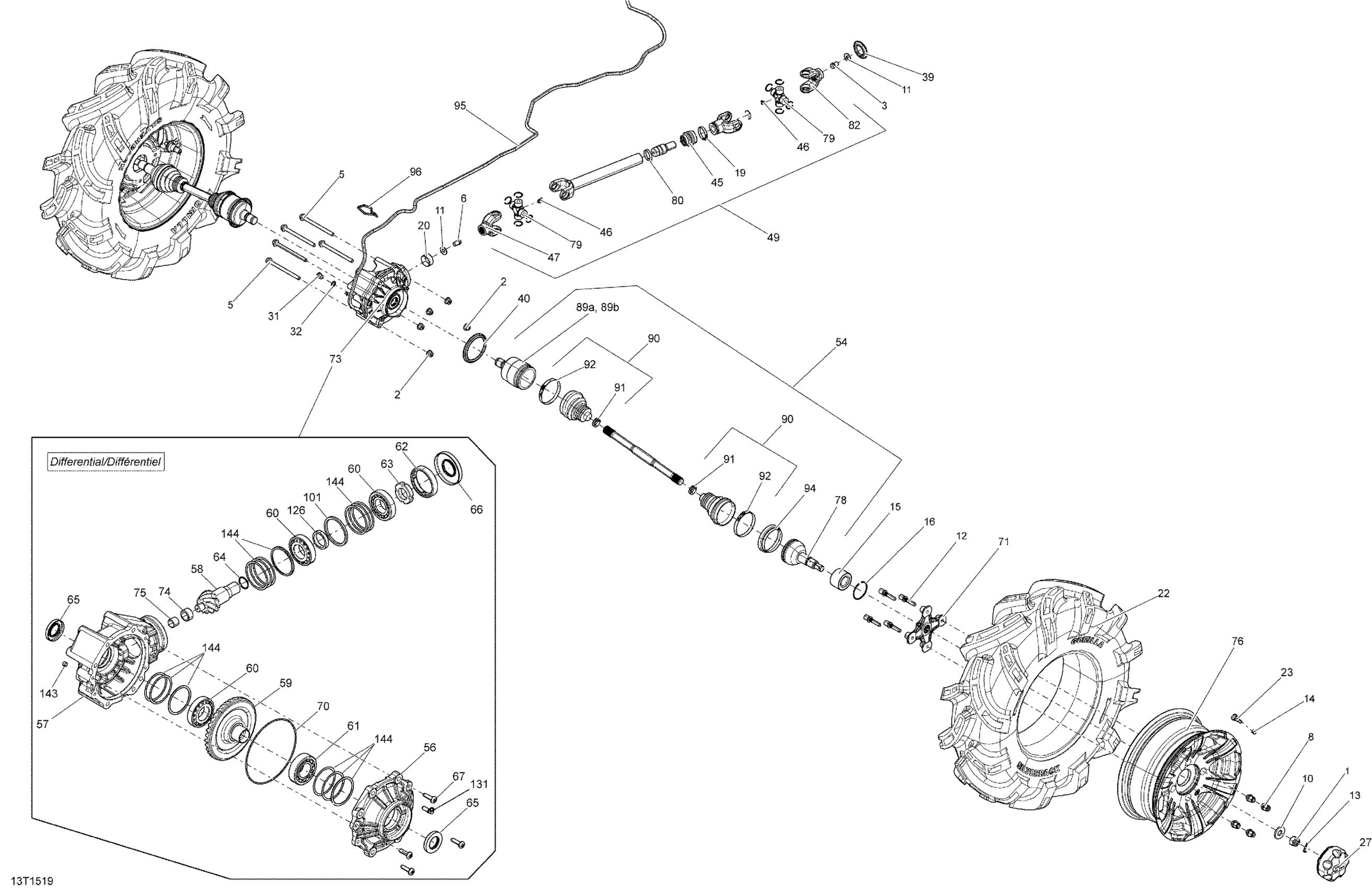

Can-Am Outlander 1000 EFI Xmr, 2015 08- Drive System, Rear _13T1519 Diagram
#
1
Hex. Flange Castellated Nut M18
232291413
Unavailable
2
Hex. Flange Elastic Nut M10
233201436
Unavailable
3
Hex Flange Screw M12 X 16
250001039
Unavailable
5
Hex. Flange Screw M10 X 135
250001041
Unavailable
6
Hex. Flange Screw M10 X 16 S.GRIP
250001044
Unavailable
8
Black, Wheel Nut M10 X 1.25
250100184
Unavailable
10
Conical Spring Washer M18
250200171
Unavailable
11
Flat Washer M10 | 4X4
250200014
Unavailable
12
Wheel Stud | Tightening Torque: See Bulletin ATV 2020-4
250300643
Unavailable
13
Cotter Pin
250400036
Unavailable
14
Valve Cap
293000110
Unavailable
15
Ball Bearing
293350150
Unavailable
16
Circlip
293370019
Unavailable
19
Oetiker Gear Clamp 44.0MM | 4X4
293650138
Unavailable
20
Wear Ring | 4X4
705400036
Unavailable
22
TIRE_30X9R14 - Call your local BRP dealership
705400962
Unavailable
23
Rim Valve With Cap
705400193
Unavailable
27
Wheel Cap
705401318
Unavailable
31
Fill Level Plug | 4X4
705500504
Unavailable
32
Copper Washer | 4X4
705500506
Unavailable
39
Protector
705501123
Unavailable
40
Wear Ring
705501124
Unavailable
45
Rubber Boot
715900118
Unavailable
46
Grease Fitting
715900184
Unavailable
47
FIXED YOKE - Call your local BRP dealership
715900233
Unavailable
49
Shaft Ass'y Kit
703500989
Unavailable
54
Performance CV Axle - Rear Left
705501847
Unavailable
54
Performance CV Axle - Rear Right
705501848
Unavailable
56
Rear Cover
705502547
Unavailable
57
Rear Pinion Cover
705502180
Unavailable
58
Differential Gear Kit
703500870
Unavailable
59
Differential Gear Kit
703500870
Unavailable
60
Not Available As Spare Part - Friction Washer
Unavailable
61
Not Available As Spare Part - Friction Washer
Unavailable
62
Nut
705501549
Unavailable
63
Nut
705501550
Unavailable
64
O-Ring
705501554
Unavailable
65
Oil Seal
705501556
Unavailable
66
Oil Seal
705501557
Unavailable
67
Screw
705502063
Unavailable
70
O-Ring
705501711
Unavailable
71
Wheel Hub Ass'y
705501716
Unavailable
73
Final Drive Unit
705502546
Unavailable
74
INNER RING - Call your local BRP dealership
705501761
Unavailable
75
Needle Bearing Ass'y
703500836
Unavailable
76
Matte Black Rim
705401552
Unavailable
78
CV Joint
705501776
Unavailable
79
Universal Joint
715900270
Unavailable
80
Oetiker Gear Clamp 36.1MM
509000045
Unavailable
82
Fixed Joint
715900129
Unavailable
90
Boot Kit
705501864
Unavailable
91
Oetiker Clamp, 27.3 mm
715900242
Unavailable
92
Oetiker Clamp, 82.1 mm
715900241
Unavailable
94
Joint Protector
705501842
Unavailable
95
Polyurethane Hose 10000Mm Long
219704410
Unavailable
96
Tie Wrap 368 mm
293750008
Unavailable
101
Differential Shim
705501552
Unavailable
126
Differential Shim
705501553
Unavailable
131
Breather Tube
705501584
Unavailable
143
Plug Drain
705501724
Unavailable
144
Differential Shim Kit
703500835
Unavailable
89a
PLUNGING JOINT - Call your local BRP dealership
705501780
Unavailable
89b
Circlip
705501781
Unavailable
