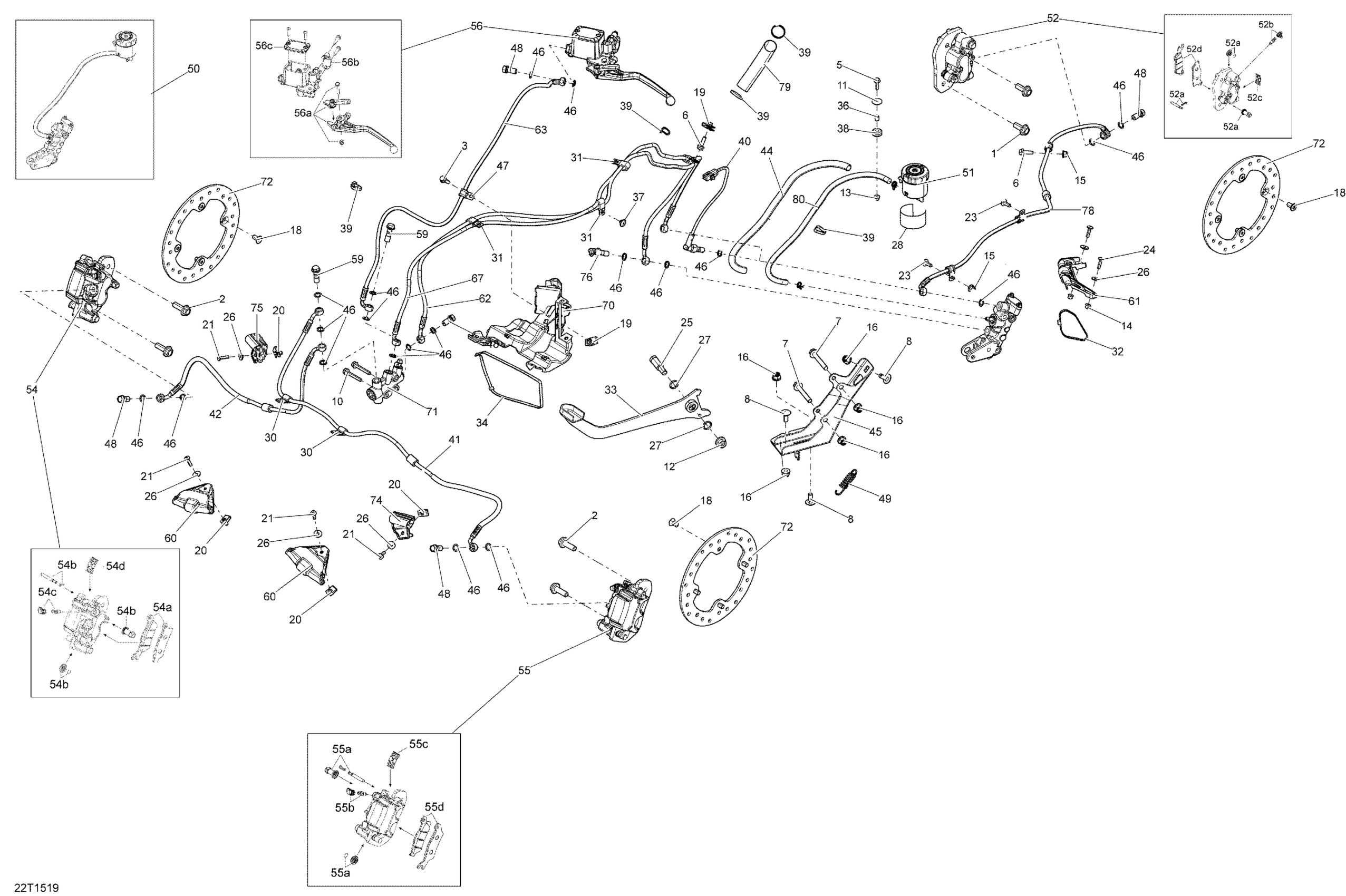

Can-Am Outlander 1000 EFI Xmr, 2015 Brakes _22T1519 Diagram

#

Description
Price

1

Hex. Flange Screw M10 X 20

207502046

$2.11

2

Hex. Flange Screw M10 X 25

207502546

$2.11

3

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

5

Hex.Flange Screw M5 X 20

207652044

$1.90

6

Hex. Flange Screw M6 X 20

207662044

$2.00

7

Hex. Flange Screw M8 X 55

207685544

$5.39

8

Carriage Bolt, M8 X 20

207782044

$1.90

10

HEX. SCREW M6 X 40 - Call your local BRP dealership

210264080

Unavailable

11

Flat Washer

224060201

$1.26

12

Hex. Flange Elastic Nut M10

233201436

$2.11

13

Flange Elastic Nut M5

233251434

$2.00

14

Flange Elastic Nut M5

233251434

$2.00

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

18

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

19

Panel Nut M6 X 1.0

250100198

$2.11

20

Panel Nut M5 X 0.8

250000958

$4.23

21

Torx Screw M5 X 20

250000724

$1.69

23

Torx Screw M6 X 16

250000755

$0.87

24

Torx Screw M5 X 20

250000792

$2.11

25

Shoulder Screw M10

250000513

$6.77

26

Washer M5

250200025

$0.74

27

O-Ring

293300144

$3.82

28

Heat Shield

705601311

$4.29

30

Clamp

293650219

$0.90

31

Clamp

293650220

$0.90

32

Tie Wrap 368 mm

293750008

$1.04

33

Deep Black, Brake Pedal

705602163

$154.99

34

Tie Rap, 533 mm

293750047

$2.09

36

Bushing

293900112

$10.06

37

Pop Rivet 3/16"

390406500

$0.88

38

Grommet

414036300

$2.79

39

Tie-Rap 180 mm

414115200

$0.11

40

Brake Switch

705601251

$51.99

41

LH Front Hose

705601520

$45.49

42

RH Front Hose

705601521

$45.49

44

Tubing 10 MM 1000MM Long

219704407

$2.79

45

Brake Pedal Bracket

705202000

$38.99

46

Copper Washer

705601628

$4.44

47

Clamp

293650256

$5.49

48

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

49

Brake Pedal Spring

705600792

$9.10

50

Rear Master Cylinder Ass'y | Includes 28 to 30

705601776

$229.99

51

Oil Tank

705601020

$39.99

52

RH Rear Brake Caliper | Includes 41 to 45

705602190

$307.49

52a

Pin Set

705601016

$9.26

52b

Bleeding Screw

705601017

$6.35

52c

Retaining Spring

705601018

$7.55

52d

RH Organic Brake Pad Kit

705601014

$42.49

54

RH Front Caliper Ass'y | Includes 1 to 5

705600861

$270.49

54a

RH Organic Brake Pad Kit

705601014

$42.49

54b

Pin Set

705601016

$9.26

54c

Bleeding Screw

705601017

$6.35

54d

Retaining Spring

705601018

$7.55

55

LH Front Caliper Ass'y | Includes 6 to 10

705600862

$270.49

55a

Pin Set

705601016

$9.26

55b

Bleeding Screw

705601017

$6.35

55c

Retaining Spring

705601018

$7.55

55d

LH Organic Brake Pad Kit

705601015

$42.49

56

LH Front Master Cylinder | Includes 11 to 14

705601430

$259.99

56a

Lever Set

705601013

$63.99

56b

Clamp And Screw Kit

507032477

$23.99

56c

Cap Set

219800096

$21.99

59

Banjo Bolt

705600958

$6.35

60

Hose Guard

705601893

$4.55

61

REAR HOSE PROTECTOR - Call your local BRP dealership

705600963

Unavailable

62

Outlet Hose, Master Cylinder

705601518

$69.99

63

Brake Handle Line | Includes 17 to 18

705600967

$48.49

67

Inlet Hose, Master Cylinder

705600973

$63.49

70

Front Hose Bracket

705600983

$13.71

71

Splitter

705600994

$153.49

72

Disc Brake

705600999

$67.99

74

LH Hose Bracket

705601048

$4.55

75

RH Hose Bracket

705601049

$4.55

76

Bleeding Screw

705601051

$12.16

78

RH Brake Line

705601078

$59.49

79

Tubing 25 MM 1000MM Long

219704402

$15.99

80

Oil Housing Hose

705601019

$15.87
