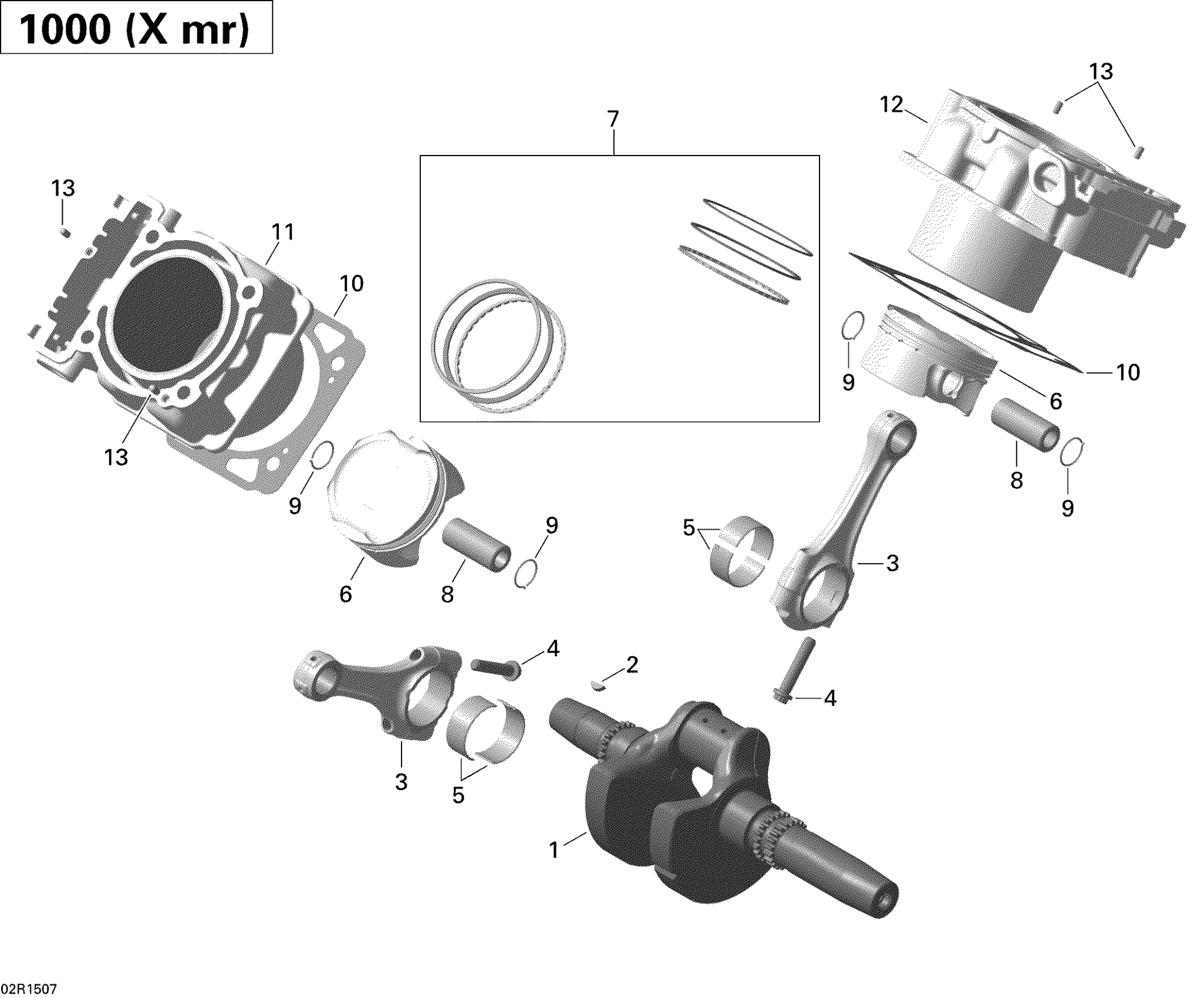

Can-Am Outlander 1000 EFI Xmr, 2015 Crankshaft, Piston And Cylinder _02R1507 Diagram

#

Description
Price

1

Crankshaft

420219736

$808.99

2

Woodruff Key 4 X 5

420246570

$3.38

3

Connecting Rod Ass'y | Includes 3 to 4

420217563

$255.49

4

Connecting Rod Screw M9 X 1

420641475

$17.53

5

Plain Bearing

420233726

$17.59

6

Piston Ass'y, 90.955 mm | Includes 6 to 7

420685248

$170.49

7

Piston Ring Set | 400HO

420296774

$78.99

8

Piston Pin

420216351

$25.99

9

Piston Circlip

420245436

$4.89

10

Gasket

420630210

$12.71

11

Cylinder Front

420413111

$467.99

12

Cylinder Rear

420413116

$467.99

13

Drive Pin 5 X 10

420929650

$1.68
