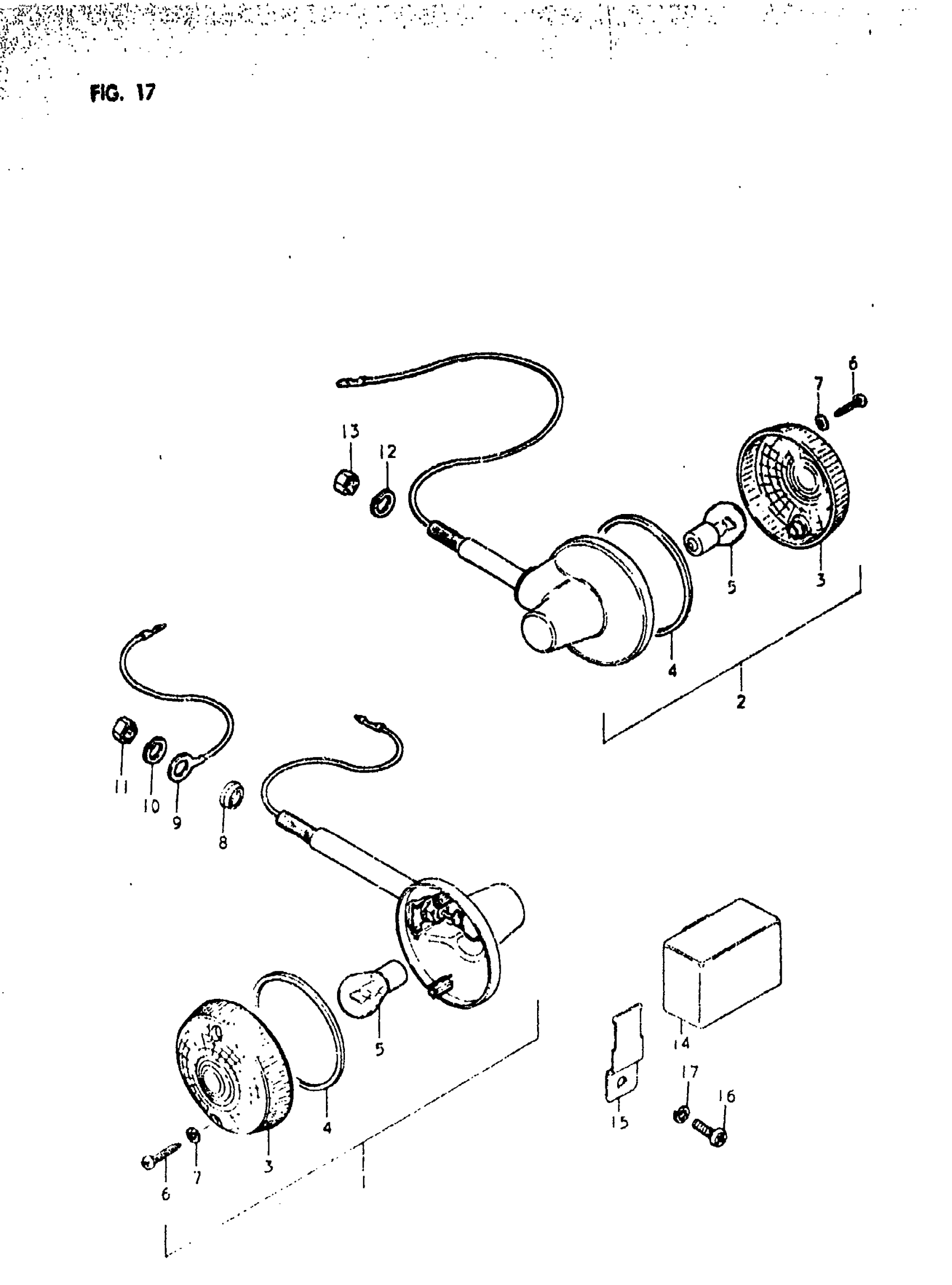

Suzuki OR50 (1980) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURN SIGNAL | N,T

35601-48610

Unavailable

2

NO DESCRIPTION AVAILABLE | N,T; Includes Item(s) 3 - 7 This part replaces 35603-46220.

35603-29310-999

Unavailable

3

LENS | N,T

35612-28620

$8.98

4

GASKET | N,T

35613-28620

$4.55

5

BULB (6V, 21CD) | N,T

09471-06011

Unavailable

6

SCREW | N,T This part replaces 35623-47610.

03211-04207

$1.49

7

GASKET | N,T

35627-43010

$2.28

8

SPACER | N,T

35644-46190

Unavailable

9

LEAD WIRE, FRONT | N,T

36660-33000

$4.52

10

LOCK WASHER | N,T This part replaces 08321-21108.

08321-01107

$1.84

11

NUT | N This part replaces 08310-12108.

08310-00107

$2.19

11

NUT | T This part replaces 08310-11108.

08310-00107

$2.19

12

LOCK WASHER | N,T This part replaces 08321-21108.

08321-01107

$1.84

13

NUT | N This part replaces 08310-12108.

08310-00107

$2.19

13

NUT | T This part replaces 08310-11108.

08310-00107

$2.19

14

RELAY ASSY,TRN | N,T This part replaces 38610-48600.

38610-05X50

Unavailable

15

NO DESCRIPTION AVAILABLE | N This part replaces 38621-22200.

38620-35301

Unavailable

16

SCREW | N This part replaces 02112-06128.

02112-06127

$1.84

17

LOCK WASHER | N This part replaces 08321-21068.

08321-01067

$2.13
