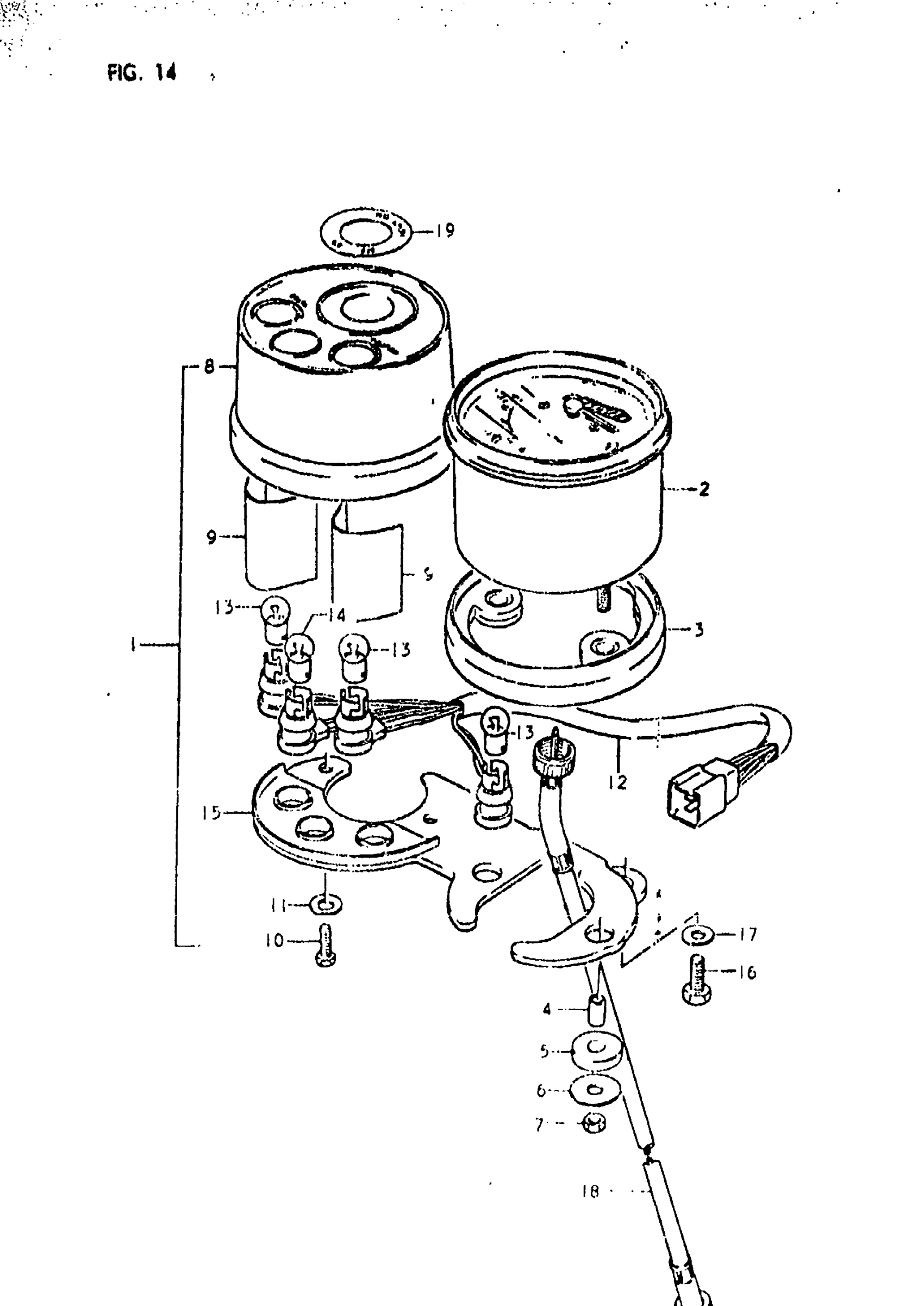

Suzuki OR50 (1980) SPEEDOMETER (OR50N) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 15 This part replaces 34100-46730.

34100-23371

Unavailable

2

SPEEDOMETER

34110-46730

Unavailable

3

CUSHION

34955-46221

Unavailable

4

SPACER

34978-46221

Unavailable

5

CUSHION

34961-46220

Unavailable

6

WASHER,5.5X18X1 This part replaces 09160-05006.

09160-05006-XC0

Unavailable

7

NUT This part replaces 08310-11058.

08310-00057

$1.84

8

CASE, PILOT BULB

36381-48640

Unavailable

9

PIPE

36328-46220

Unavailable

10

BOLT This part replaces 01104-05108.

01500-0510B

$1.80

11

WASHER This part replaces 08322-21058.

08322-01057

$2.13

12

NO DESCRIPTION AVAILABLE This part replaces 34173-46671.

34173-23360

Unavailable

13

BULB (6V, 3W)

09471-06002

$2.25

14

BULB (6V, 1.7W)

09471-06001

$2.18

15

BRACKET

34950-46220

Unavailable

16

BOLT This part replaces 01107-08128.

01500-08127

$2.62

17

WASHER This part replaces 08322-11088.

08322-01087

$2.13

18

NO DESCRIPTION AVAILABLE This part replaces 34910-46100.

34910-46102

Unavailable

19

PLATE, CONTROL IDENTIFICATION

37139-39100

Unavailable
