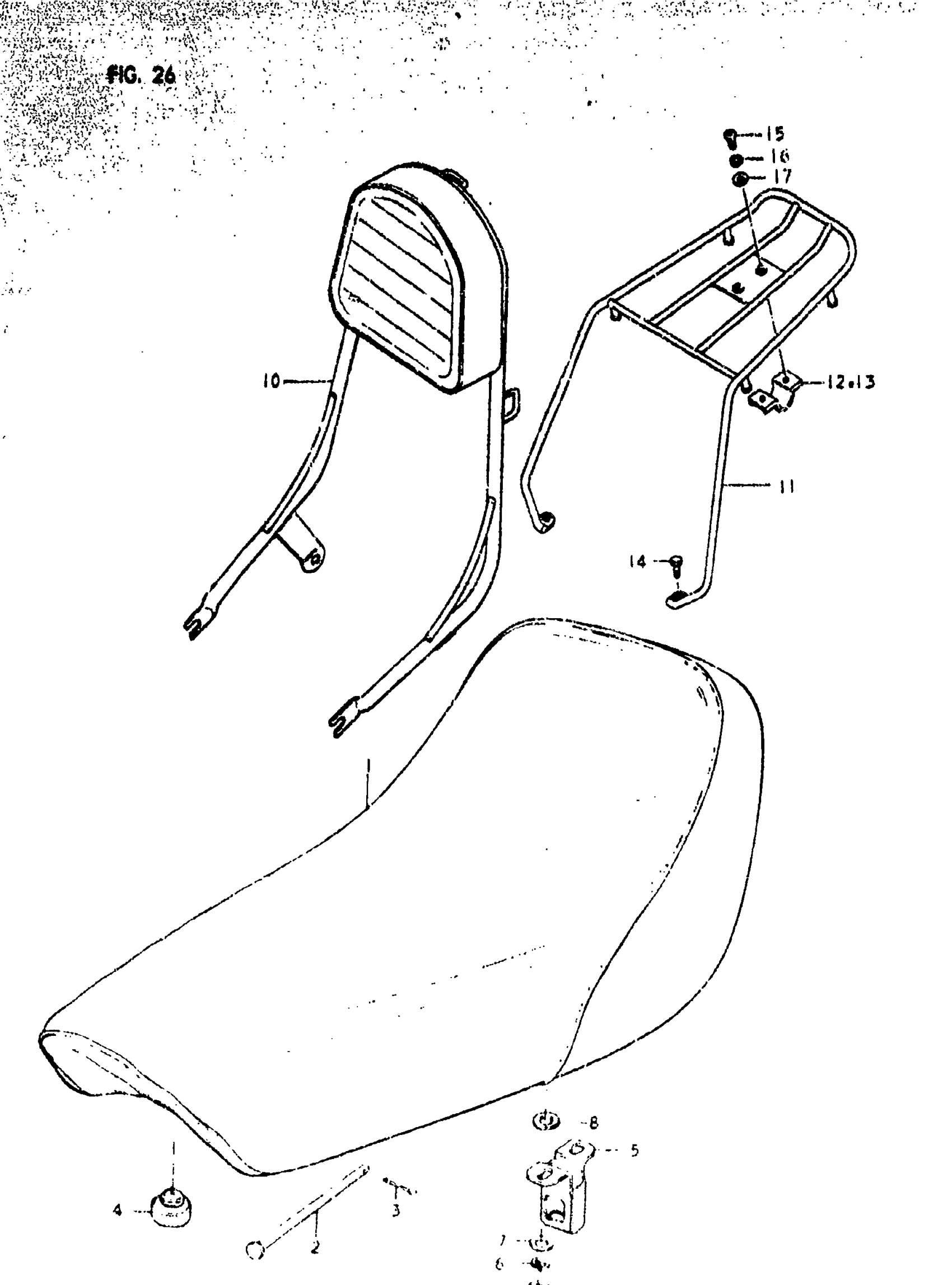

Suzuki OR50 (1980) SEAT Diagram

#

Description
Price

1

SEAT ASSY (BLACK) | N,T

45100-46201-865

Unavailable

2

PIN, SEAT SUPPORT | N,T

09200-06030

Unavailable

3

.COTTER PIN | N,T This part replaces 04111-20158.

04111-2015A

$1.49

4

CUSHION | N,T

09321-10002

$2.22

5

STRIKER, SEAT LOCK | N,T

45213-45000

Unavailable

6

LOCK WASHER | N,T This part replaces 08321-21068.

08321-01067

$2.13

7

WASHER | N,T This part replaces 08322-21068.

08322-01067

$2.13

8

.WASHER | N,T This part replaces 08322-11068.

08322-0106B

$2.26

9

.NUT | N,T This part replaces 08310-11068.

08310-00067

$2.13

10

BACKREST ASSY, SEAT | N,T; OPT

46220-46200

Unavailable

11

CARRIER, SPORTS | N,T; OPT

46310-46210

Unavailable

12

SPORTS CARRIER FITTING SET | N,T; OPT; Includes Item(s) 13 - 17

46300-46830

Unavailable

13

PLATE | N,T; OPT

46622-46210

Unavailable

14

BOLT | N,T; OPT This part replaces 01107-06128.

01500-06127

$1.97

15

SCREW | N,T; OPT This part replaces 02122-05108.

02122-05107

$1.49

16

LOCK WASHER | N,T; OPT This part replaces 08321-21068.

08321-01067

$2.13

17

.WASHER | N,T; OPT This part replaces 08322-11068.

08322-0106B

$2.26
