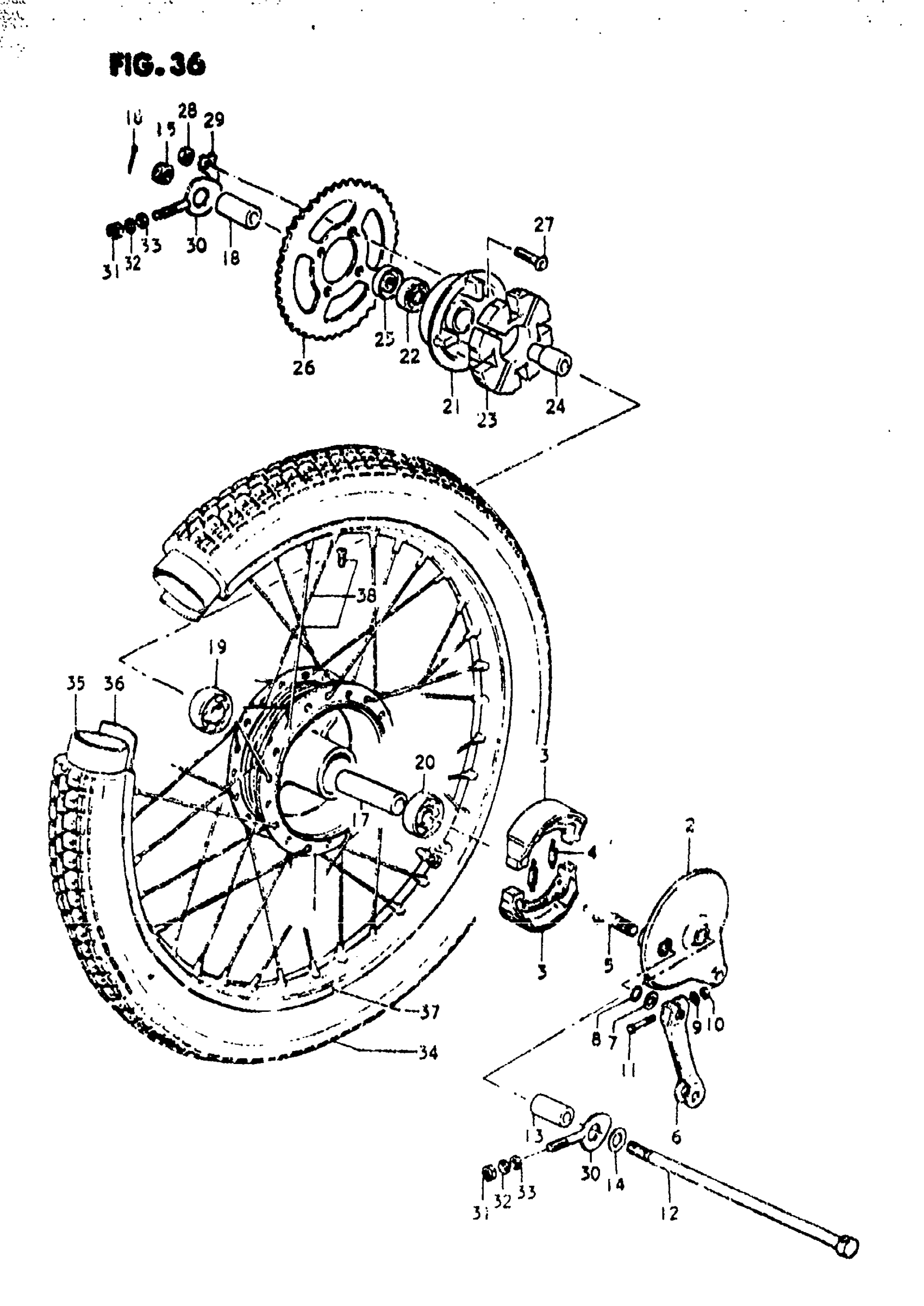

Suzuki OR50 (1980) REAR WHEEL Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | N,T This part replaces 64110-35021.

64110-35002

Unavailable

2

PANEL, REAR BRAKE ANCHOR | N,T This part replaces 64210-46022.

64210-46024

Unavailable

3

SHOE/SPRING SET | N This part replaces 54410-35000.

54400-35860

$36.32

3

SHOE & SPRING S | T This part replaces 54410-43020.

54400-43880

$39.22

4

SPRING | N,T This part replaces 09443-07001.

09443-07025

$2.08

5

CAM, BRAKE | N This part replaces 54441-29301.

54441-29305

$20.02

5

CAM, BRAKE | T This part replaces 54441-29302.

54441-29305

$20.02

6

LEVER,REAR BRAK | N,T This part replaces 64451-46100.

64451-46100-A05

$18.02

7

WASHER | N,T This part replaces 09160-14001.

09160-14055

$2.39

8

O RING (D:2.5,ID:13.8) | N,T This part replaces 09280-14003.

09280-14011

$4.77

9

WASHER | N,T This part replaces 08322-21068.

08322-01067

$2.13

10

.NUT | N,T This part replaces 08310-11068.

08310-00067

$2.13

11

BOLT | N,T

09100-06078

$2.38

12

AXLE,FRONT | N,T This part replaces 64711-43000.

64711-43001

$41.97

13

SPACER,12.1X22X | N,T This part replaces 09180-12077.

09180-12077-XC0

Unavailable

14

WASHER | N,T This part replaces 08322-11128.

08322-01127

$1.84

15

NUT | N,T This part replaces 08314-31128.

08314-3112A

$2.41

16

PIN | N,T This part replaces 04111-30308.

04111-3030A

$1.49

17

NO DESCRIPTION AVAILABLE | N,T This part replaces 09180-12033.

09180-12145

Unavailable

18

SPACER, LH | N,T

09180-12080

Unavailable

19

BEARING | N,T This part replaces 08143-62017.

08143-6201B

$10.80

20

B1 12X37X12 BEA | N,T This part replaces 08143-63017.

08143-6301B

$19.20

21

DRUM, SPROCKET MOUNTING | N,T This part replaces 64611-26101.

64611-01001

Unavailable

22

BEARING, DRIVE SHAFT RH | N,T This part replaces 09262-17008.

09262-17023

$16.75

23

ABSORBER,RR WHL | N,T This part replaces 64651-01001.

64651-010B1

$21.50

24

RETAINER | N,T

64733-43000

$12.40

25

SEAL,OIL | N,T This part replaces 09285-25001.

09285-25007

$7.05

26

SPROCKET,REAR,N | N,T This part replaces 64511-46200.

64511-46201

Unavailable

26

NO DESCRIPTION AVAILABLE | N,T This part replaces 64511-46210.

64511-46211

Unavailable

26

NO DESCRIPTION AVAILABLE | N,T This part replaces 64511-46220.

64511-46120

Unavailable

27

BOLT | N,T

09105-08001

$2.06

28

NUT | N,T This part replaces 08310-12088.

08310-00087

$2.13

29

WASHER | N,T

09169-08011

$2.16

30

ADJUSTER, CHAIN | N,T

61411-01002

$7.37

31

.NUT | N,T This part replaces 08310-11068.

08310-00067

$2.13

32

LOCK WASHER | N,T This part replaces 08321-21068.

08321-01067

$2.13

33

WASHER | N,T This part replaces 08322-21068.

08322-01067

$2.13

34

TIRE (3,00-14) | N,T

65100-46215

Unavailable

35

TUBE ASSY, INNER | N,T This part replaces 55200-24010.

65200-02B40

Unavailable

36

PROTECTOR,INNER | N,T This part replaces 55261-24010.

55261-24020

$3.45

37

NO DESCRIPTION AVAILABLE | N,T This part replaces 65311-26320.

55311-09D00

Unavailable

38

SPOKE ASSY, REAR | N,T This part replaces 65300-24807.

65320-20300

Unavailable
