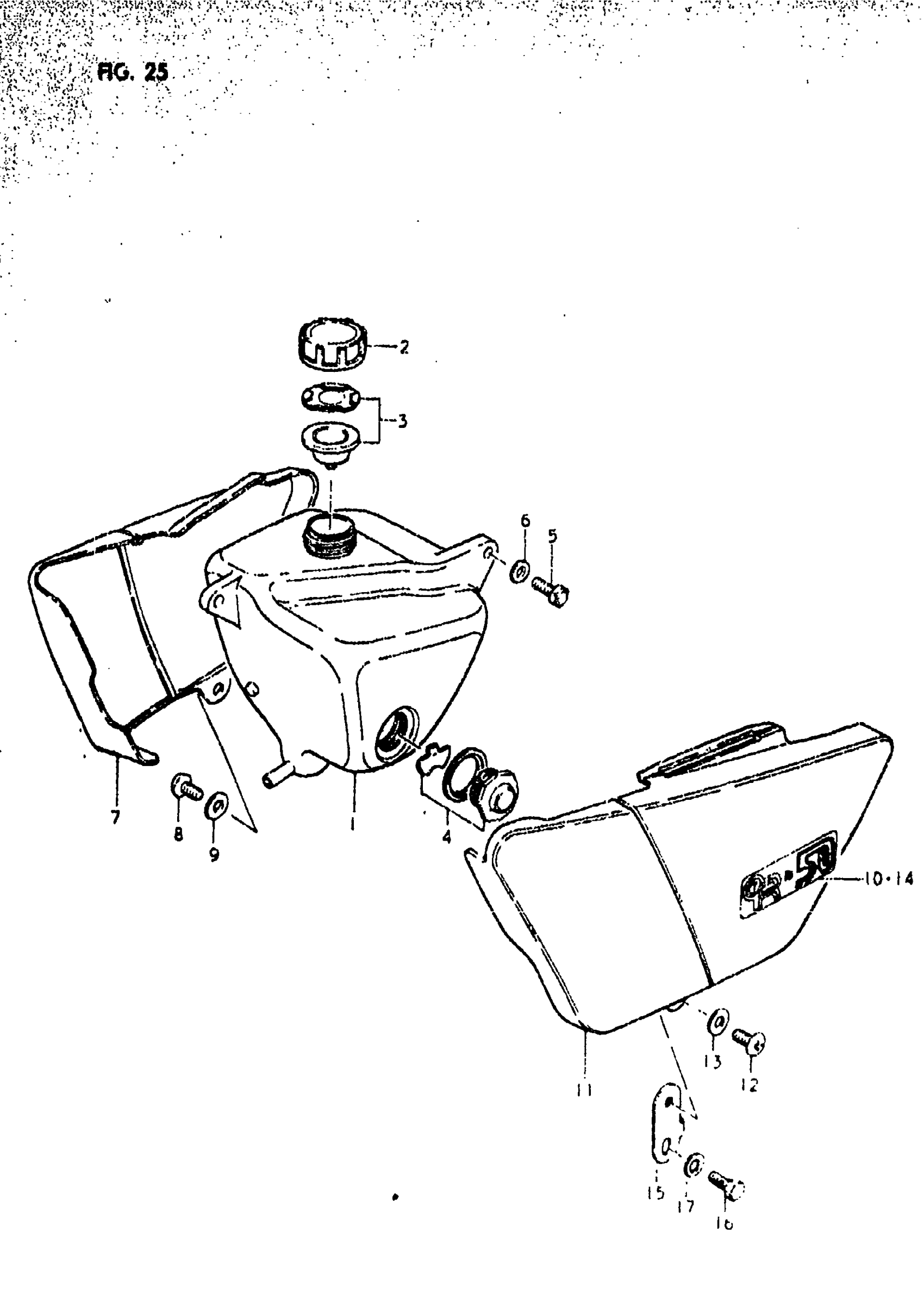

Suzuki OR50 (1980) OIL TANK - FRAME COVER Diagram

#

Description
Price

1

TANK, OIL | N,T

44611-46200

Unavailable

2

CAP, OIL TANK | N,T

44651-05003

$4.84

3

GASKET SET | N,T This part replaces 44600-30832.

44600-30833

$5.19

4

OIL LVL INSPECT | N,T This part replaces 44600-46810.

44600-46811

$7.60

5

BOLT, CANISTER | N,T This part replaces 01107-06168.

01500-06167

$2.01

6

WASHER | N,T This part replaces 09160-06007.

09160-06084

$1.82

7

COVER, FRAME RH (BLACK) | N,T

47111-46200-291

Unavailable

8

SCREW | N,T

02142-06127

$1.43

9

WASHER | N,T This part replaces 09160-06007.

09160-06084

$1.82

10

EMBLEM (OR50) | N,T

68131-46220

Unavailable

11

COVER, FRAME LH (BLACK) | N,T

47211-46200-291

Unavailable

12

SCREW | N,T

02142-06127

$1.43

13

WASHER | N,T This part replaces 09160-06007.

09160-06084

$1.82

14

EMBLEM (OR50) | N,T

68131-46220

Unavailable

15

PLATE, FRAME COVER | N,T

47140-46200

Unavailable

16

BOLT | N,T This part replaces 01107-06128.

01500-06127

$2.01

17

WASHER | N,T This part replaces 08322-21068.

08322-01067

$1.94
