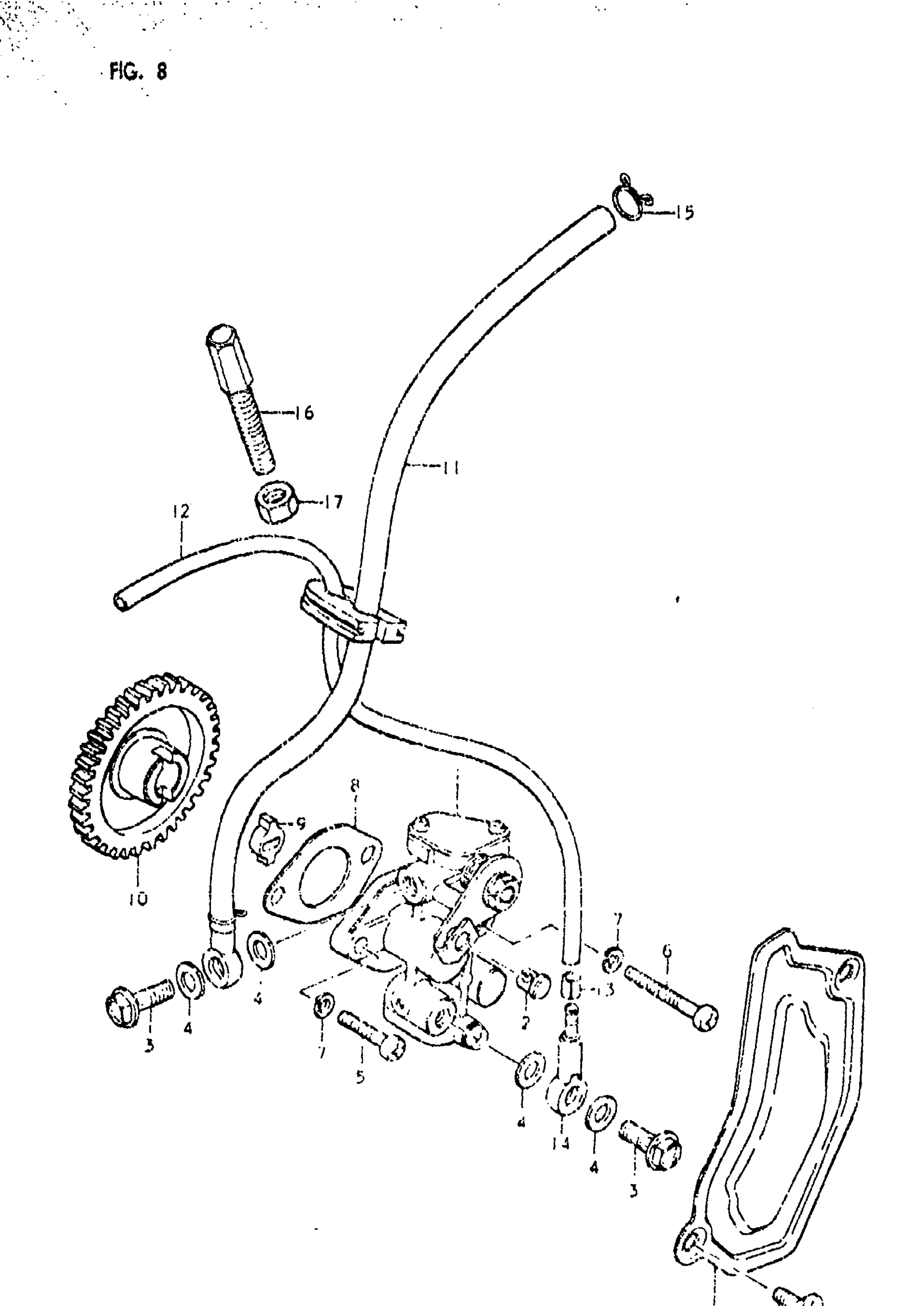

Suzuki OR50 (1980) OIL PUMP Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | N,T This part replaces 16100-46111.

16100-46112

Unavailable

2

TERMINAL, CABLE | N,T This part replaces 16292-03111.

16292-03112

$5.05

3

UNION BOLT | N,T

09360-06003

$3.76

4

GASKET | N,T

09168-06004

$1.49

5

SCREW | N,T This part replaces 02112-05168.

02112-05167

$1.97

6

SCREW | N,T This part replaces 02112-05308.

02112-0530A

$2.05

7

LOCK WASHER | N,T This part replaces 08321-21058.

08321-0105A

$1.84

8

GASKET, OIL PUMP | N,T

16731-03101

$2.81

9

PIECE, DRIVE | N,T This part replaces 16391-05030.

16391-05031

$3.65

10

GEAR, OIL PUMP DRIVE | N,T

16320-46131

Unavailable

11

HOSE, OIL (L:512!97) | N,T This part replaces 16810-46100.

16810-07520

Unavailable

12

HOSE,NO.2 | N,T This part replaces 16820-46101.

16820-46103

Unavailable

13

CLIP | N,T

09401-04401

$2.06

14

CHECK BALVE | N,T

16710-35010

Unavailable

15

CLAMP | N,T

09401-08401

$1.54

16

ADJUSTER | N,T

09119-08014

$3.55

17

NUT | N,T This part replaces 08310-12086.

08310-0008A

$1.84

18

NO DESCRIPTION AVAILABLE | N,T This part replaces 11385-46100.

11301-46890

Unavailable

19

SCREW | N,T This part replaces 02122-06128.

02122-06127

$1.84
