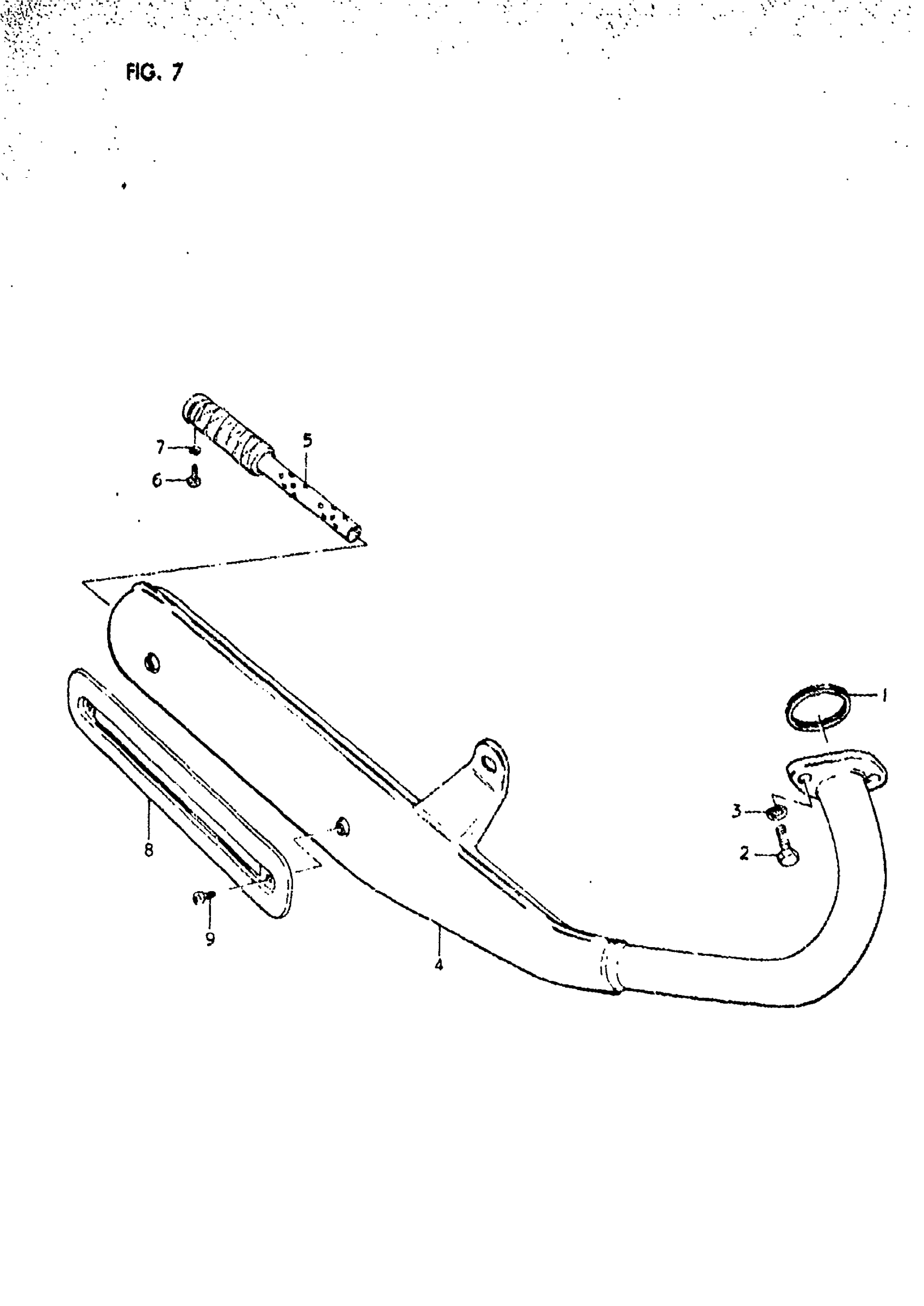

Suzuki OR50 (1980) MUFFLER Diagram

#

Description

Price

1

.GASKET,EXHAUST | N,T This part replaces 14181-05010.

14181-18C00

$7.22

2

BOLT | N,T This part replaces 01107-08258.

01500-08257

$2.50

3

.LOCK WASHER | N,T This part replaces 08321-21088.

08321-01087

$2.13

4

NO DESCRIPTION AVAILABLE | N,T; Includes Item(s) 5 - 7 This part replaces 14301-46210.

14301-46210-H01

Unavailable

5

PIPE, BUFFLE | N,T

14510-46200

Unavailable

6

SCREW | N,T

09128-05004

Unavailable

7

LOCK WASHER | N,T This part replaces 08321-21058.

08321-0105A

$1.84

8

COVER, MUFFLE | N,T

14781-46200

Unavailable

9

SCREW | N,T This part replaces 02112-06088.

02112-06087

$1.49
