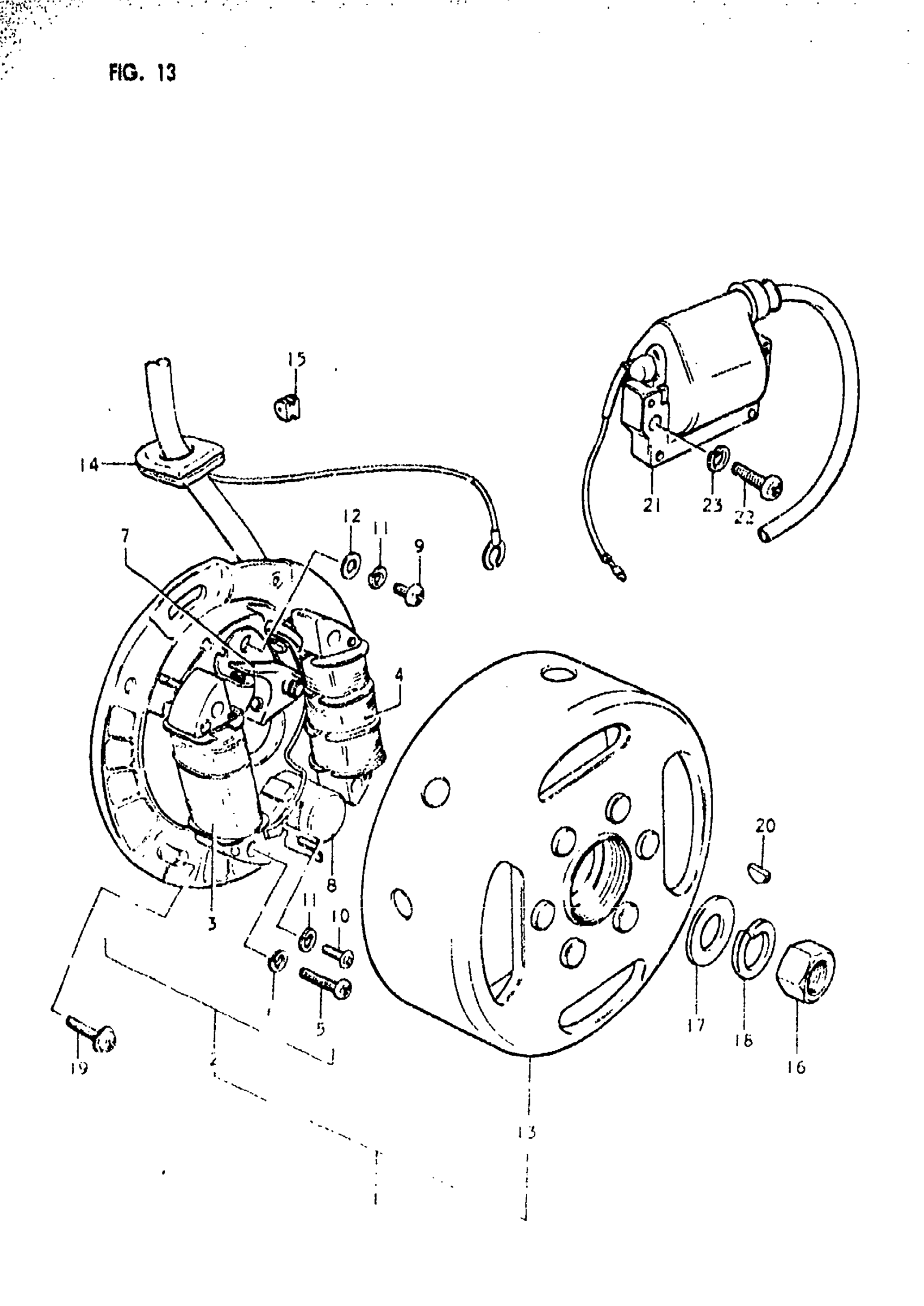

Suzuki OR50 (1980) MAGNETO Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | N,T; Includes Item(s) 2 - 13 This part replaces 32100-46230.

32101-46231

Unavailable

2

NO DESCRIPTION AVAILABLE | N,T This part replaces 32101-46230.

32101-46231

Unavailable

3

COIL, LIGHTING | N,T

32120-46230

Unavailable

4

COIL, PRIMARY | N,T

32140-46230

Unavailable

5

SCREW | N,T This part replaces 02112-04258.

02112-0425B

$2.34

6

LOCK WASHER | N,T This part replaces 08321-21048.

08321-0104A

$1.84

7

CONTACT POINT | N,T

32240-46130

Unavailable

8

CONDENSER | N,T

32341-26030

Unavailable

9

SCREW | N,T

09125-04001

Unavailable

10

SCREW | N,T This part replaces 02112-04108.

02112-04107

$1.55

11

LOCK WASHER | N,T This part replaces 08321-21048.

08321-0104A

$1.84

12

WASHER | N,T This part replaces 08322-21048.

08322-01047

$1.86

13

ROTOR | N,T

32102-46131

Unavailable

14

GROMMET | N,T This part replaces 09309-09006.

09309-09007

Unavailable

15

GROMMET | N,T

32742-32021

Unavailable

16

NUT | N,T This part replaces 09140-10003.

09140-10041

$2.38

17

WASHER | N,T This part replaces 08322-21108.

08322-01107

$2.15

18

LOCK WASHER | N,T This part replaces 08321-21108.

08321-01107

$1.84

19

SCREW | N,T

09139-05011

$2.38

20

KEY | N,T

08341-31039

$1.89

21

NO DESCRIPTION AVAILABLE | N,T This part replaces 33410-46130.

33410-23011

Unavailable

22

SCREW | N,T This part replaces 02112-06258.

02112-06257

$1.78

23

LOCK WASHER | N,T This part replaces 08321-21068.

08321-01067

$2.13
