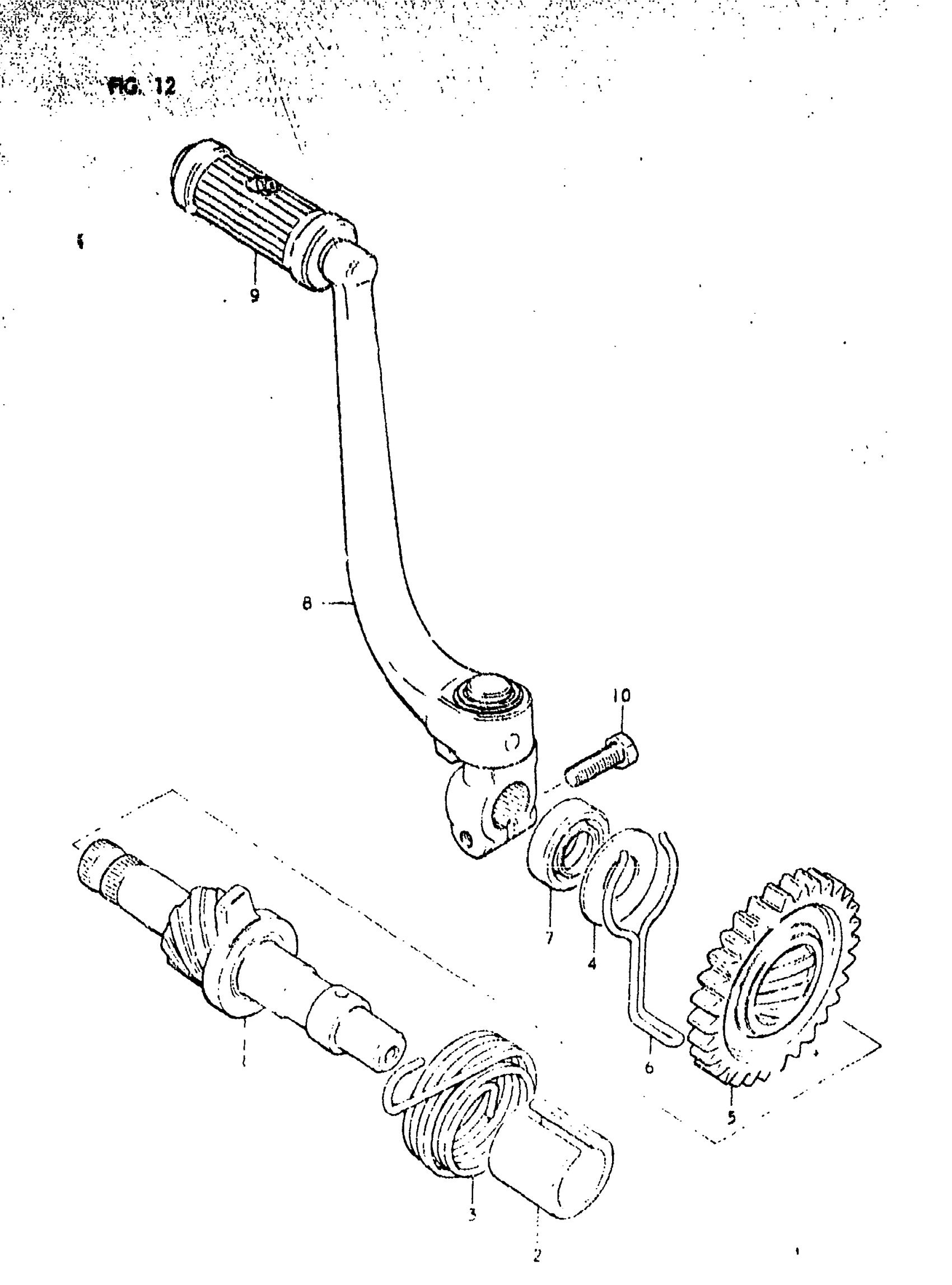

Suzuki OR50 (1980) KICK STARTER Diagram

#

Description

Price

1

SHAFT, KICK STARTER | N,T

26210-46001

$67.10

2

GUIDE, SHAFT SPRING | N,T

26221-46000

$8.12

3

SPRING | N,T

09448-40001

$6.32

4

WASHER (14X29X1.5) | N,T This part replaces 09160-14005.

09160-14046-XC0

$4.83

5

GEAR, KICK STARTER DRIVE | N,T

26241-46000

$70.30

6

RETAINER SPRING | N,T

09384-28001

$2.45

7

OIL SEAL (14X24X6) | N,T This part replaces 09285-14001.

09285-14002

$16.88

8

LEVER ASSY, KICK STARTER | N,T; Includes Item(s) 9

26300-46102

Unavailable

9

RUBBER,KICK STA | N,T This part replaces 26352-01000.

26352-01020

$3.25

10

BOLT | N,T This part replaces 01107-06208.

01500-06207

$2.28
