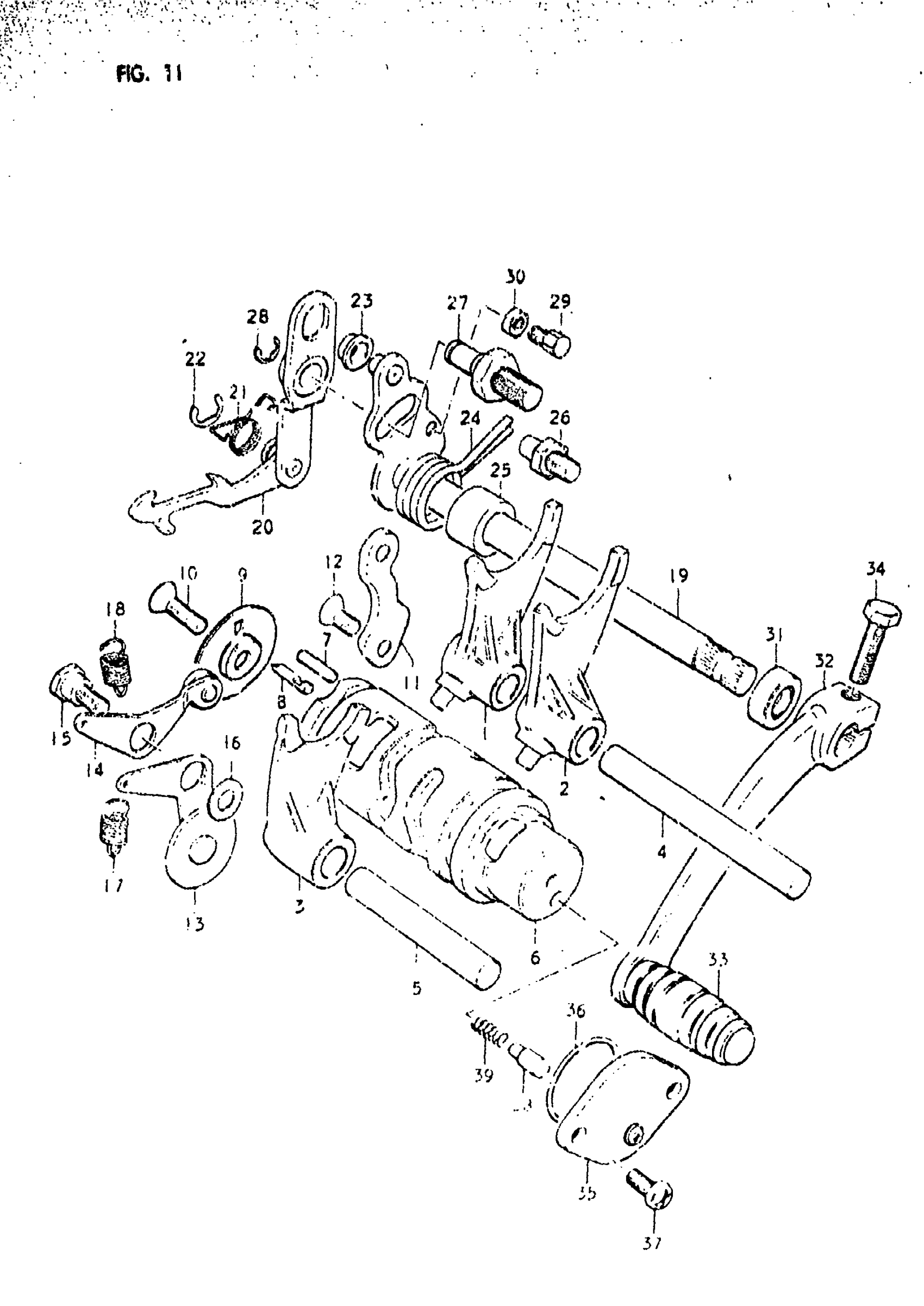

Suzuki OR50 (1980) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFTING NO. 1 | N This part replaces 25211-46002.

25211-46003

Unavailable

1

FORK, GEAR SHIFTING NO.1 | T

25211-46003

Unavailable

2

FORK, GEAR SHIFTING NO.2 | N,T

25221-46000

Unavailable

3

FORK, GEAR SHIFTING NO.3 | N,T

25231-40000

Unavailable

4

SHAFT, NO.2 | N,T This part replaces 25411-40000.

25411-14331

$23.07

5

SHAFT, NO.1 | N,T This part replaces 25421-40000.

25421-35410

$23.47

6

CAM, GEAR SHIFTING | N,T This part replaces 25311-46000.

25311-46001

Unavailable

7

PIN | N,T

09261-04009

$1.56

8

PIN | N,T

09209-04015

Unavailable

9

RETAINER, DRIVE PIN | N,T

25322-46000

$7.77

10

SCREW | N,T This part replaces 02122-06208.

02122-0620A

$1.49

11

GUIDE, GEAR SHIFTING CAM | N,T

25341-46000

Unavailable

12

SCREW | N,T This part replaces 02122-06128.

02122-06127

$1.84

13

STOPPER, GEAR SHIFTING CAM | N,T

25350-46000

Unavailable

14

STOPPER, CAM NEUTRAL | N,T

25390-46001

Unavailable

15

BOLT | N,T

09111-06020

Unavailable

16

WASHER | N,T This part replaces 08322-21068.

08322-01067

$2.13

17

SPRING | N,T

09443-08017

$2.23

18

SPRING | N,T

09443-10017

Unavailable

19

SHAFT, GEAR SHIFTING | N,T

25510-46002

$44.07

20

PAWL | N,T This part replaces 25513-46004.

25540-46004

Unavailable

21

SPRING | N,T

09448-13006

$2.53

22

E RING | N,T This part replaces 08332-11078.

08332-1107A

$1.78

23

ROLLER | N,T

09180-07014

$4.11

24

SPRING | N,T This part replaces 09444-26016.

09444-26015

Unavailable

25

SPACER | N,T

09180-12068

$3.16

26

STOPPER, ARM | N,T This part replaces 25671-01000.

25671-01011

$4.48

27

STOPPER, ARM | N,T This part replaces 25672-46001.

25672-46002

Unavailable

28

CIRCLIP | N,T This part replaces 08332-11068.

08332-1106A

$1.49

29

BOLT | N,T

25673-46000

Unavailable

30

.NUT | N,T This part replaces 08310-22068.

08310-00067

$2.13

31

OIL SEAL (12X22X9) | N,T This part replaces 09285-12002.

09285-12006

$6.32

32

LEVER, GEAR SHIFTING | N,T; Includes Item(s) 33

25600-46100

Unavailable

33

.RUBBER,GEAR SHIFT PEDAL | N,T This part replaces 25652-16500.

25652-16510

$3.74

34

BOLT | N This part replaces 01107-06208.

01500-06207

$2.28

34

BOLT | T This part replaces 09100-06091.

01500-06207

$2.28

35

BODY, GEAR SHIFTING SWITCH | N,T

37720-29350

$15.42

36

O RING (D:2.4,ID:26.2) | N,T This part replaces 09280-26003.

09280-26005

$2.30

37

SCREW | N,T This part replaces 02112-05128.

02112-05127

$1.97

38

CONTACT | N,T

09209-05011

$2.20

39

SPRING (3.40x4.50x12.52) | N,T

09440-04010

$1.54
