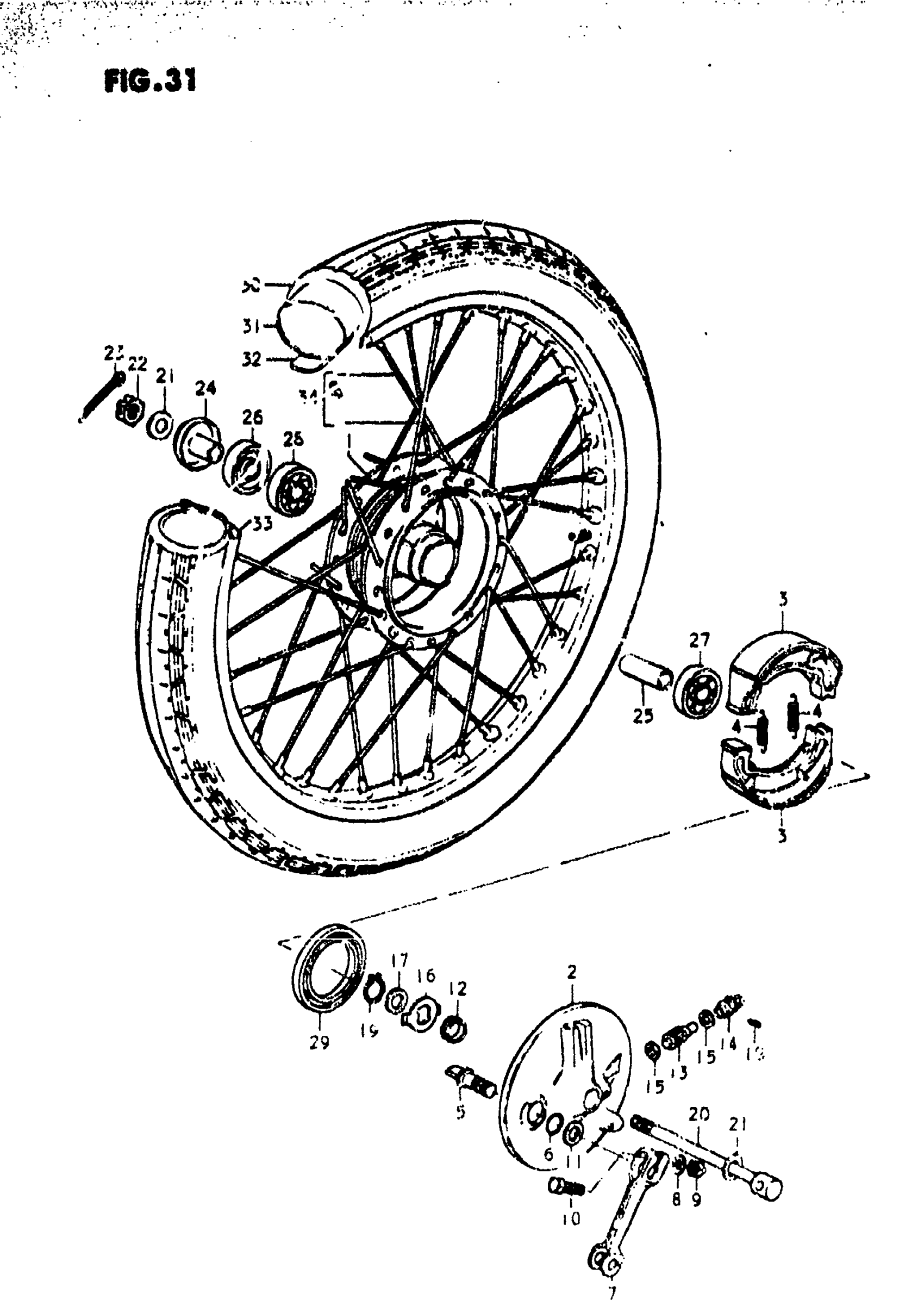

Suzuki OR50 (1980) FRONT WHEEL Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | N,T This part replaces 54110-46021.

54110-46002

Unavailable

2

NO DESCRIPTION AVAILABLE | N,T This part replaces 54210-46122.

54210-46104

Unavailable

3

SHOE/SPRING SET | N This part replaces 54410-35000.

54400-35860

$36.32

3

SHOE & SPRING S | T This part replaces 54410-43020.

54400-43880

$39.22

4

SPRING | N,T This part replaces 09443-07001.

09443-07025

$2.08

5

CAM, BRAKE | N This part replaces 54441-29301.

54441-29305

$20.02

5

CAM, BRAKE | T This part replaces 54441-29302.

54441-29305

$20.02

6

O RING (D:2.5,ID:13.8) | N,T This part replaces 09280-14003.

09280-14011

$4.77

7

LEVER, BRAKE CAM | N,T

54451-46110

Unavailable

8

WASHER | N,T This part replaces 08322-21068.

08322-01067

$2.13

9

.NUT | N,T This part replaces 08310-11068.

08310-00067

$2.13

10

BOLT | N,T

09100-06078

$2.38

11

WASHER | N,T This part replaces 09160-14001.

09160-14055

$2.39

12

NO DESCRIPTION AVAILABLE | N,T This part replaces 54611-24900.

54611-24901

Unavailable

13

NO DESCRIPTION AVAILABLE | N,T This part replaces 54621-24900.

54621-27601

Unavailable

14

BUSHING | N,T

54632-01001

$12.80

15

WASHER,5.1X9X0. | N,T This part replaces 09160-05001.

09160-05001-A05

$1.87

16

DRIVER, DRIVE GEAR | N,T

54661-03000

Unavailable

17

THRUST WASHER | N,T

09160-16005

Unavailable

18

SCREW,3X4.3 | N,T This part replaces 09134-03101.

09134-03101-A05

$1.78

19

CIRCLIP | N,T This part replaces 08331-31159.

08331-3115A

$2.25

20

NO DESCRIPTION AVAILABLE | N,T This part replaces 54711-46100.

54711-46101

Unavailable

21

WASHER | N,T

09160-10039

$2.26

22

NUT | N,T This part replaces 08314-31108.

08314-3110A

$1.99

23

COTTER PIN | N,T This part replaces 04111-20208.

04111-2020A

$1.49

24

SPACER, FR AXLE RH | N,T This part replaces 54740-26100.

54740-26101

$18.87

25

SPACER (10.2X16X51) | N,T This part replaces 09180-10005.

09180-10148

$8.18

26

OIL SEAL (15X31X5) | N,T

09284-15001

$4.73

27

BEARING | N,T This part replaces 08143-63007.

08143-6300B

$15.33

28

BEARING | N,T

08113-62000

$13.63

29

OIL SEAL | N,T This part replaces 09285-43001.

09283-43004

$14.03

30

TIRE (2.50-15 4PR) | N,T

55100-46215

Unavailable

31

TUBE, INNER (2.50-15) | N,T

55200-46210

Unavailable

32

PROTECTOR | N,T

55261-46210

Unavailable

33

RIM, WHEEL | N,T

55311-46220

Unavailable

34

NO DESCRIPTION AVAILABLE | N,T This part replaces 55300-46820.

55320-46220

Unavailable
