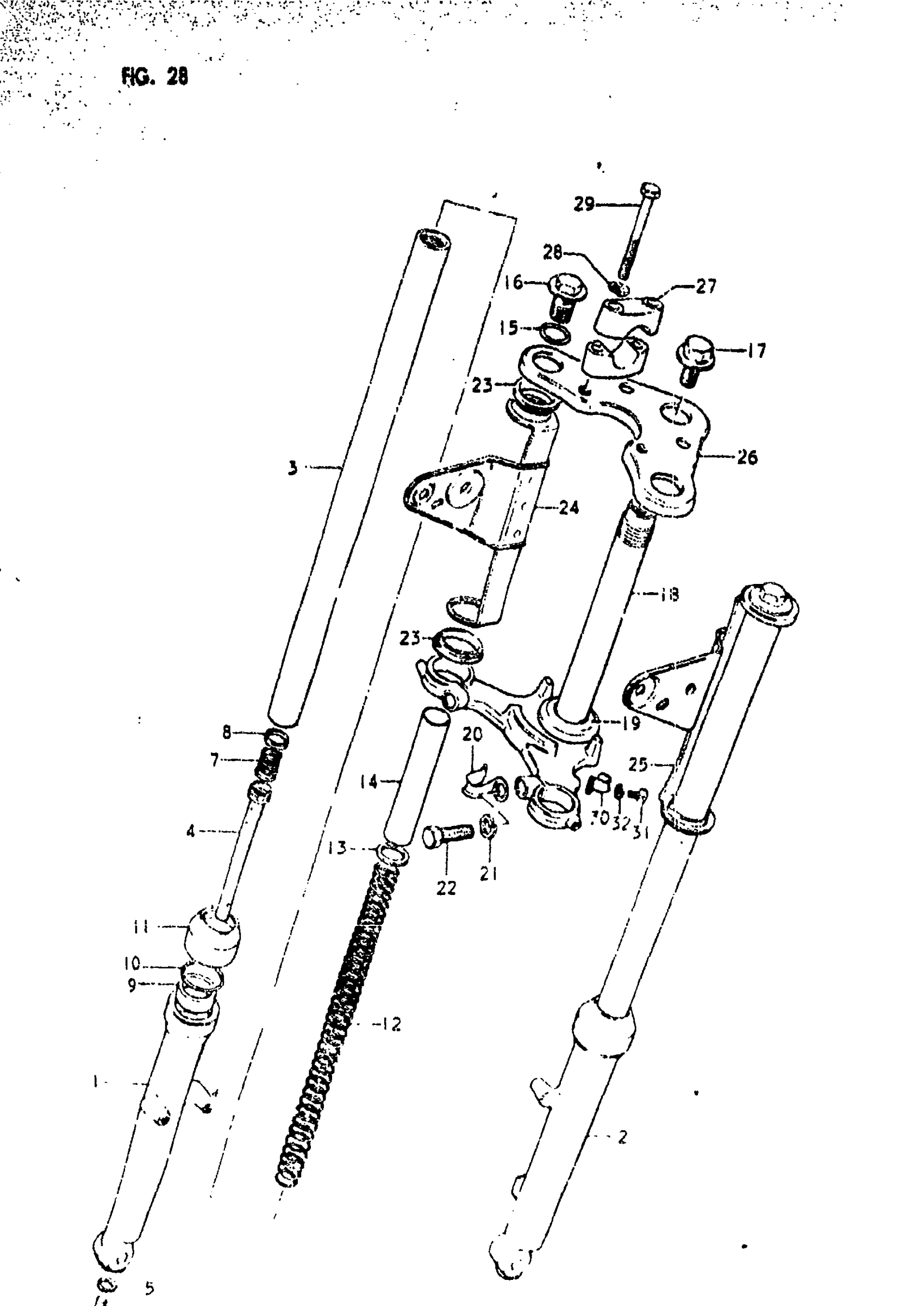

Suzuki OR50 (1980) FRONT FORK (OR50N) Diagram

#

Description
Price

FORK ASSY, FRONT (BLACK) | Includes Item(s) 1 - 32

51100-46220-291

Unavailable

1

TUBE, OUTER RH (BLACK)

51131-46201-291

Unavailable

2

TUBE, OUTER LH (BLACK)

51141-46201-291

Unavailable

3

TUBE, INNER

51110-46190

Unavailable

4

PIPE, SEAT

51146-46100

Unavailable

5

O RING This part replaces 51148-31030.

51148-36011

$3.56

6

BOLT This part replaces 51147-31030.

51147-48130

$4.34

7

SPRING

51177-46100

Unavailable

8

RING, PISTON

51196-46100

$8.42

9

OIL SEAL This part replaces 51153-46100.

51153-03400

$13.56

10

RING, OIL SEAL STOPPER This part replaces 51156-46100.

51156-48130

$5.32

11

SEAL,DUST This part replaces 51571-46100.

51571-46101

$5.64

12

SPRING

51171-46190

Unavailable

13

JOINT, SPRING

51192-46100

$4.52

14

SPACER

51176-46100

Unavailable

15

O RING (D:2.4,ID:17.8) This part replaces 51181-46190.

09280-18004

$5.18

16

BOLT

51351-46190

$20.45

17

BOLT

51352-46101

$11.83

18

NO DESCRIPTION AVAILABLE This part replaces 51410-46190.

51410-46600

Unavailable

19

RACE, OUTER LOWER

51621-33001

$16.25

20

CLIP, METER CABLE This part replaces 51452-08030.

51452-08010

Unavailable

21

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

22

BOLT This part replaces 01107-10308.

01500-1030A

$3.16

23

CUSHION

51553-46100

$6.23

24

BRACKET, HEADLAMP RH (BLACK)

51530-46190-291

Unavailable

25

BRACKET, HEADLAMP LH (BLACK)

51540-46190-291

Unavailable

26

STEM HEAD, STEERING (BLACK)

51311-46190-291

Unavailable

27

HOLDER, HANDLE, UPPER This part replaces 56211-27130-291.

56211-27200-291

$17.90

28

LOCK WASHER This part replaces 08321-21086.

08321-0108A

$1.84

29

BOLT This part replaces 01107-08558.

01500-08557

$3.16

30

CLIP

51452-05130

Unavailable

31

SCREW This part replaces 02112-06088.

02112-06087

$1.49

32

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
