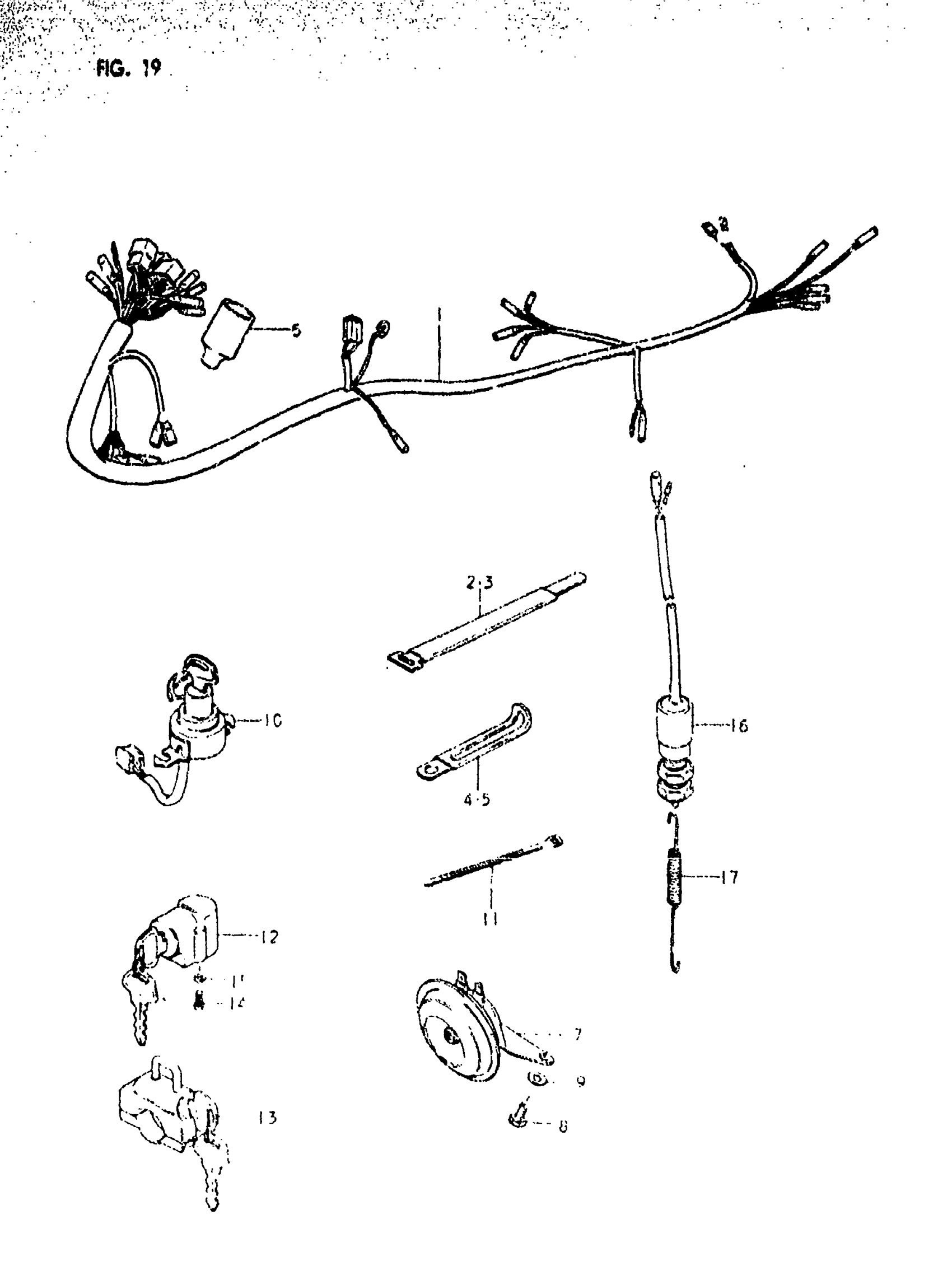

Suzuki OR50 (1980) ELECTRICAL (1) Diagram

#

Description
Price

1

WIRING HARNESS | N,T

36610-46210

Unavailable

2

CLAMP | N,T This part replaces 09407-18301.

09407-18302

$2.28

3

CLAMP | N,T This part replaces 09407-11302.

09407-18302

$2.28

4

CLAMP | N,T This part replaces 09404-06401.

09404-06039

$1.74

5

CLAMP (L:128) | N,T

09407-12402

$3.04

6

BOOT, WIRING HARRESS | N

36618-30000

$9.00

7

NO DESCRIPTION AVAILABLE | N This part replaces 38500-46232.

38500-46133

Unavailable

7

NO DESCRIPTION AVAILABLE | T This part replaces 38500-46233.

38500-46133

Unavailable

8

BOLT | N,T This part replaces 01107-06108.

01500-06107

$2.06

9

WASHER | N,T This part replaces 08322-21068.

08322-01067

$2.13

10

NO DESCRIPTION AVAILABLE | N,T This part replaces 37110-46230.

37110-46231

Unavailable

11

CLAMP (L:145) | N,T This part replaces 09407-14402.

09407-14407

$3.57

12

LOCK ASSY, STEERING | N,T This part replaces 51910-25310.

51910-25311

$40.33

13

LOCK ASSY, HELMET | N This part replaces 90001-31817.

95700-04113

Unavailable

13

LOCK ASSY, HELMET | T This part replaces 95700-04111.

95700-04113

Unavailable

14

SCREW | N,T This part replaces 02112-05128.

02112-05127

$1.97

15

LOCK WASHER | N,T This part replaces 08321-21058.

08321-0105A

$1.84

16

SWITCH, REAR BRAKE LAMP | N,T This part replaces 37740-04570.

37740-48071

$19.18

17

SPRING | N,T

09443-06011

$3.40
