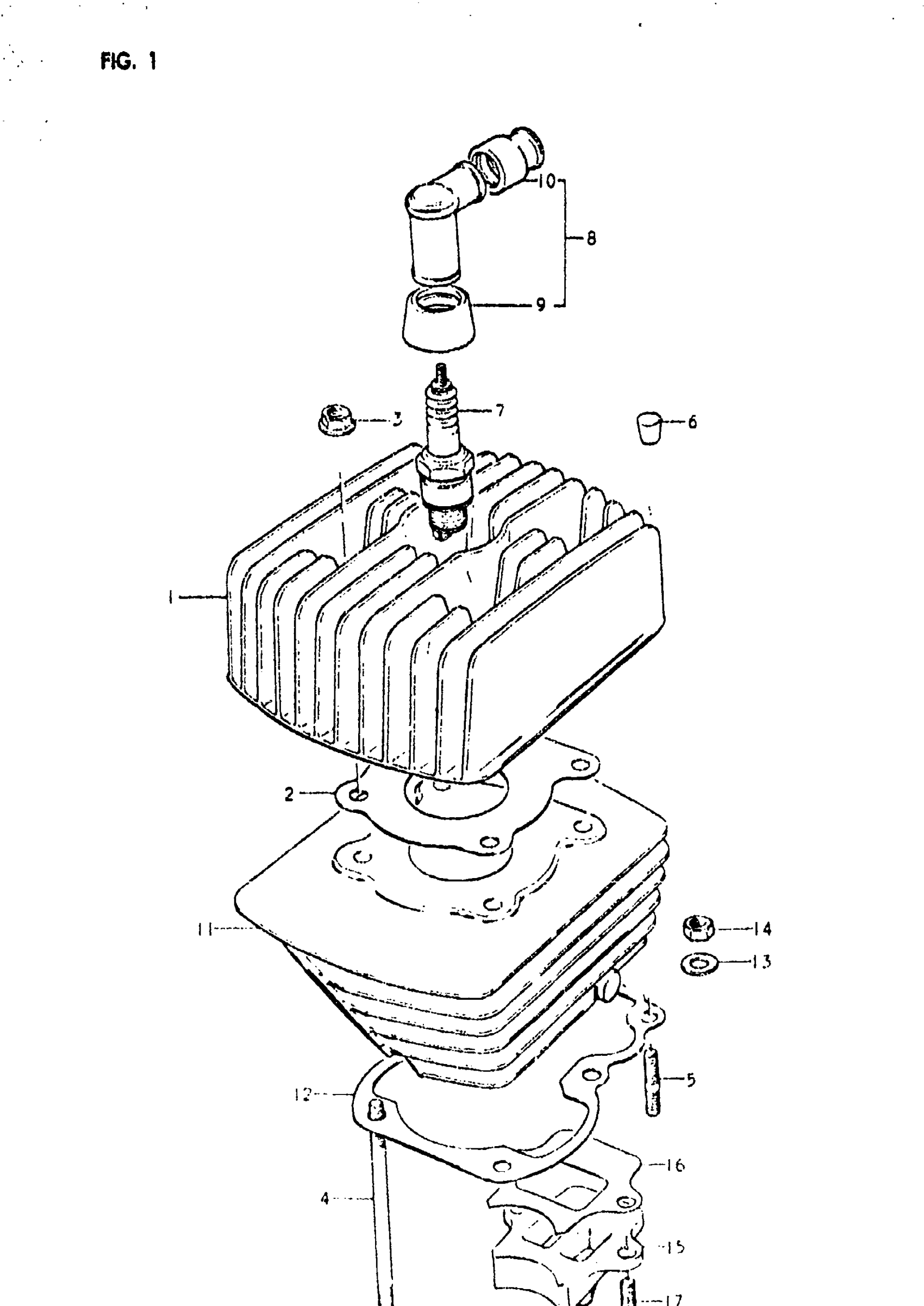

Suzuki OR50 (1980) CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD | N,T

11111-46100

Unavailable

2

GASKET | N,T

11141-46181

Unavailable

3

NUT | N,T This part replaces 08316-16058.

08316-1005A

$2.19

4

STUD BOLT | N,T

09108-06012

Unavailable

5

BOLT,STUD | N,T This part replaces 01421-06168.

01421-0616A

$1.91

6

PAD, CYLINDER HEAD RUBBER | N,T

11151-18600

Unavailable

7

SPARK PLUG (NGK, BP6HS) | N,T

09482-00084

$3.32

7

SPARK PLUG,W20F | N,T This part replaces 09482-00085.

09482-00302-111

$7.88

8

CAP SET,SPARK P | N,T; Includes Item(s) 9 - 10 This part replaces 33500-69810.

33500-69811

$22.48

9

SEAL, SPARK PLUG | N,T

33541-69010

$4.37

10

SEAL,HIGH TENSION CORD (SIDE) | N,T This part replaces 33542-98000.

33542-38B00

$4.34

11

CYLINDER | N,T

11210-46100

Unavailable

12

GASKET,CYL (NA) | N,T This part replaces 11241-46100.

11241-46130

$7.97

13

WASHER | N,T This part replaces 08322-21068.

08322-01067

$2.13

14

.NUT | N,T This part replaces 08310-11068.

08310-00067

$2.13

15

REED VALVE ASSY | N,T

13150-46011

Unavailable

16

GASKET, REED VALVE | N This part replaces 13156-46000.

13156-46001-H17

$2.83

16

GASKET, REED VALVE | T This part replaces 13156-46001.

13156-46001-H17

$2.83

17

SCREW | N,T This part replaces 02112-06168.

02112-06167

$1.49
