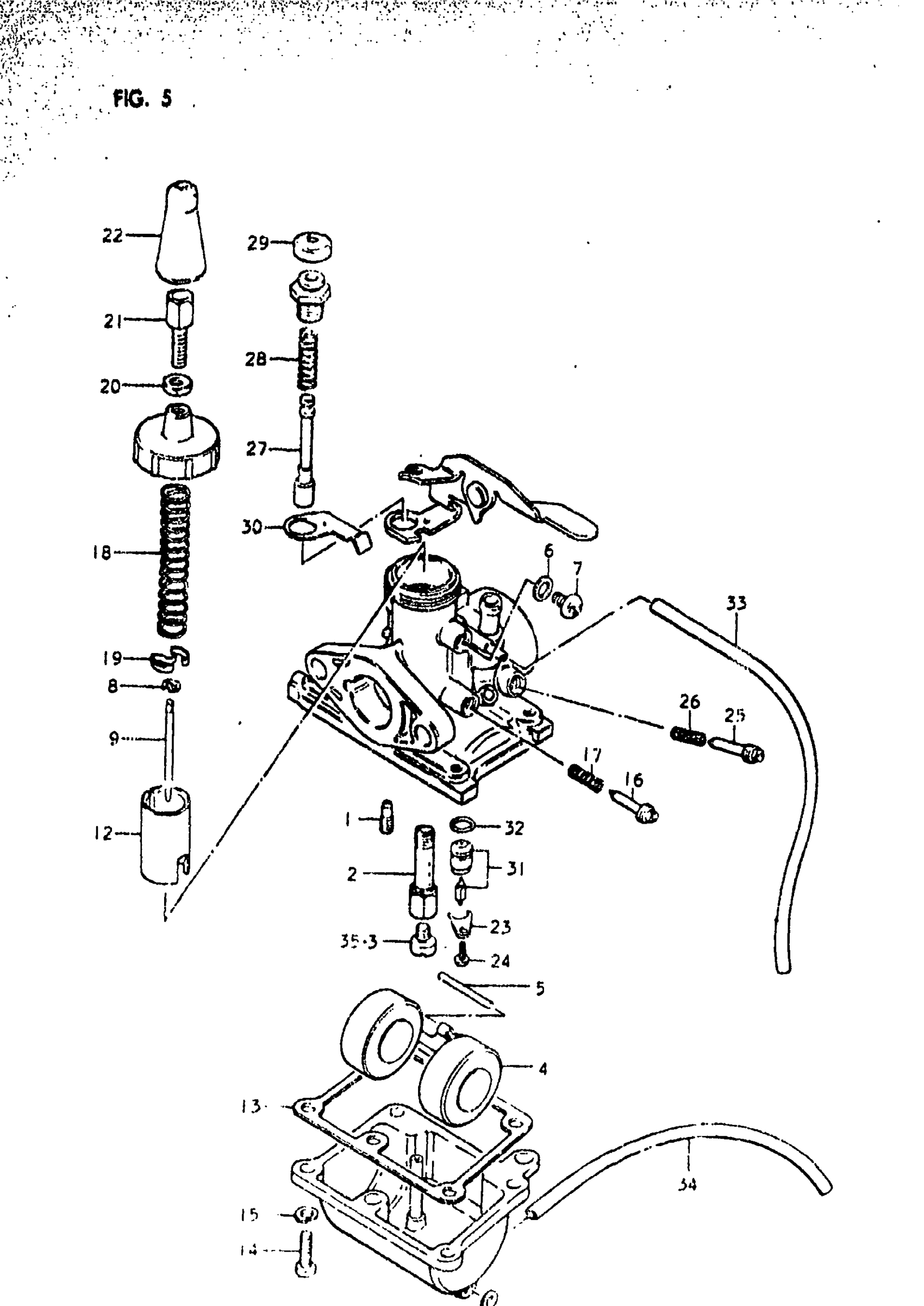

Suzuki OR50 (1980) CARBURETOR Diagram

#

Description
Price

NO DESCRIPTION AVAILABLE | N This part replaces 13200-46220.

13200-46221

Unavailable

CARBURETOR ASSY | T; Includes Item(s) 1 - 34

13200-46230

Unavailable

1

JET, PILOT NO.1 (15) | N,T This part replaces 09492-15002.

09492-15015

$16.78

2

JET (E-4) | N

09494-00049

Unavailable

2

JET (E-1) | T

09494-00173

Unavailable

3

NO DESCRIPTION AVAILABLE | N This part replaces 09491-75005.

09491-75009

Unavailable

3

JET (#67.5) | T

09491-67003

Unavailable

4

FLOAT | N,T

13252-46110

Unavailable

5

PIN, FLOAT | N,T

13254-20010

$4.28

6

WASHER | N,T This part replaces 13663-46710.

13523-46110

$2.70

7

SCREW | N,T This part replaces 02112-05068.

09125-05122

$2.06

8

E RING | N,T This part replaces 13394-12110.

13394-40D00

$5.43

9

NEEDLE, JET (3L10-3) | N

13383-46160

Unavailable

9

NEEDLE, JET (3N2-3) | T

13383-46230

Unavailable

10

PLUG, DRAIN | N,T

13247-05010

$5.11

11

GASKET, DRAIN PLUG | N,T

13249-05010

$1.98

12

VALVE, THROTTLE (CA:1.5) | N,T

13551-46710

Unavailable

13

GASKET, FLOAT CHAMBER | N,T

13251-46110

$9.48

14

SCREW | N,T This part replaces 02112-04168.

02112-0416A

$1.49

15

LOCK WASHER | N,T This part replaces 08321-21048.

08321-0104A

$1.84

16

SCREW, THROTTLE STOP | N,T

13267-01010

$7.73

17

SPRING, THROTTLE STOP SCREW | N,T

13268-01010

$5.28

18

SPRING, THROTTLE VALVE RETURN | N,T

13573-46710

Unavailable

19

PLATE | N,T This part replaces 13581-01010.

13581-07910

Unavailable

20

NUT, CABLE ADJUSTER | N,T

13661-16600

$4.64

21

ADJUSTER | N,T This part replaces 13577-03010.

13577-48110

$8.30

22

BOOT | N,T

13681-16601

$8.26

23

PLATE | N,T

13373-46710

$6.17

24

SCREW | N,T This part replaces 02112-03088.

02112-0308A

$1.80

25

SCREW, PLLOT AIR | N,T

13269-04010

$13.67

26

SPRING | N,T

13268-01010

$5.28

27

VALVE, STARTER | N,T

13411-15010

Unavailable

28

SPRING | N

13417-09110

$6.30

28

SPRING | T

13417-01010

$4.62

29

CAP | N,T

13416-46710

Unavailable

30

SPRING | N,T

13426-46710

Unavailable

31

VALVE ASSY, NEEDLE | N,T

13370-46710

$63.30

32

.O RING | N,T This part replaces 13374-47610.

13374-46710

$4.48

33

.HOSE (3X5X600) | N,T This part replaces 13683-39110.

09352-30504-600

$4.91

34

HOSE | N,T This part replaces 13684-30650.

13684-40A00

$9.58

35

NO DESCRIPTION AVAILABLE | N This part replaces 09491-70005.

09491-70010

Unavailable

35

NO DESCRIPTION AVAILABLE | N This part replaces 09491-72009.

09491-72012

Unavailable

35

JET, MAIN (75) | N This part replaces 09491-77003.

09491-77005

$11.83

35

JET, MAIN (180) | N This part replaces 09491-80007.

09491-80008

Unavailable

35

JET, MAIN (82.5) | N This part replaces 09491-82002.

09491-82003

Unavailable
