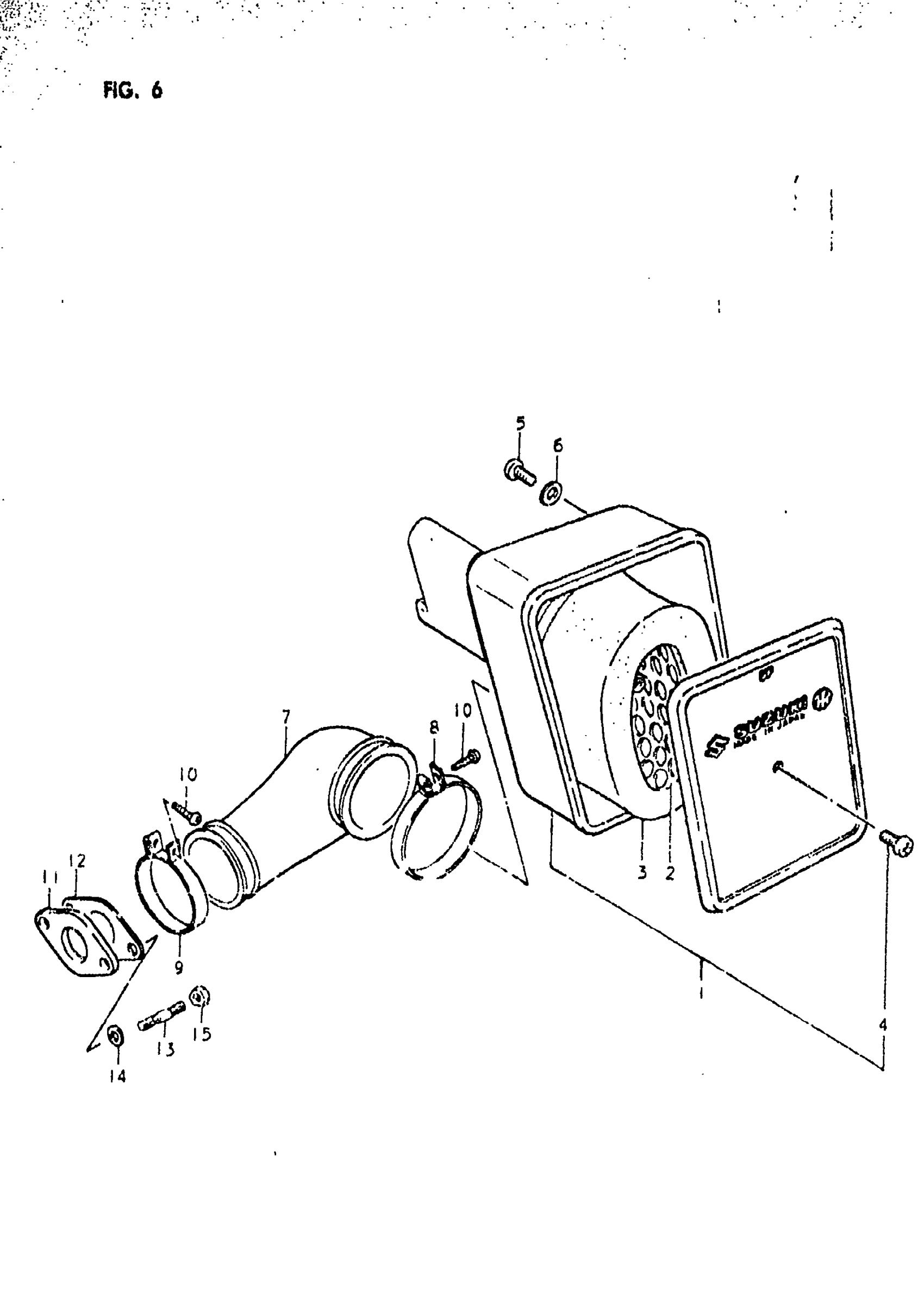

Suzuki OR50 (1980) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | N

13700-46421

Unavailable

1

CLEANER ASSY, AIR | T; Includes Item(s) 2 - 4

13700-46131

Unavailable

2

FILTER | N,T

13780-46121

Unavailable

3

ELEMENT | N,T

13781-46120

Unavailable

4

SCREW | N,T This part replaces 02112-06108.

02112-06107

$1.49

5

SCREW | N,T This part replaces 02112-06108.

02112-06107

$1.49

6

WASHER | N,T This part replaces 08322-21068.

08322-01067

$2.13

7

HOSE, AIR INLET | N,T

13881-46100

Unavailable

8

CLAMP | N,T This part replaces 09402-34306.

09402-34303

$6.70

9

CLAMP | N,T; Includes Item(s) 10 This part replaces 09402-42306.

09402-42303

$4.77

10

SCREW | N,T This part replaces 03111-04208.

03112-0420B

$2.70

11

INSULATOR, CARBURETOR | N,T

13129-46100

Unavailable

12

GASKET,CARBURET | N,T This part replaces 13125-46100.

13125-46110

$3.65

13

BOLT,STUD | N,T This part replaces 01411-06208.

01411-0620A

Unavailable

14

WASHER | N,T This part replaces 08322-21068.

08322-01067

$2.13

15

.NUT | N,T This part replaces 08310-11068.

08310-00067

$2.13
