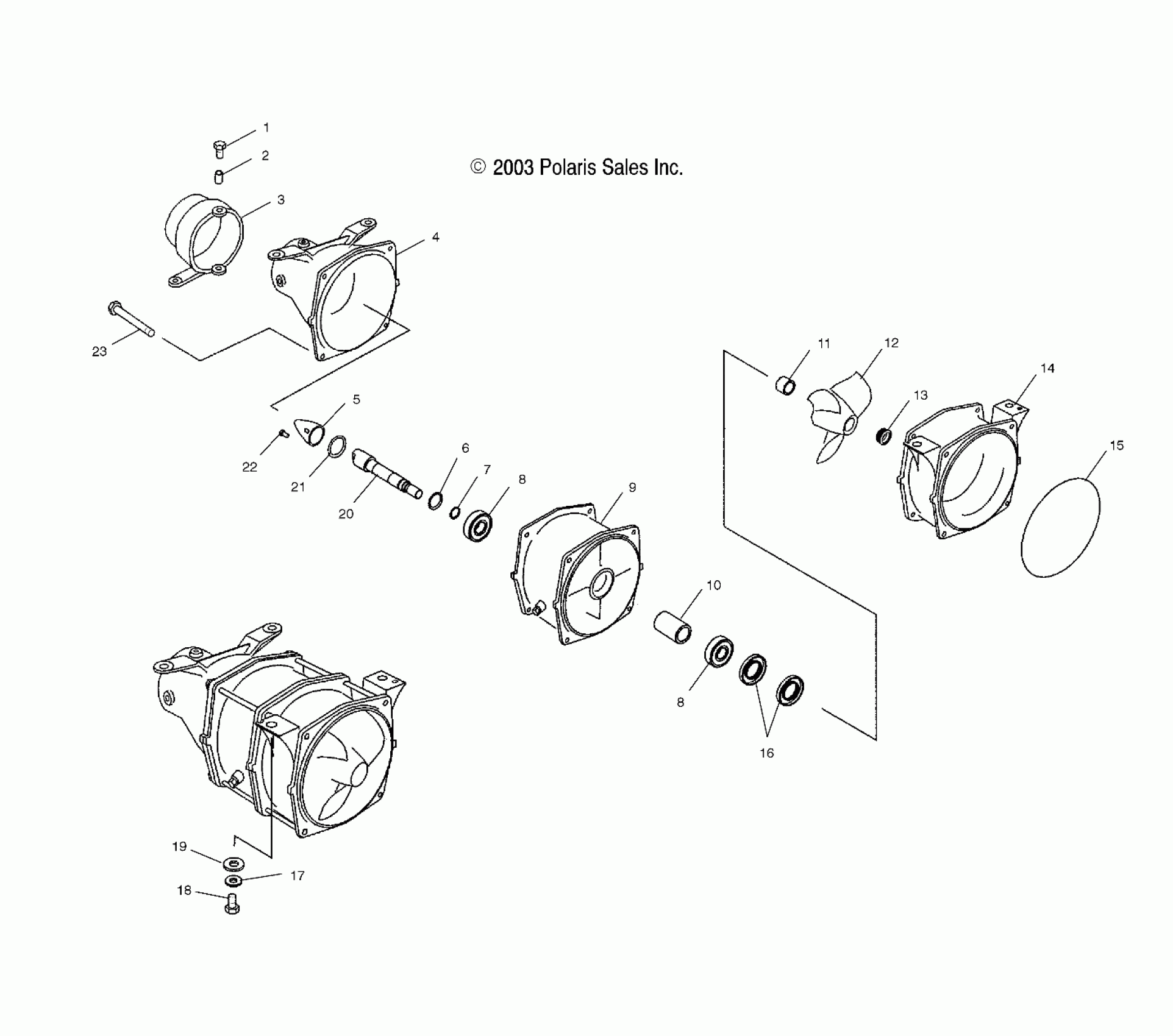

Polaris OCTANE - W045402DA PROPULSION - W045402DA (4990599059A11) Diagram

#

Description

Price

-

Asm., Pump [Incl. 3,4,9,12,14,23]

1350093

Unavailable

1

SCREW

-------

Unavailable

2

Collar, Steering Nozzle

5133570

Unavailable

3

Nozzle, Steering

5133569

Unavailable

4

Nozzle, Exit

5133568

Unavailable

4

Sleeve, Exit Nozzle

5133868

Unavailable

5

Cone, Pump, Stator

5434962

Unavailable

6

O-Ring

5410818

Unavailable

7

O-Ring

5410817

Unavailable

8

Bearing

3514008

Unavailable

8

Bearing

3514008

Unavailable

9

Stator, Pump

5133567

Unavailable

10

Spacer, Bearing

5010294

Unavailable

11

Spacer, Impeller

5010295

Unavailable

12

Impeller

5133565

Unavailable

13

Seal, Impeller/Shaft

5411644

Unavailable

14

Housing, Pump

5133566

Unavailable

15

Seal, Pump, Intake

5412274

Unavailable

16

Seal, Bearing, Stator

3610043

Unavailable

17

Washer, Lock

7552608

Unavailable

18

Screw

7518237

Unavailable

19

Washer, Flat

7556251

Unavailable

20

Shaft, Stub

5132674

Unavailable

21

O-Ring, Cone Pump, Stator

5812463

Unavailable

22

Screw, Tailcone

7518203

Unavailable

23

Bolt, Pump

7518075

Unavailable
