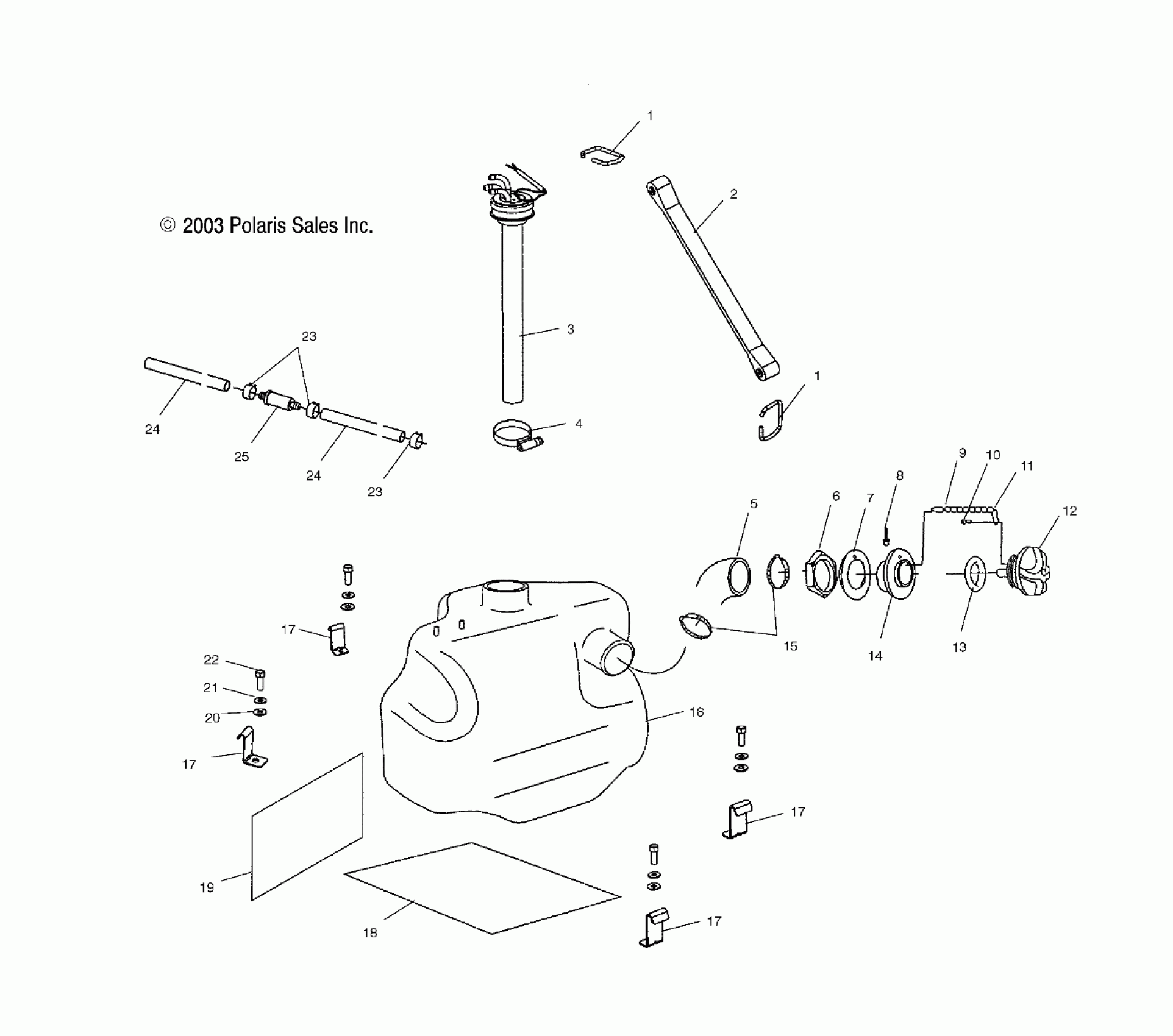

Polaris OCTANE - W045402DA FUEL TANK - W045402DA (4990599059A06) Diagram

#

Description
Price

1

D-Hook

5224472

Unavailable

1

D-Hook

5224472

Unavailable

2

Strap, Rubber

5410854

Unavailable

3

Asm., Sender, Pickup

2410124

Unavailable

4

Clamp, Hose

7080766

$2.06

5

Hose, Inlet

5412253

$27.94

6

Nut, Inlet

5433621

$17.44

7

Seal, Inlet

5811492

$20.59

8

Rivet

7621229

Unavailable

9

Chain, Bead, Cap Retainer

7080710

Unavailable

10

Screw

7511873

Unavailable

11

Coupling, End, Cap Chain

7080442

Unavailable

12

Asm., Cap, Ratchet

2520177

Unavailable

13

Seal, Cap

5411305

Unavailable

14

Inlet

5433553

$13.89

15

CLAMP, HOSE

7080451

$7.14

16

Tank, Fuel

5434690

Unavailable

17

Bracket, Strap

5244279

Unavailable

17

Bracket, Strap

5244279

Unavailable

17

Bracket, Strap

5244279

Unavailable

17

Bracket, Strap

5244279

Unavailable

18

Pad, Tank

5812407

Unavailable

19

Pad, Tank, Rear

5812440

$4.16

20

Washer

7555882

$2.06

21

Washer, Lock

7552613

Unavailable

22

Screw

7516805

$0.71

23

Clamp, Hose

7080476

$6.35

23

Clamp, Hose

7080476

$6.35

24

Line, Fuel

8450104

Unavailable

24

Line, Fuel

8450104

Unavailable

25

Filter, Fuel

2530008

$5.65
