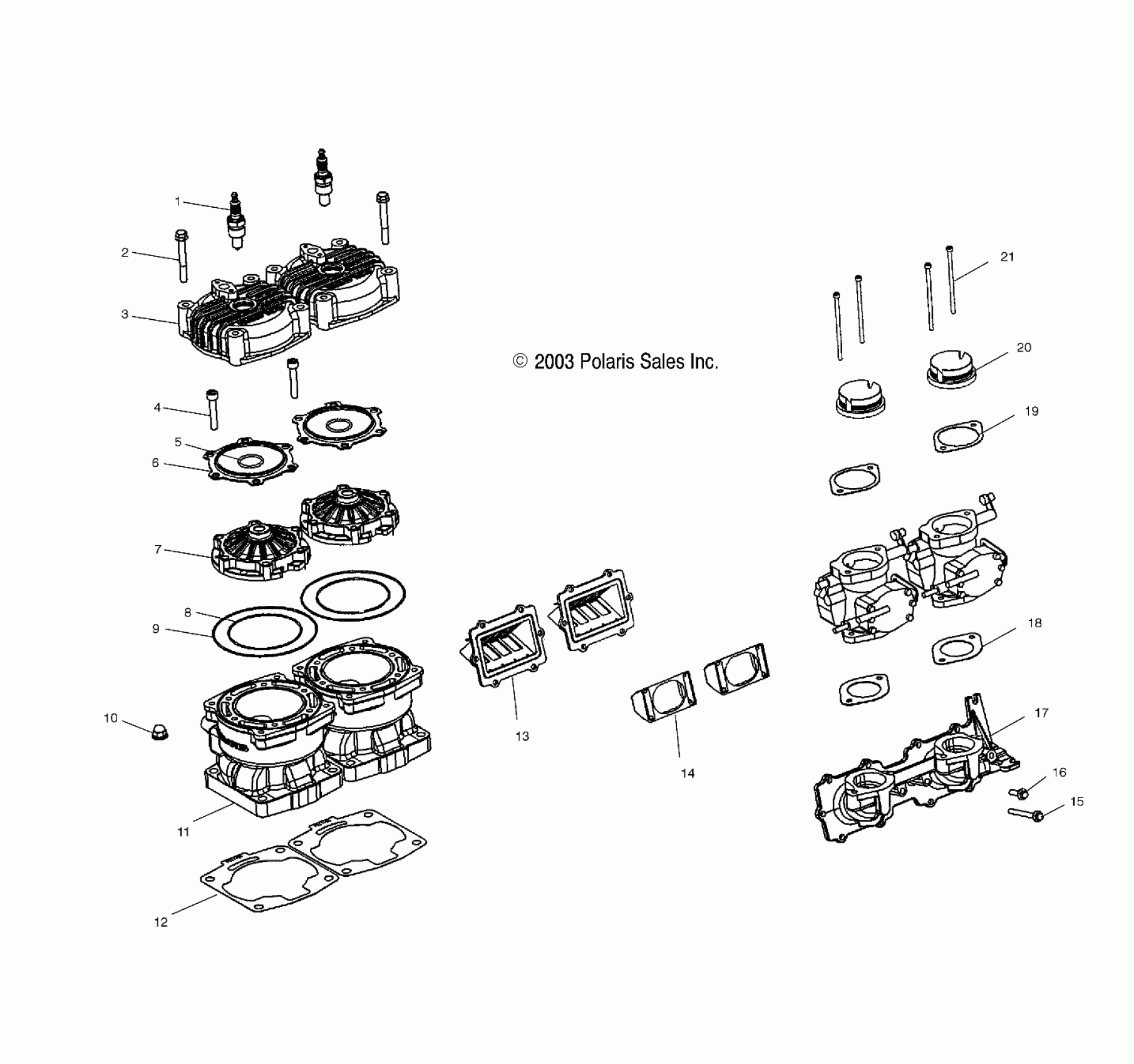

Polaris OCTANE - W045402DA CYLINDER and MANIFOLD - W045402DA (4990599059B09) Diagram

#

Description
Price

1

SPARK PLUG-NGK BR9ES

3070163

$3.99

2

Bolt

7516722

Unavailable

3

Cover, Head

5630527-093

Unavailable

4

Screw

7517352

Unavailable

5

O-Ring

5410917

$1.49

6

Ring, Head

5241944

Unavailable

7

Head, Cylinder

3021122

Unavailable

8

O-Ring

5411573

Unavailable

9

O-Ring

5412232

$7.99

10

NUT

7547021

$6.99

11

Cylinder

3021017

Unavailable

12

Gasket, Cylinder Base

5811784

$8.89

13

Asm., Valve, Reed

1201825

$134.99

14

Stuffer, Reed Block

5433151

Unavailable

15

Screw

7516814

Unavailable

16

Screw

7516807

Unavailable

17

Manifold, Intake

5630529-329

Unavailable

18

Gasket, Carb

5830043

Unavailable

19

Gasket, Carb, Upper

5830062

Unavailable

20

Adaptor, Flame Arrestor

5133810

Unavailable

21

SCREW

7516406

Unavailable
