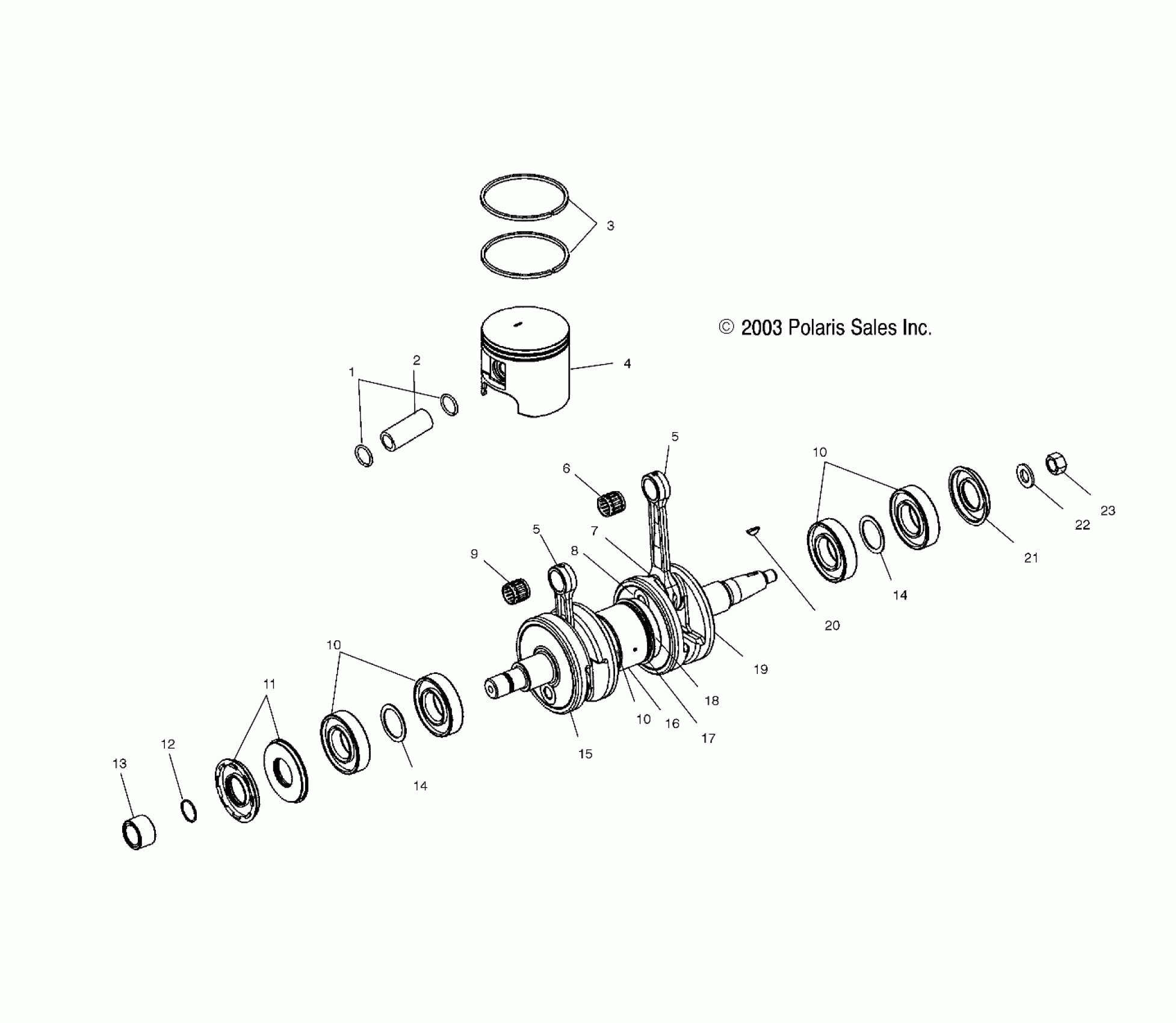

Polaris OCTANE - W045402DA CRANKSHAFT and PISTON - W045402DA (4990599059B10) Diagram

#

Description
Price

-

Kit, Crankshaft [Incl. 10,14-20]

2201844

Unavailable

1

Circlip, Piston

3022950

Unavailable

2

Pin, Piston

3021091

Unavailable

3

Kit, Piston Rings, Std. [2 Rings]

2201449

Unavailable

3

Kit, Piston Rings, .25mm OS

2201450

Unavailable

3

Kit, Piston Rings, .50 mm OS

2201451

Unavailable

4

Kit, Piston, Std. [Incl.1-3]

2201706

Unavailable

4

Kit, Piston, .25 mm OS [Incl.1-3]

2201707

Unavailable

4

Kit, Piston, .50 mm OS [Incl.1-3]

2201708

Unavailable

5

Kit, Connecting Rod [Incl. 7-9]

2202440

Unavailable

5

Kit, Connecting Rod [Incl. 7-9]

2202440

Unavailable

6

Bearing [If built after 10/15/03)

3514357

$23.99

6

Bearing [If built before 10/15/03)

3552112

Unavailable

7

Washer, Thrust

-------

Unavailable

8

PIN, CRANKSHAFT

-------

Unavailable

9

BEARING, CONNECTING ROD, LOWER

-------

Unavailable

10

Bearing, Ball

3585503

$31.99

10

Bearing, Ball

3585503

$31.99

10

Bearing, Ball

3585503

$31.99

11

Seal, Flange

5412091

$29.99

12

O-RING

5410613

$1.99

13

Collar, Crankshaft

5131195

Unavailable

14

Bushing

7555905

$3.99

14

Bushing

7555905

$3.99

15

Crankweb, PTO

5132546

Unavailable

16

Crankweb, Center

5132545

Unavailable

17

Labyrinth

5131086

Unavailable

18

BEARING, BALL

3514318

$43.99

19

Crankweb, Magneto

5132543

Unavailable

20

KEY, WOODRUFF

7721117

$24.99

21

Seal

3610044

$24.27

22

WASHER [SEE MAGNETO PG. B12, REF. 3]

-------

Unavailable

23

NUT, HEX [SEE MAGNETO PG. B12, REF. 2]

-------

Unavailable
