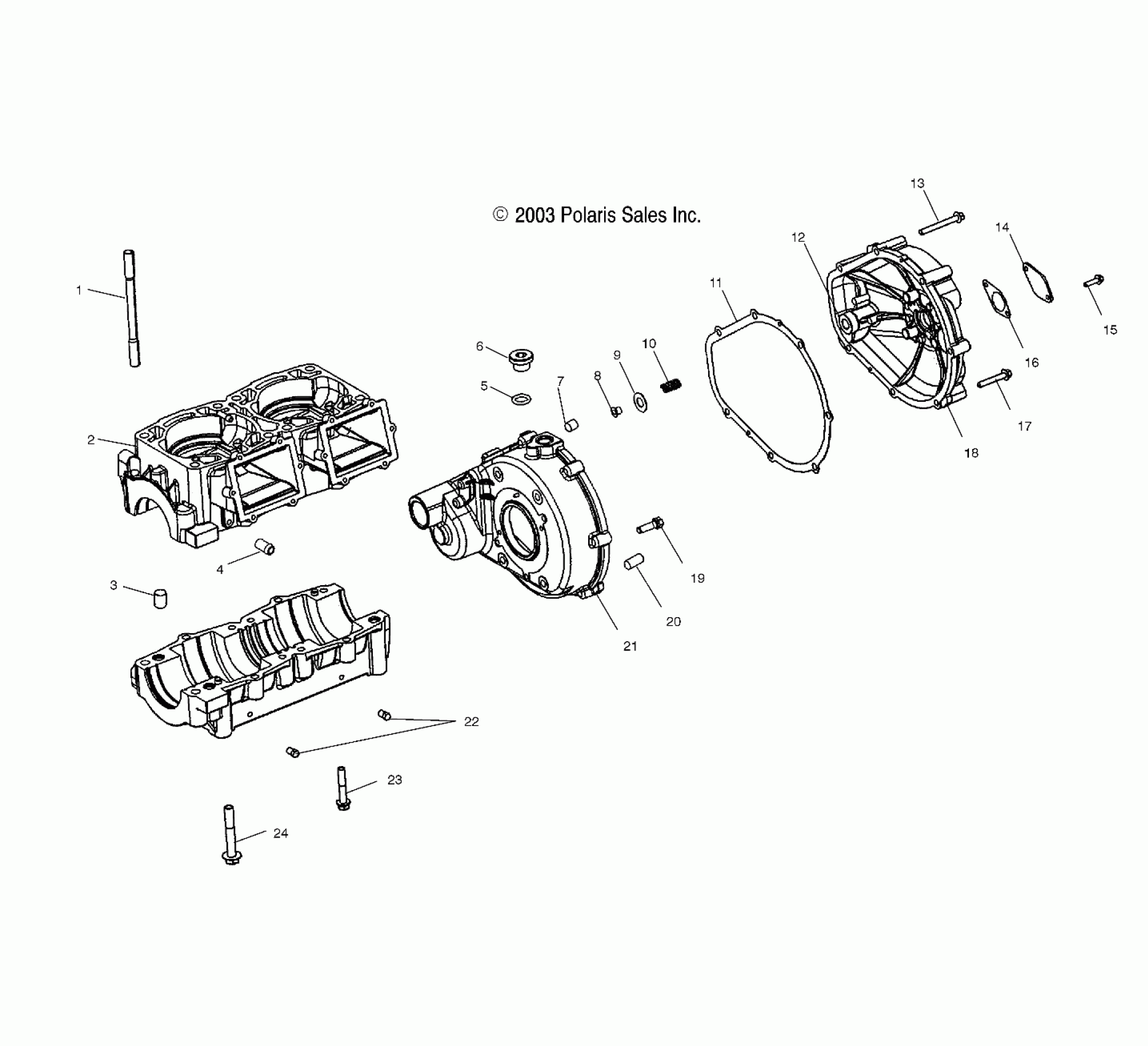

Polaris OCTANE - W045402DA CRANKCASE - W045402DA (4990599059B08) Diagram

#

Description
Price

1

Stud, Cylinder Flange

5131677

Unavailable

2

Kit, Crankcase [Incl. 1-4,22-24]

2201804

Unavailable

3

PIN-DOWEL,M8 X 16 SS

7663001

$11.11

4

Fitting, Straight

7052145

$9.52

5

O-Ring

5411564

$4.03

6

Plug, Hole, Timing

5433820

$24.27

7

Bushing

3514378

$12.30

8

Bushing

3574214

$5.00

9

Washer, Thrust

7555908

$3.17

10

Spring

7041457

Unavailable

11

Gasket, Flywheel Cover

5811550

Unavailable

12

Bushing

3569806

Unavailable

13

Screw

7517676

Unavailable

14

Cover, Oil Pump Mount

5246401

Unavailable

15

Screw

7516605

Unavailable

16

Gasket, Oil Pump

5811789

$12.94

17

Screw

7516806

Unavailable

18

Asm., Flywheel Cover [Incl. 12]

1201923

$90.48

19

Screw

7516723

Unavailable

20

Pin, Dowel

7663002

$4.76

21

Asm., Flywheel Housing [Incl. 7,20]

1201938

$163.49

22

Plug

7051529

Unavailable

23

Screw

7517628

Unavailable

24

Screw

7516913

Unavailable
