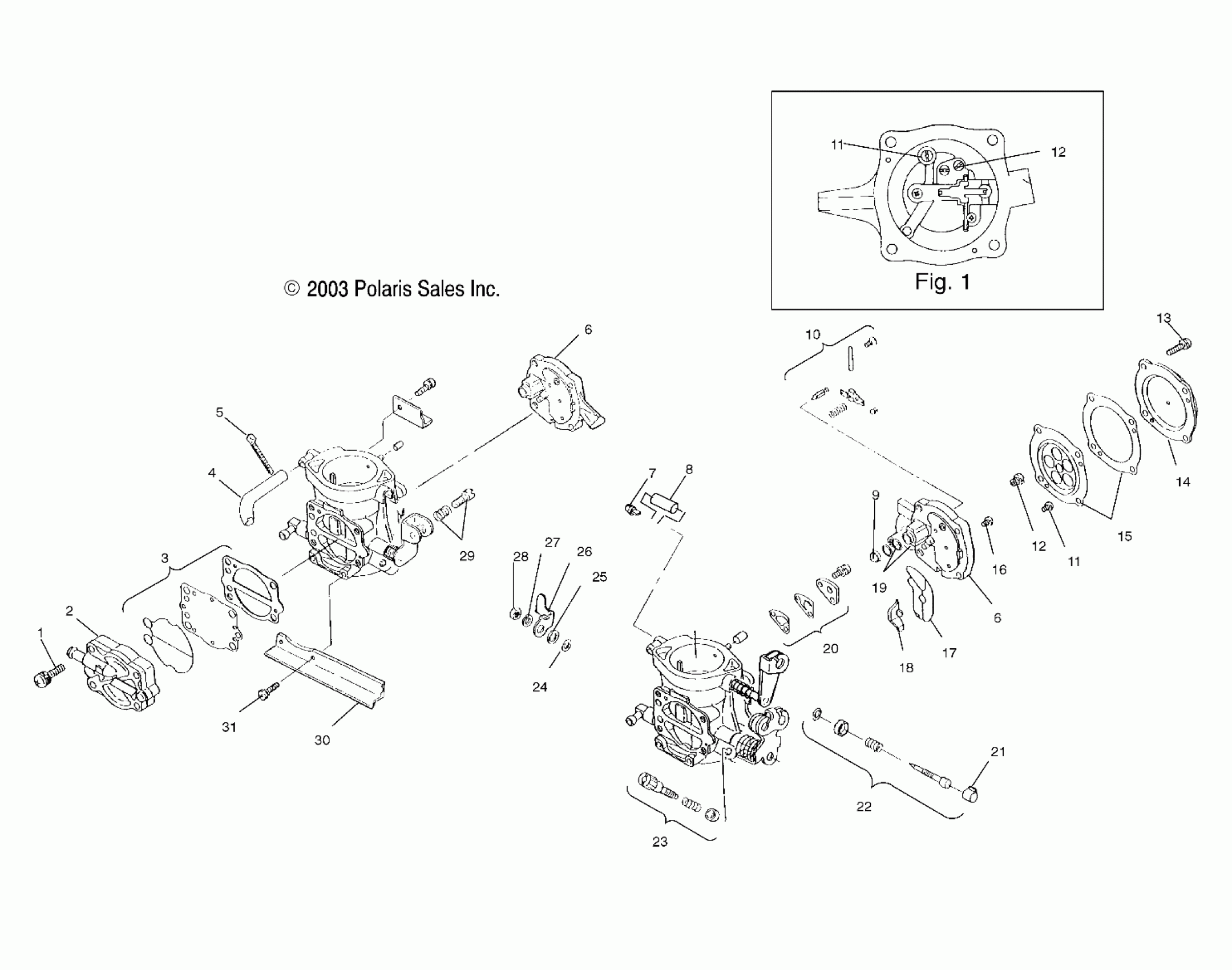

Polaris OCTANE - W045402DA CARBURETOR - W045402DA (4990599059B11) Diagram

#

Description
Price

-

Asm., Carb

1253202

$579.99

-

Kit, Carb Rebuild [Incl. 10,15]

2200788

Unavailable

1

Screw, Fuel Pump

3050136

Unavailable

2

Kit, Fuel Pump Body

2200687

Unavailable

3

Kit, Gasket, Fuel Pump

2200686

Unavailable

4

Hose, Fuel

3050143

Unavailable

5

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

6

Jet, Block, Rear

3050146

Unavailable

6

Jet, Block, Rear

3050146

Unavailable

7

Joint, Connecting

3050156

$26.19

8

Tube, Rubber

3050157

Unavailable

9

Screen, Fuel Strainer

3050144

Unavailable

10

Kit, Needle Valve [1 Per Carb]

2200733

Unavailable

11

Jet, Main #140 [Per Carb]

3050186

$8.98

11

Jet, Main #140 [Per Carb]

3050186

$8.98

12

Jet, Pilot ,#68

3050129

$7.24

12

Jet, Pilot ,#68

3050129

$7.24

13

Screw, Jet Block Cover

3050135

Unavailable

14

Cover, Jet Block

3050139

$45.24

15

Kit, Diaphragm, Jet Block [Per Carb]

2200730

Unavailable

16

Screw, Jet Block

3050137

$3.98

17

O-Ring, Jet Block

3050147

Unavailable

18

Collar

3050138

Unavailable

19

O-Ring, Valve Seat

3050148

Unavailable

20

Kit, Check Valve [1 Per Carb]

2200688

$34.21

21

Cap, Limiter

3050140

Unavailable

22

Kit, Main Mixture Screw [1 Per Carb]

2200690

Unavailable

23

Kit, Idle Stop Screw

2200731

$27.92

24

E-Clip

3050158

Unavailable

25

Washer, Plain

3050152

Unavailable

26

Lever, Synchronizing

3050153

Unavailable

27

Washer, Lock

3050154

Unavailable

28

Nut, Throttle Shaft

3050155

Unavailable

29

Kit, Synchronizing Screw

2200734

Unavailable

30

Plate, Connecting

3050160

Unavailable

31

Screw, Connecting Plate

3050159

Unavailable
