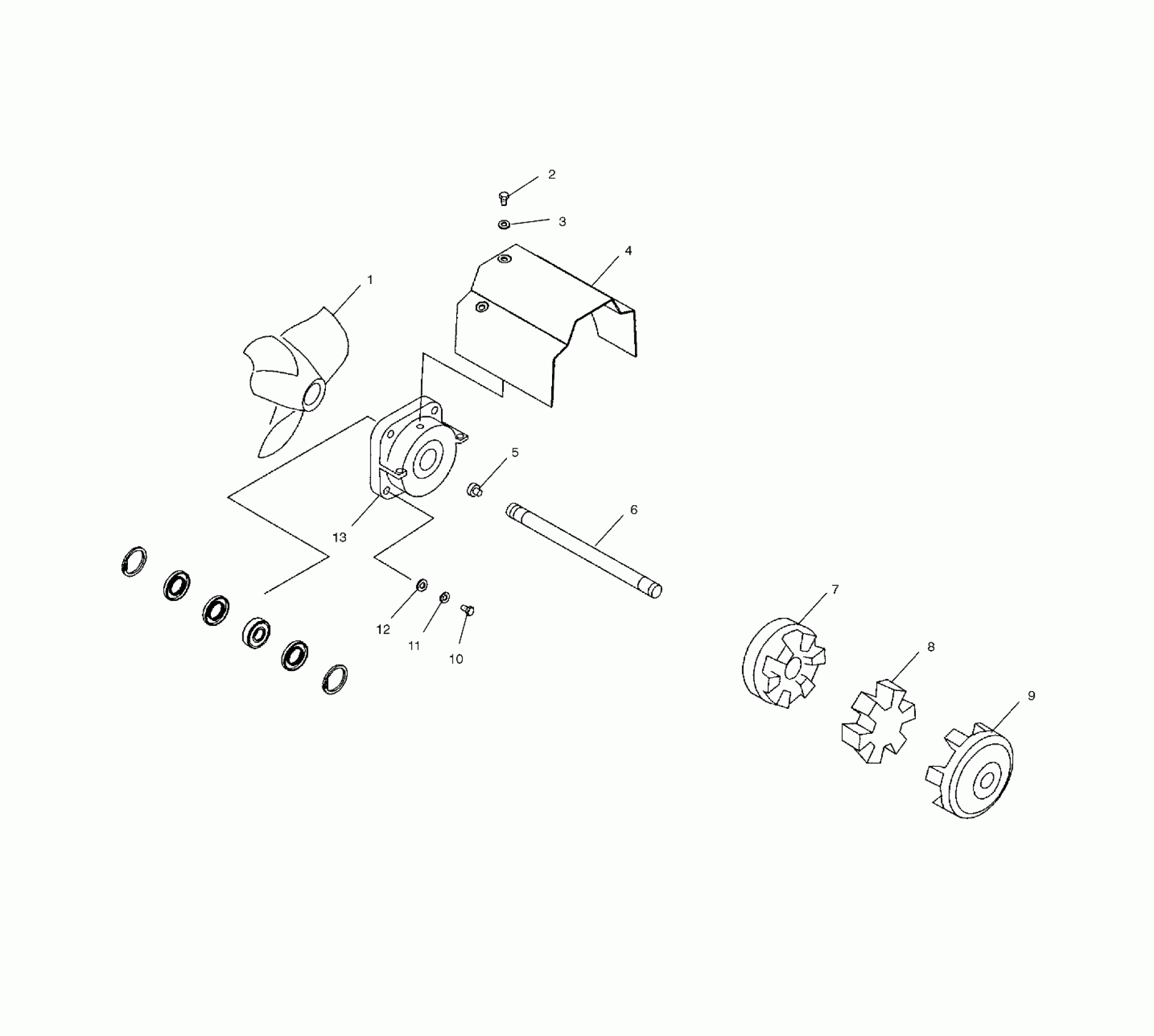

Polaris OCTANE - W035402DA DRIVE SYSTEM - W035402DA (4981108110A10) Diagram

#

Description
Price

1

IMPELLER [SEE PROPULSION PG. A11, REF. 12]

----

Unavailable

2

Screw

7517717

$1.11

3

Washer, Lock

7552613

Unavailable

4

Shroud, Coupler

5246722

$98.38

5

Bumper, Drive Shaft

5410663

Unavailable

6

Shaft, Drive

6230254

Unavailable

7

Coupler, Drive Shaft

5133521

$135.71

8

Cushion, Drive

5521605

$139.99

9

Coupler, PTO

5133522

Unavailable

10

Screw

7517668

$2.06

11

Washer, Lock

7556055

Unavailable

12

Washer, Flat

7555835

$0.69

13

PIN-DOWEL,M6X10

5132835

$2.38

13

BEARING

3514308

$17.44

13

Asm., Bearing Housing

5631309

$408.73

13

Seal

3514419

Unavailable

13

Ring, Retaining

5246587

$4.76
