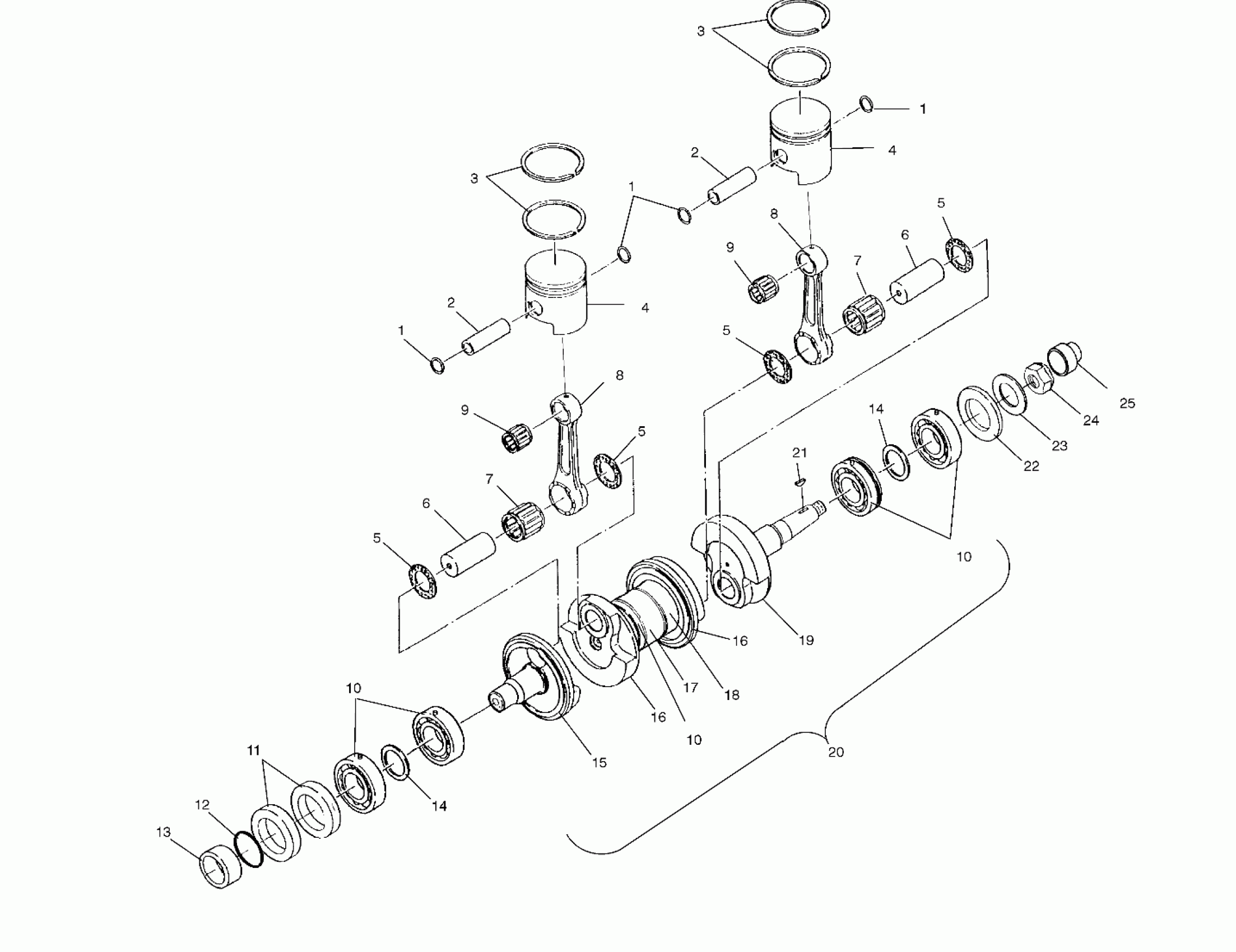

Polaris OCTANE - W035402DA CRANKSHAFT and PISTON - W035402DA (4981108110B10) Diagram

#

Description
Price

1

Circlip, Piston

3022950

Unavailable

1

Circlip, Piston

3022950

Unavailable

1

Circlip, Piston

3022950

Unavailable

2

Pin, Piston

3021091

Unavailable

2

Pin, Piston

3021091

Unavailable

3

Kit, Piston Rings [Std.][2 Rings]

2201449

Unavailable

3

Kit, Piston Rings [.25mm OS]

2201450

$85.54

3

Kit, Piston Rings [.50 mm OS]

2201451

$108.24

3

Kit, Piston Rings [Std.][2 Rings]

2201449

Unavailable

3

Kit, Piston Rings [.25mm OS]

2201450

$85.54

3

Kit, Piston Rings [.50 mm OS]

2201451

$108.24

4

Kit, Piston Asm. [Std.][Incl.1,2,3]

2201706

$185.99

4

Kit, Piston Asm. [.25 mm OS][Incl.1,2,3]

2201707

$140.16

4

Kit, Piston Asm. [.50 mm OS][Incl.1,2,3]

2201708

$226.99

4

Kit, Piston Asm. [Std.][Incl.1,2,3]

2201706

$185.99

4

Kit, Piston Asm. [.25 mm OS][Incl.1,2,3]

2201707

$140.16

4

Kit, Piston Asm. [.50 mm OS][Incl.1,2,3]

2201708

$226.99

5

Washer, Thrust

----

Unavailable

5

Washer, Thrust

----

Unavailable

5

Washer, Thrust

----

Unavailable

5

Washer, Thrust

----

Unavailable

6

PIN, CRANKSHAFT

----

Unavailable

6

PIN, CRANKSHAFT

----

Unavailable

7

BEARING, CONNECTING ROD

----

Unavailable

7

BEARING, CONNECTING ROD

----

Unavailable

8

Kit, Connecting Rod Assembly [Incl. 5-7]

2201557

$211.74

8

Kit, Connecting Rod Assembly [Incl. 5-7]

2201557

$211.74

9

Bearing, Connecting Rod [20mm]

3552112

Unavailable

9

Bearing, Connecting Rod [20mm]

3552112

Unavailable

10

Bearing, Ball

3585503

$31.75

10

Bearing, Ball

3585503

$31.75

10

Bearing, Ball

3585503

$31.75

11

Seal

5411937

$29.99

12

O-RING

5410613

$1.98

13

Collar, Crankshaft

5131195

Unavailable

14

Bushing

7555905

$3.99

14

Bushing

7555905

$3.99

15

Crankweb, PTO

5132546

Unavailable

16

Crankweb, Center

5132545

Unavailable

16

Crankweb, Center

5132545

Unavailable

17

Labyrinth

5131086

Unavailable

18

Bearing

3514318

$52.37

19

Crankweb, Mag.

5132543

Unavailable

20

Kit, Crankshaft [Incl. 10,14-19,21]

2201844

Unavailable

21

KEY, WOODRUFF

7721117

$29.99

22

Seal

3610044

$24.27

23

WASHER [SEE MAGNETO PG. B12, REF. 3]

----

Unavailable

24

NUT, PUMP DRIVE [SEE MAGNETO PG. B12, REF. 2]

----

Unavailable

25

Coupler

5432576

Unavailable
