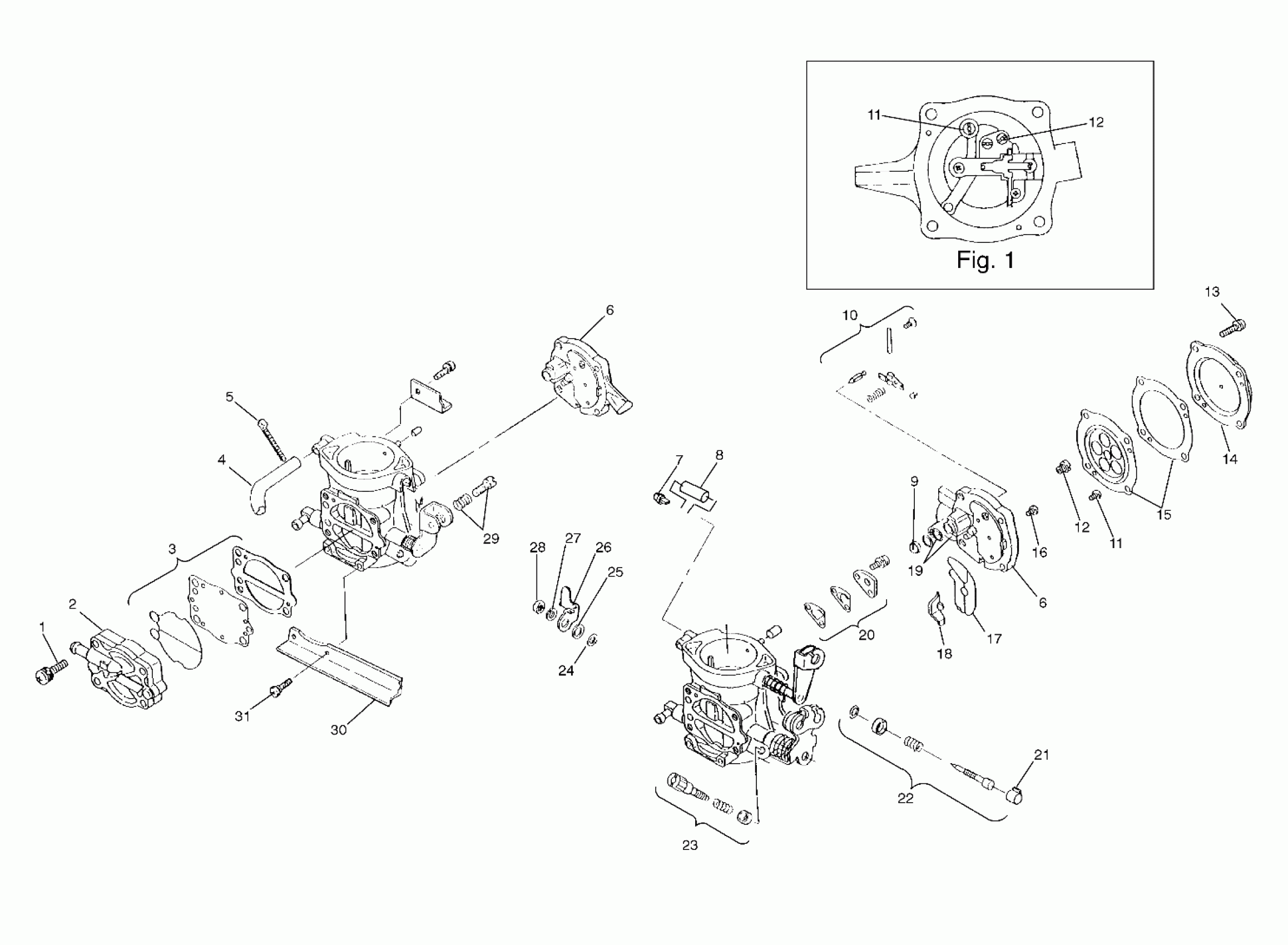

Polaris OCTANE - W035402DA CARBURETOR - W035402DA (4981108110B11) Diagram

#

Description
Price

-

Asm., Carb

1253202

$579.99

-

Kit - Carb Rebuild [Incl. 10,15]

2200788

Unavailable

1

Screw, Fuel Pump

3050136

Unavailable

2

Kit - Fuel Pump Body

2200687

Unavailable

3

Kit - Gasket, Fuel Pump

2200686

Unavailable

4

Hose, Fuel

3050143

Unavailable

5

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

6

Jet, Block

3050146

Unavailable

6

Jet, Block

3050146

Unavailable

7

Joint, Connecting

3050156

$26.19

8

Tube, Rubber

3050157

Unavailable

9

Screen, Fuel Strainer

3050144

Unavailable

10

Kit - Needle Valve [1 Per Carb]

2200733

Unavailable

11

Jet, Main [Per Carb] #140

3050186

$8.98

11

Jet, Main [Per Carb] #140

3050186

$8.98

12

Jet, Pilot ,68, Keihin

3050129

$7.24

12

Jet, Pilot ,68, Keihin

3050129

$7.24

13

Screw, Jet Block Cover

3050135

Unavailable

14

Cover, Jet Block

3050139

$45.24

15

Kit - Diaphragm, Jet Block [Per Carb]

2200730

Unavailable

16

Screw, Jet Block

3050137

$3.98

17

O-Ring, Jet Block

3050147

Unavailable

18

Collar

3050138

Unavailable

19

O-Ring, Valve Seat

3050148

Unavailable

20

Kit - Check Valve [1 Per Carb]

2200688

$34.21

21

Cap, Limiter

3050140

Unavailable

22

Kit - Main Mixture Screw [1 Per Carb]

2200690

Unavailable

23

Kit - Idle Stop Screw

2200731

$27.92

24

E-Clip

3050158

Unavailable

25

Washer, Plain

3050152

Unavailable

26

Lever, Synchronizing

3050153

Unavailable

27

Washer, Lock

3050154

Unavailable

28

Nut, Throttle Shaft

3050155

Unavailable

29

Kit - Synchronizing Screw

2200734

Unavailable

30

Plate, Connecting

3050160

Unavailable

31

Screw, Connecting Plate

3050159

Unavailable
