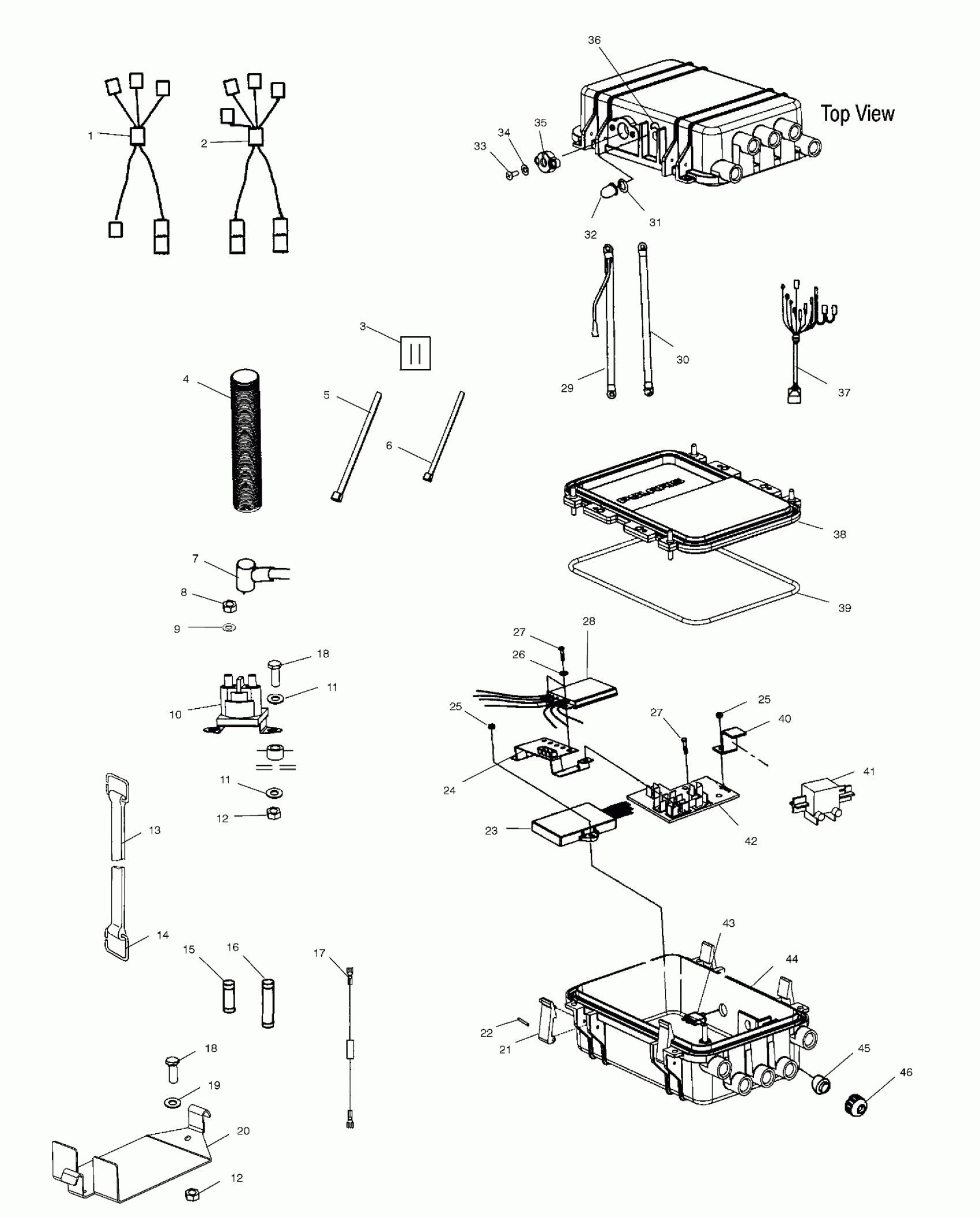

Polaris OCTANE - W025402D ELECTRICAL BOX - W025402D (4980948094B05) Diagram

#

Description
Price

1

Harness, Circuit Breaker/Solenoid

2461087

Unavailable

2

Harness, Start/Stop

2461091

Unavailable

3

Anchor, Cable Tie

7080464

Unavailable

4

Conduit, Flex

5521287-53

Unavailable

5

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

6

Cable Tie

7080483

Unavailable

7

INSULATOR-CABLE

5410346

$6.39

8

Nut

7546705

$4.79

9

Washer, Lock

7552613

Unavailable

10

Solenoid, Starter

4010401

Unavailable

11

Washer, Flat

7555839

Unavailable

11

Washer, Flat

7555839

Unavailable

12

NUT-6 MM X 1.00-NYLOK-SS

7546704

$1.75

12

NUT-6 MM X 1.00-NYLOK-SS

7546704

$1.75

13

Strap, Battery Holddown

5411456

Unavailable

14

D-Hook

5224472

$2.19

15

Fuse, 3 Amp

4060161

Unavailable

16

Fuse, 1/4 Amp

4060111

Unavailable

17

Harness, Jumper

2460928

Unavailable

18

Screw

7517669

Unavailable

18

Screw

7517669

Unavailable

19

Washer

7555882

$2.07

20

Bracket, E-Box

5246395

Unavailable

21

Latch

5432503

Unavailable

22

Pin, Latch

5333544

Unavailable

23

CDI, Programmed

4010568

Unavailable

24

Asm., Grounding Strap w/Fuses

2410250

Unavailable

25

Nut, Nylok

7547061

Unavailable

25

Nut, Nylok

7547061

Unavailable

26

Washer, Flat

7555837

Unavailable

27

Screw

7512042

$2.62

27

Screw

7512042

$2.62

28

Regulator

4010387

Unavailable

29

Cable, Battery/Solenoid

4010756

Unavailable

30

Cable, Solenoid/Starter

4010237

Unavailable

31

O-Ring

5411491

Unavailable

32

Boot, Threaded

7080461

Unavailable

33

Screw

7515113

Unavailable

34

Washer, Flat

7555836

$3.99

35

Plate, Stator

5432574

Unavailable

36

Decal, Electrical Box Reset

7073734

Unavailable

37

Harness, 8 Wire Stator

2460718

Unavailable

38

Cover, Electrical Box

5433119

Unavailable

39

Seal

5432569

Unavailable

40

Bracket, Coil

5244370

Unavailable

41

Coil, Ignition

4010175

Unavailable

42

Asm., Terminal Board

2410202

$18.25

43

Breaker, Circuit

2434011

Unavailable

44

Asm., Electrical Box, Ignition [Incl. 21,22,38,39]

2632137

Unavailable

45

Grommet, Solid

5411235

Unavailable

46

Cap

5432502

Unavailable
