CRANKSHAFT and PISTON - W025402D (4980948094B10)

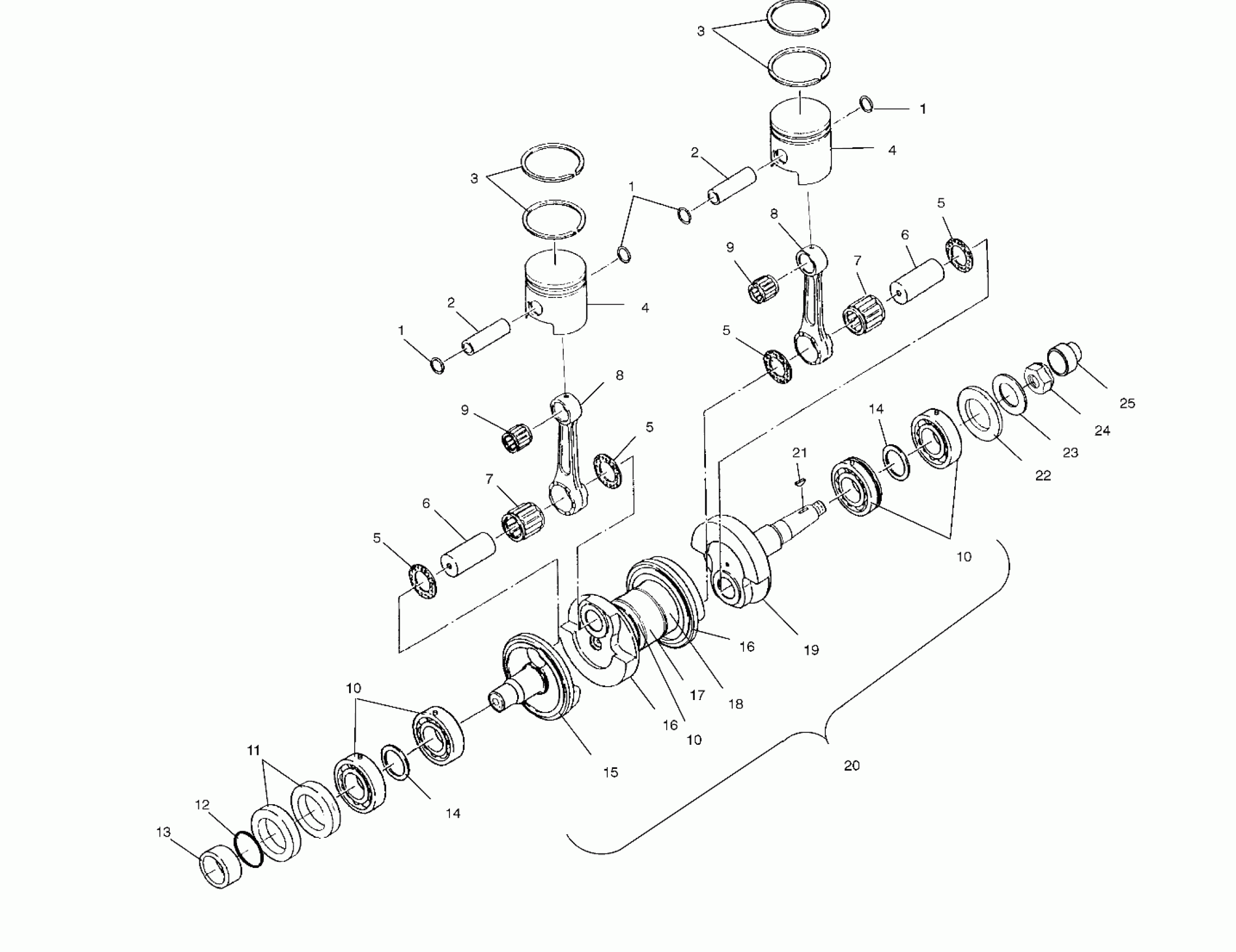

Polaris OCTANE - W025402D CRANKSHAFT and PISTON - W025402D (4980948094B10) Diagram
#
1
Circlip, Piston
3022950
Unavailable
1
Circlip, Piston
3022950
Unavailable
1
Circlip, Piston
3022950
Unavailable
2
Pin, Piston
3021091
Unavailable
2
Pin, Piston
3021091
Unavailable
3
Kit, Piston Rings [Std.][2 Rings]
2201449
Unavailable
3
Kit, Piston Rings [.25mm OS]
2201450
Unavailable
3
Kit, Piston Rings [.50 mm OS]
2201451
Unavailable
3
Kit, Piston Rings [Std.][2 Rings]
2201449
Unavailable
3
Kit, Piston Rings [.25mm OS]
2201450
Unavailable
3
Kit, Piston Rings [.50 mm OS]
2201451
Unavailable
4
Kit, Piston Asm. [Std.][Incl.1,2,3]
2201706
Unavailable
4
Kit, Piston Asm. [.25 mm OS][Incl.1,2,3]
2201707
Unavailable
4
Kit, Piston Asm. [.50 mm OS][Incl.1,2,3]
2201708
Unavailable
4
Kit, Piston Asm. [Std.][Incl.1,2,3]
2201706
Unavailable
4
Kit, Piston Asm. [.25 mm OS][Incl.1,2,3]
2201707
Unavailable
4
Kit, Piston Asm. [.50 mm OS][Incl.1,2,3]
2201708
Unavailable
5
Washer, Thrust
-------
Unavailable
5
Washer, Thrust
-------
Unavailable
5
Washer, Thrust
-------
Unavailable
5
Washer, Thrust
-------
Unavailable
6
PIN, CRANKSHAFT
-------
Unavailable
6
PIN, CRANKSHAFT
-------
Unavailable
7
BEARING, CONNECTING ROD
-------
Unavailable
7
BEARING, CONNECTING ROD
-------
Unavailable
8
Kit, Connecting Rod Assembly [Incl. 5-7]
2201557
$307.99
8
Kit, Connecting Rod Assembly [Incl. 5-7]
2201557
$307.99
9
BEARING, CONNECTING ROD [20 MM]
3552112
Unavailable
9
BEARING, CONNECTING ROD [20 MM]
3552112
Unavailable
10
Bearing, Ball
3585503
$31.99
10
Bearing, Ball
3585503
$31.99
10
Bearing, Ball
3585503
$31.99
11
Seal
5411937
Unavailable
12
O-RING
5410613
$1.99
13
Collar, Crankshaft
5131195
Unavailable
14
Bushing
7555905
$3.99
14
Bushing
7555905
$3.99
15
Crankweb, PTO
5132546
Unavailable
16
Crankweb, Center
5132545
Unavailable
16
Crankweb, Center
5132545
Unavailable
17
Labyrinth
5131086
Unavailable
18
Bearing
3514318
$43.99
19
Crankweb, Mag.
5132543
Unavailable
20
Kit, Crankshaft [Incl. 10,14-19,21]
2201844
Unavailable
21
KEY, WOODRUFF
7721117
$24.99
22
Seal
3610044
$24.27
23
WASHER [SEE MAGNETO PG. B12, REF. 3]
-------
Unavailable
24
NUT, PUMP DRIVE [SEE MAGNETO PG. B12, REF. 2]
-------
Unavailable
25
Coupler
5432576
Unavailable
