ENGINE, OIL SYSTEM - V17FTA/FTB ALL OPTIONS (800206)

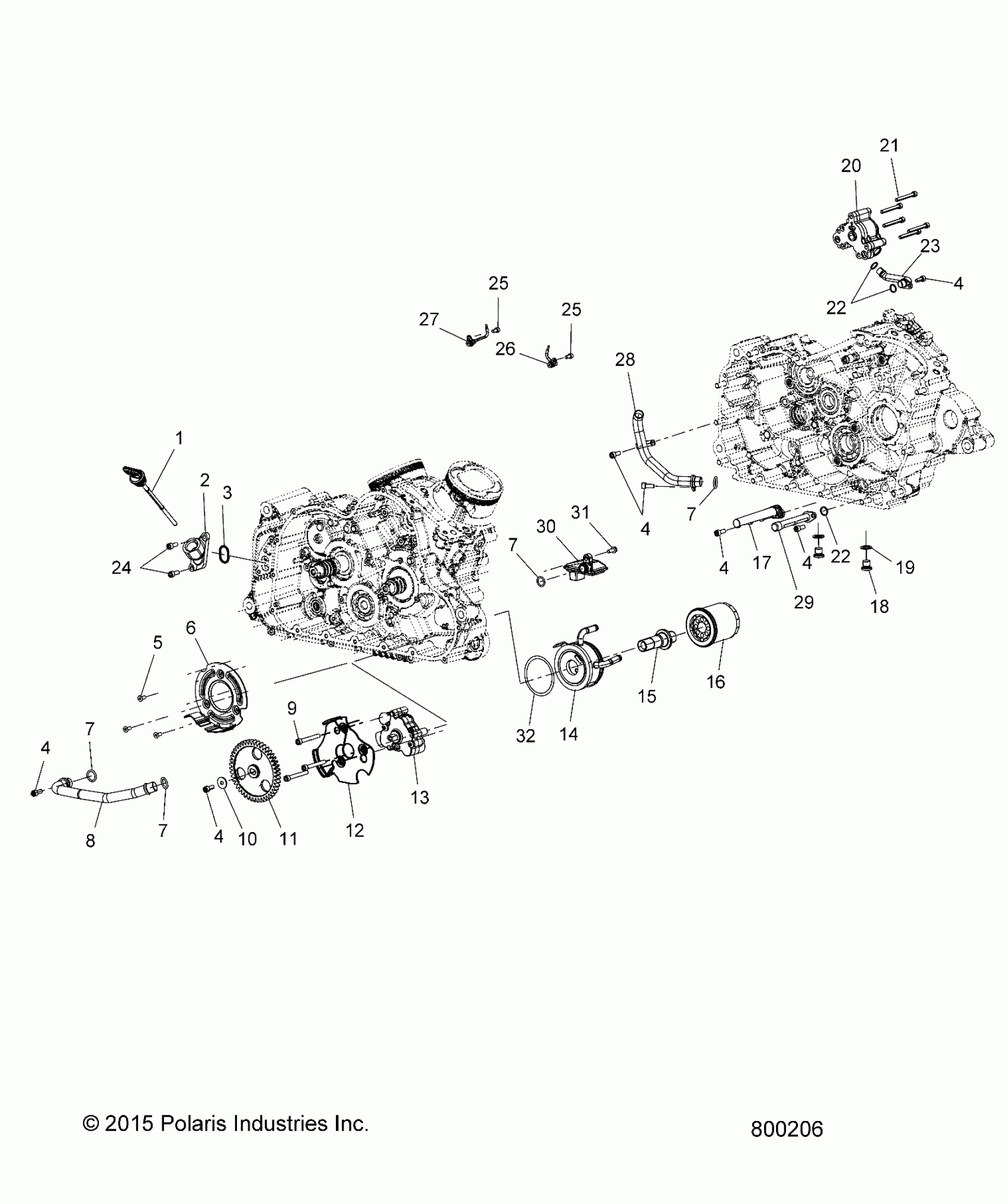

Polaris OCTANE ALL OPTIONS (R06) - V17FTA/FTB ENGINE, OIL SYSTEM - V17FTA/FTB ALL OPTIONS (800206) Diagram
#
-
PLATE, OIL DEFLECTOR
5259394
Unavailable
1
DIPSTICK, VICTORY
5452512
Unavailable
1
DIPSTICK, VICTORY
5452512
Unavailable
2
ADAPTER, DIPSTICK, CB BLK
5139173-657
Unavailable
3
SEAL, DIPSTICK ADAPTER
5415005
Unavailable
4
SCREW
7517775
Unavailable
4
SCREW
7517775
Unavailable
4
SCREW
7517775
Unavailable
4
SCREW
7517775
Unavailable
4
SCREW
7517775
Unavailable
4
SCREW
7517775
Unavailable
5
SCREW
7518817
$3.99
6
SHIELD-GEAR,CRANK
5258759
Unavailable
7
O-RING
5413837
$4.84
7
O-RING
5413837
$4.84
7
O-RING
5413837
$4.84
7
O-RING
5413837
$4.84
8
TUBE, PRESSURE, OIL INLET
2521510
Unavailable
9
SCREW
7518348
Unavailable
10
WASHER
7556054
$10.39
11
GEAR, OIL PUMP
5451819
Unavailable
12
SHIELD, GEAR, OIL PUMP
5258842
Unavailable
13
ASM., OIL PUMP [INCL. 11]
1205311
Unavailable
14
ASM., OIL COOLER
1205160
Unavailable
15
SPIGOT, OIL COOLER
5139240
Unavailable
16
Filter, Oil
2520799
$11.99
16
FILTER-HD,OIL (3.355) [HD OPTION]
2522498
$15.99
17
SCREEN, OIL INLET, SCAVENGE
2521285
Unavailable
18
PLUG
7052306
$15.37
19
Washer
5812232
$1.59
20
ASM., OIL PUMP, DUAL SCAVENGE
1205329
Unavailable
21
SCREW
7518348
Unavailable
22
O-RING
5414100
$1.49
22
O-RING
5414100
$1.49
23
TUBE, SCAVENGE, INLET
2521479
Unavailable
24
SCREW
7517272
$7.19
25
SCREW
7517847
$3.19
25
SCREW
7517847
$3.19
26
ASM., PISTON, COOLING JET, FRONT
1205134
Unavailable
27
ASM., PISTON, COOLING JET, REAR
1205135
Unavailable
28
TUBE, SCAVENGE, OIL RETURN
2521384
Unavailable
29
PICKUP, SCAVENGE
2521480
Unavailable
30
ASM., OIL PICKUP
2521505
Unavailable
31
SCREW
7520179
Unavailable
32
O-RING [SVC]
5415708
Unavailable
