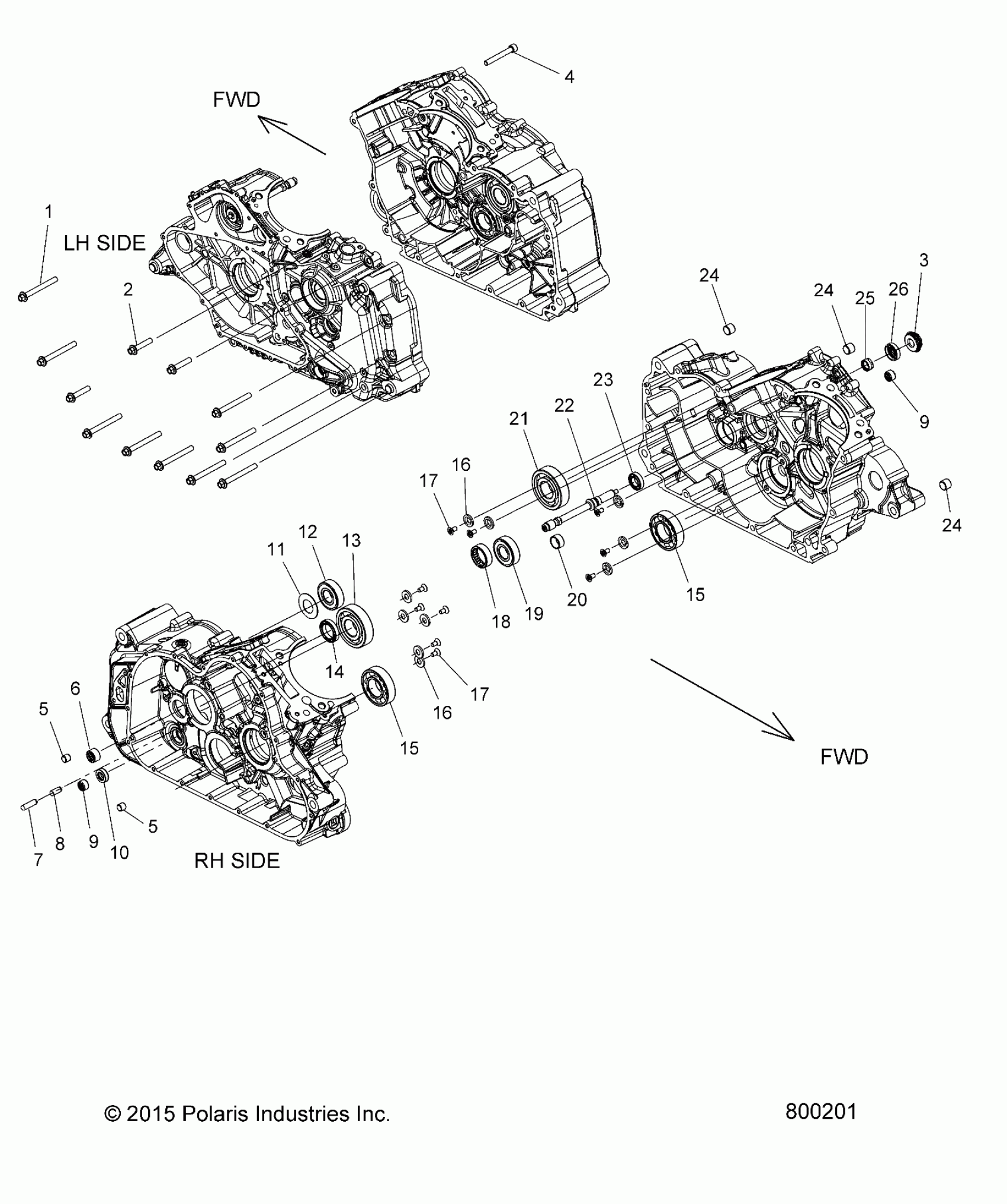

Polaris OCTANE ALL OPTIONS (R06) - V17FTA/FTB ENGINE, CRANKCASE ASM. -V17FTA/FTB ALL OPTIONS (800201) Diagram

#

Description
Price

-

ASM., CRANKCASE, CB BLK [INCL. 1-27]

1205498-657

Unavailable

1

SCREW

7520093

$10.32

2

SCREW

7519947

$5.56

3

SEAL-WATERPUMP SHAFT,WATER

3610173

$15.87

4

SCREW

7520093

$10.32

5

DOWEL, HOLLOW

7663005

$5.22

5

DOWEL, HOLLOW

7663005

$5.22

6

BEARING, NEEDLE

3514802

$19.84

7

PIN, SOLID, M8x30

7661101

$6.10

8

PIN, SOLID, M8x20

7661045

$10.32

9

BEARING,NDL,M12X16X10,CLTSHF

3552105

$21.81

9

BEARING,NDL,M12X16X10,CLTSHF

3552105

$21.81

10

SEAL, SHAFT

3610154

Unavailable

11

PLATE, OIL DEFLECTOR

5259394

$6.46

12

BEARING

3514860

$33.32

13

BEARING, BALL

3514884

$38.08

14

BEARING, BALL

3513511

$30.54

15

BEARING, BALL

3514886

Unavailable

15

BEARING, BALL

3514886

Unavailable

16

PLATE, BEARING RETAINER

5138188

$4.76

16

PLATE, BEARING RETAINER

5138188

$4.76

17

SCREW

7517598

$11.33

17

SCREW

7517598

$11.33

18

BEARING, NEEDLE

3514812

$27.78

19

BEARING, BALL

3514810

Unavailable

20

BEARING, CAM IDLER

3514820

$34.90

21

BEARING, BALL

3514887

$23.81

22

SHAFT, WATER PUMP

5138723

$40.46

23

BEARING, BALL, WP SHAFT

3514878

$33.32

24

DOWEL, HOLLOW

7663005

$5.22

24

DOWEL, HOLLOW

7663005

$5.22

24

DOWEL, HOLLOW

7663005

$5.22

25

NUT, SPECIAL

7547688

$27.78

26

SEAL, SHAFT

3610228

$15.87
