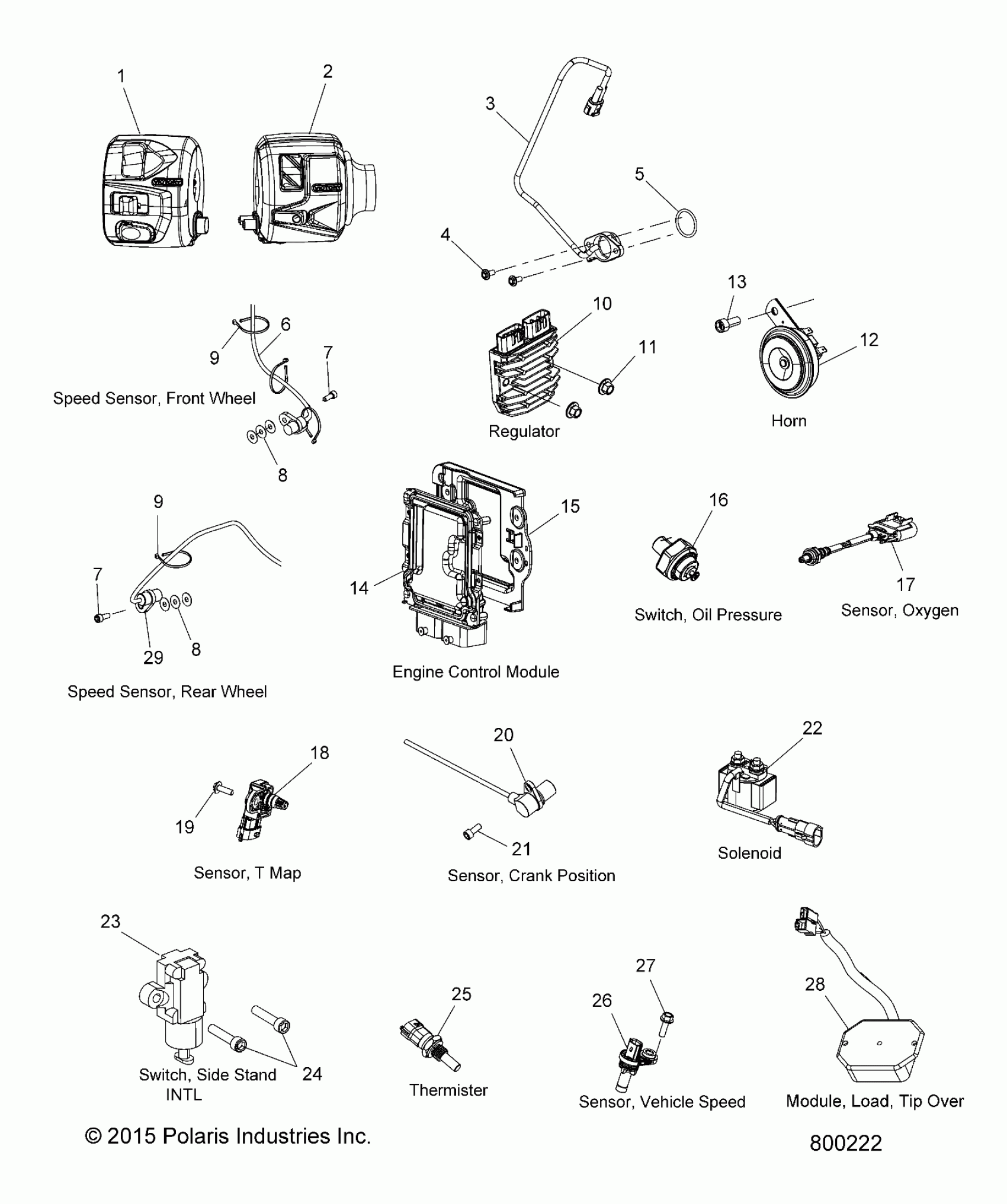

Polaris OCTANE ALL OPTIONS (R06) - V17FTA/FTB ELECTRICAL, COMPONENTS - V17FTA/FTB ALL OPTIONS (800222) Diagram

#

Description
Price

1

CUBE, SWITCH, LH

4014451

Unavailable

2

CUBE, SWITCH,RH

4014452

$295.30

2

CUBE, SWITCH,RH

4014452

$295.30

3

SWITCH, GEAR INDICATOR, N/OD

4013956

$52.60

4

SCREW

7518338

$5.99

5

O-RING

5412530

$1.60

6

SENSOR, WHEEL SPEED

4013251

$242.05

7

SCREW

7517272

$7.84

7

SCREW

7517272

$7.84

8

SHIM

5255106

Unavailable

8

SHIM

5255106

Unavailable

9

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

9

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

10

REGULATOR, 3PH

4012941

$284.99

11

Nut

7710495

$5.22

12

HORN, TRUMPET, LOW TONE

4015840

$29.51

13

SCREW

7517410

$10.99

14

ECM, NO START, ME17 [SVC]

4014125

$749.99

15

MOUNT, ECM

5451843

$32.37

16

SWITCH, OIL PRESSURE

4012668

$44.51

17

SENSOR, OXYGEN

4016021

$169.98

18

SENSOR-TMAP DSS3-TF

2411528

$97.13

19

SCREW

7517277

$3.17

20

SENSOR, CRANK POSITION

4015068

$135.54

21

SCREW

7517272

$7.84

22

SOLENOID

4012017

$80.94

23

SWITCH, SIDE STAND, PLUNGER [INTL. ONLY]

4014289

$64.75

24

SCREW

7516610

$3.97

25

SENSOR-THERMISTER

4010644

$91.97

26

SENSOR, VEHICLE SPEED

4011884

$232.37

27

SCREW

7517750

$10.32

28

MODULE, LOAD/TIP OVER

4015167

Unavailable

29

SENSOR, WHEEL SPEED, REAR

4014216

$256.57
