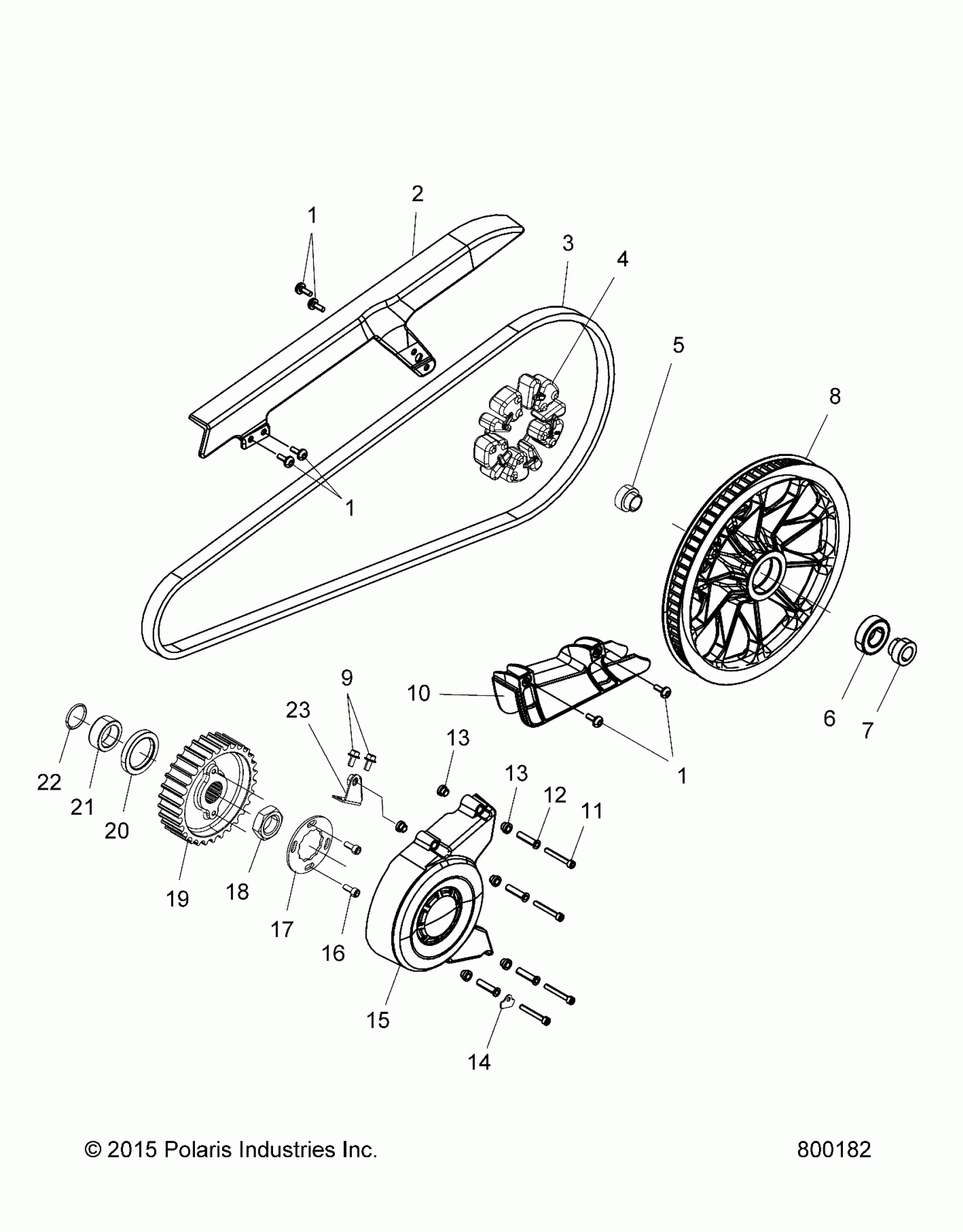

Polaris OCTANE ALL OPTIONS (R06) - V17FTA/FTB DRIVE TRAIN, SPROCKETS, GUARDS and BELT - V17FTA/FTB ALL OPTIONS (800182) Diagram

#

Description

Price

1

SCREW

7519774

Unavailable

1

SCREW

7519774

Unavailable

1

SCREW

7519774

Unavailable

2

GUARD, BELT, UPPER

5452370

Unavailable

3

BELT

3211187

Unavailable

4

PUCK, CUSHDR, LEFT

5414738

Unavailable

5

SPACER, BRNG., INNER

5339699

Unavailable

6

BEARING-RLR, CUSH DRIVE

3514795

Unavailable

7

SPACER, BEARING, SPROCKET, OUTER

5339698

Unavailable

8

ASM., SPROCKET W/BRNG., 71T, BLK [INCL. 6]

1022446-521

Unavailable

9

SCREW-HXFLGHD,M6X12

7517886

$1.59

10

GUARD, BELT, LOWER

5451789

Unavailable

11

SCREW, SH

7520393

Unavailable

12

SPACER

7661185

Unavailable

13

ISOLATOR

5412070

Unavailable

13

ISOLATOR

5412070

Unavailable

14

RETAINER, WIRE, SPROCKET

5258710

Unavailable

15

COVER, OUTER SPROCKET, GBLK

5452806

Unavailable

16

SCREW

7518803

$3.99

17

WASHER, LOCK

5260271

Unavailable

18

NUT, HEX

7547683

Unavailable

19

SPROCKET, DRIVE, 28T

3235557

Unavailable

20

SEAL

3610213

Unavailable

21

SPACER, DRIVE SPROCKET

5139334

Unavailable

22

O-RING

5412530

$1.59

23

BRKT., GUARD MOUNT

1019927

Unavailable
